Wurth Elektronik Steel
- RS Stock No.:
- 176-8149P
- Mfr. Part No.:
- 9774030360R
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal 25 units (supplied on a continuous strip)*
£35.85
(exc. VAT)
£43.025
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7,045 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 45 | £1.434 |
| 50 - 95 | £1.354 |
| 100 - 245 | £1.292 |
| 250 + | £1.228 |
*price indicative
- RS Stock No.:
- 176-8149P
- Mfr. Part No.:
- 9774030360R
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Round Spacer | |
| Material | Steel | |
| Standards/Approvals | REACH Approval: or declared (EC)1907/2006), RoHS Approval: (2011/65/EU&2015/863), Halogen Free: (JEDEC JS709B), Soldering: IPC/JEDEC J-STD-020D, Packaging: IEC 60286-3:2019, Tolerance: DIN ISO 2768-1m, Halogen Free:(IEC 61249-2-21), IPC/JEDEC J-STD-020E | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Round Spacer | ||
Material Steel | ||
Standards/Approvals REACH Approval: or declared (EC)1907/2006), RoHS Approval: (2011/65/EU&2015/863), Halogen Free: (JEDEC JS709B), Soldering: IPC/JEDEC J-STD-020D, Packaging: IEC 60286-3:2019, Tolerance: DIN ISO 2768-1m, Halogen Free:(IEC 61249-2-21), IPC/JEDEC J-STD-020E | ||
- COO (Country of Origin):
- DE

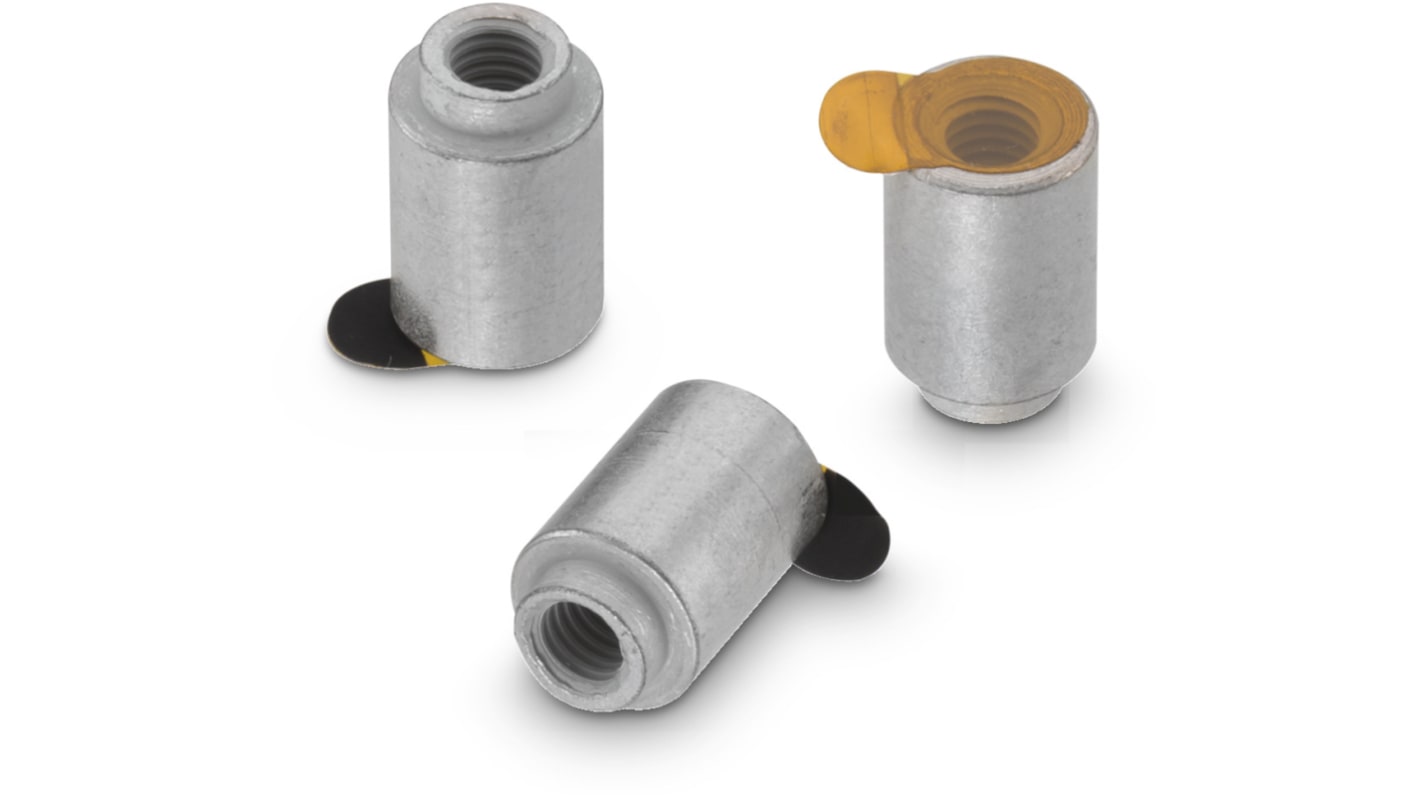

The Wurth Elektronik WA-SMSI is a 3mm, SMT mount, steel spacer with internal thread M3 and a tin surface. It significantly optimizes the assembly process of electromechanical units and is tailor-made for full automation.
RoHS compliant
Halogen free
150 μm solder cream thickness
0.5 N*m tightening torque
Operating temperature ranging between -55°C up to +150 °C
