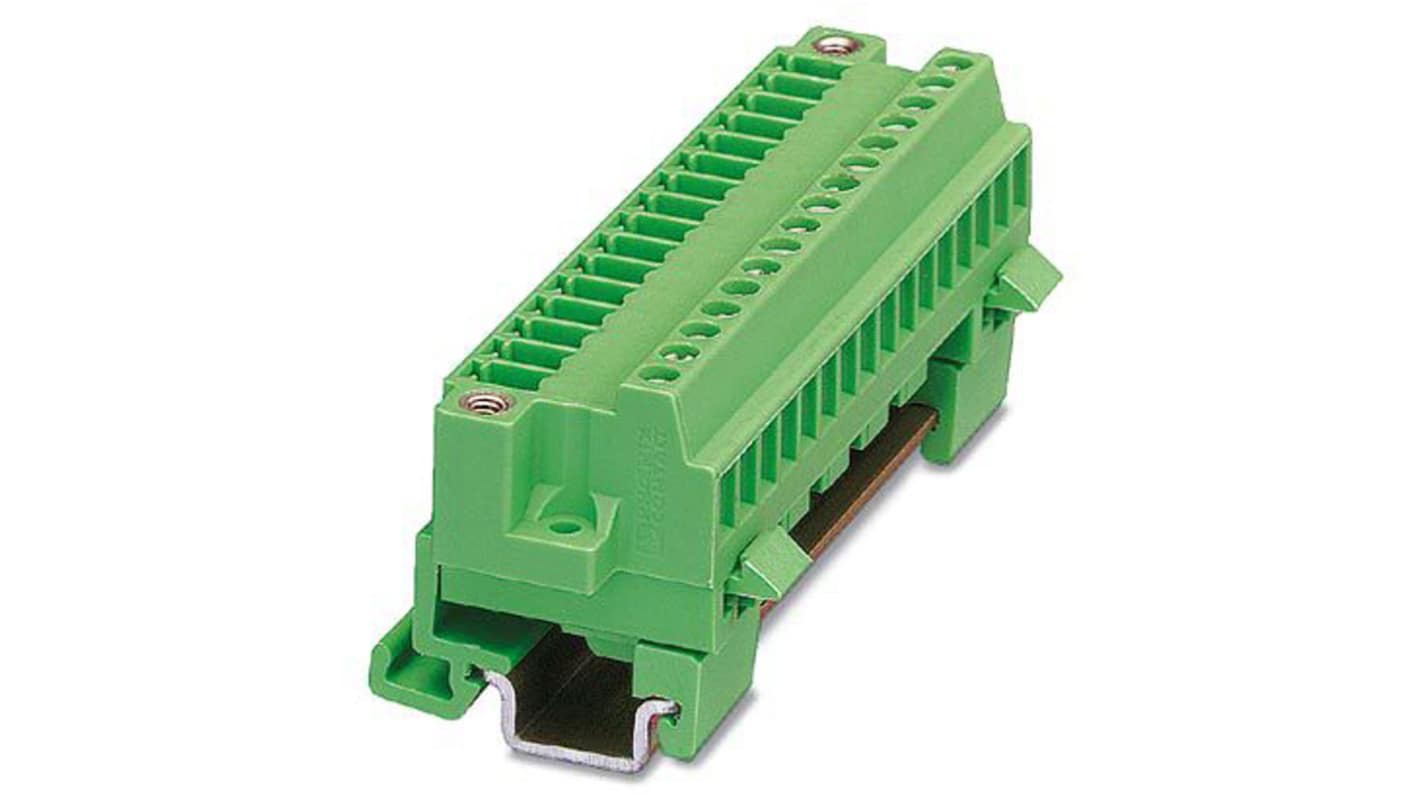

Phoenix Contact MCVK 1.5/15-GF-3.81 Series Straight DIN Rail PCB Socket, 15-Contact, 1 Row, 3.81 mm Pitch Screw

View all PCB Sockets

Subtotal (1 box of 50 units)*

£1,275.95

(exc. VAT)

£1,531.15

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +£25.519£1,275.95

*price indicative

RS Stock No.:
882-1142
Mfr. Part No.:
1833001
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Socket

Number of Contacts

15

Sub Type

PCB Socket

Number of Rows

1

Pitch

3.81mm

Current

12A

Termination Type

Screw

Housing Material

Polyamide

Mount Type

DIN Rail

Orientation

Straight

Connector System

Board-to-Board

Voltage

320 V

Series

MCVK 1.5/15-GF-3.81

Minimum Operating Temperature

-40°C

Contact Gender

Male

Contact Plating

Tin

Contact Material

Copper Alloy

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS

COO (Country of Origin):
PL
DIN rail connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 15, Number of rows: 1, Number of positions per row: 15, number of connections: 15, product range: MCVK 1,5/..-GF, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, mounting: DIN rail, conductor/PCB connection direction: 0 °, Stecksystem: MINI COMBICON, Locking: Screw locking, type of packaging: packed in cardboard
