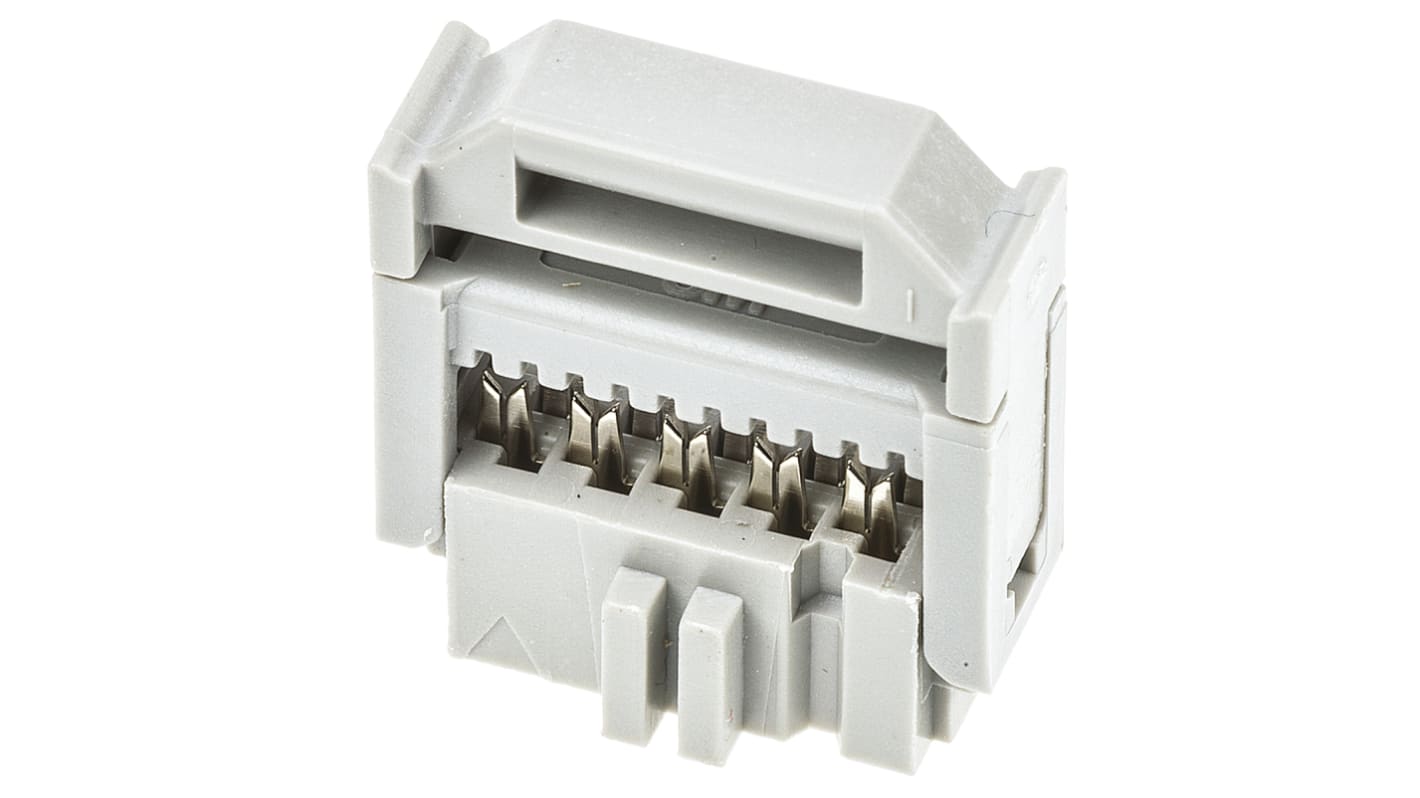

3M 891 Series Right Angle Cable Mount PCB Socket, 10-Contact, 2-Row, 2.54mm Pitch, IDT Termination
- RS Stock No.:
- 749-4792
- Mfr. Part No.:
- 89110-0103
- Brand:
- 3M
Stock information currently inaccessible
- RS Stock No.:
- 749-4792
- Mfr. Part No.:
- 89110-0103
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Right Angle | |
| Termination Method | IDT | |
| Current Rating | 1.25A | |
| Voltage Rating | 1 kV | |
| Series | 891 | |
| Contact Material | Bronze | |
| Contact Plating | Nickel over Gold | |
| Series Number | 891 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Right Angle | ||
Termination Method IDT | ||
Current Rating 1.25A | ||
Voltage Rating 1 kV | ||
Series 891 | ||
Contact Material Bronze | ||
Contact Plating Nickel over Gold | ||
Series Number 891 | ||
- COO (Country of Origin):
- US
3M PCB Socket For Ribbon Cable, 1.25A Current Rating - 891 Series - 89110-0103
Get your plug-in components on board with this right-angle PCB socket from 3M. It comes preassembled so you can put your board together in a jiffy. When it's time to unplug, use optional pull-tab adhesives (827-3622) for quick and simple disconnection. This unit also comes with centre bump polarisation, making it just the thing for correctly mating your components.
• Bumps prevent the latches from locking during shipment
• Wide operating temperature range between -55°C and +105°C for use in demanding conditions
• Glass-filled PE insulation provides protection against EMI for a strong connection
• Wide operating temperature range between -55°C and +105°C for use in demanding conditions
• Glass-filled PE insulation provides protection against EMI for a strong connection
Applications
• Electronic device design
• Research and development
• Research and development
Will this socket take up a lot of room on my PCB?
The socket has compact dimensions of 17.3 (L) x 6.1 (W) x 13.5mm (H), meaningit takes upminimal space on your PCB.
