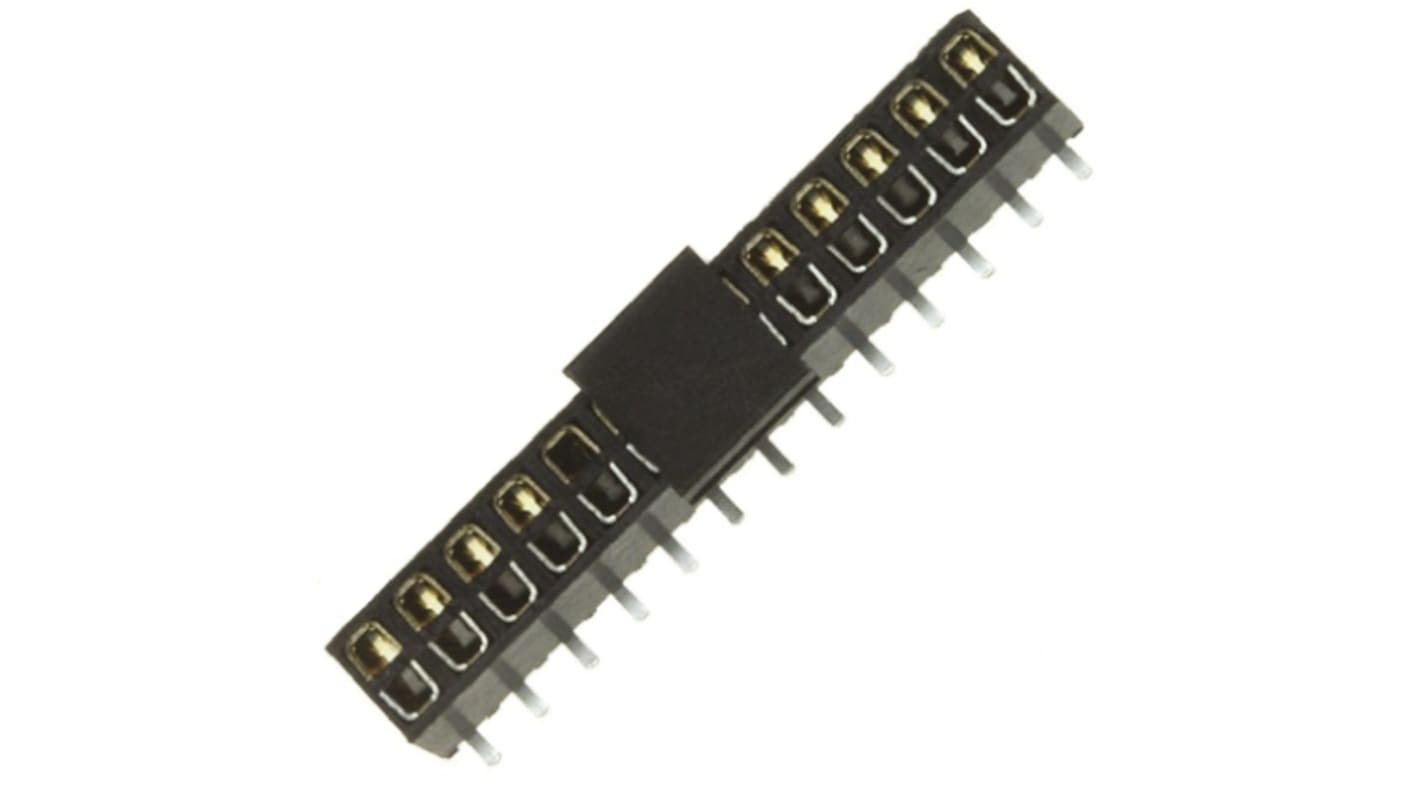

3M 1532 Series Straight Surface Mount PCB Socket, 14-Contact, 2-Row, 2mm Pitch, Solder Termination
- RS Stock No.:
- 749-2645
- Mfr. Part No.:
- 153214-2000-RB-WB
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 749-2645
- Mfr. Part No.:
- 153214-2000-RB-WB
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 14 | |
| Number of Rows | 2 | |
| Pitch | 2mm | |
| Mounting Type | Surface Mount | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Current Rating | 1A | |
| Series | 1532 | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 14 | ||
Number of Rows 2 | ||
Pitch 2mm | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Current Rating 1A | ||
Series 1532 | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Through board socket 1532 series
These 3M 1532 Series Thru-Board SMT Sockets allow the header pins to mate through the PCB which allows the PCB stack height to be reduced. The design of the 1532 Series Thru-Board SMT Socket also allows them to be stacked end to end. The wiping area of the contacts of the 1532 Series Thru-Board SMT Sockets are 30 μ" gold over nickel plated with the PCB solder tails being tin plated.
High temperature dielectric
IR solder compatible
IR solder compatible
Note
Stock number 628-8694 has Board Location Posts.
Approvals
UL; CSA
