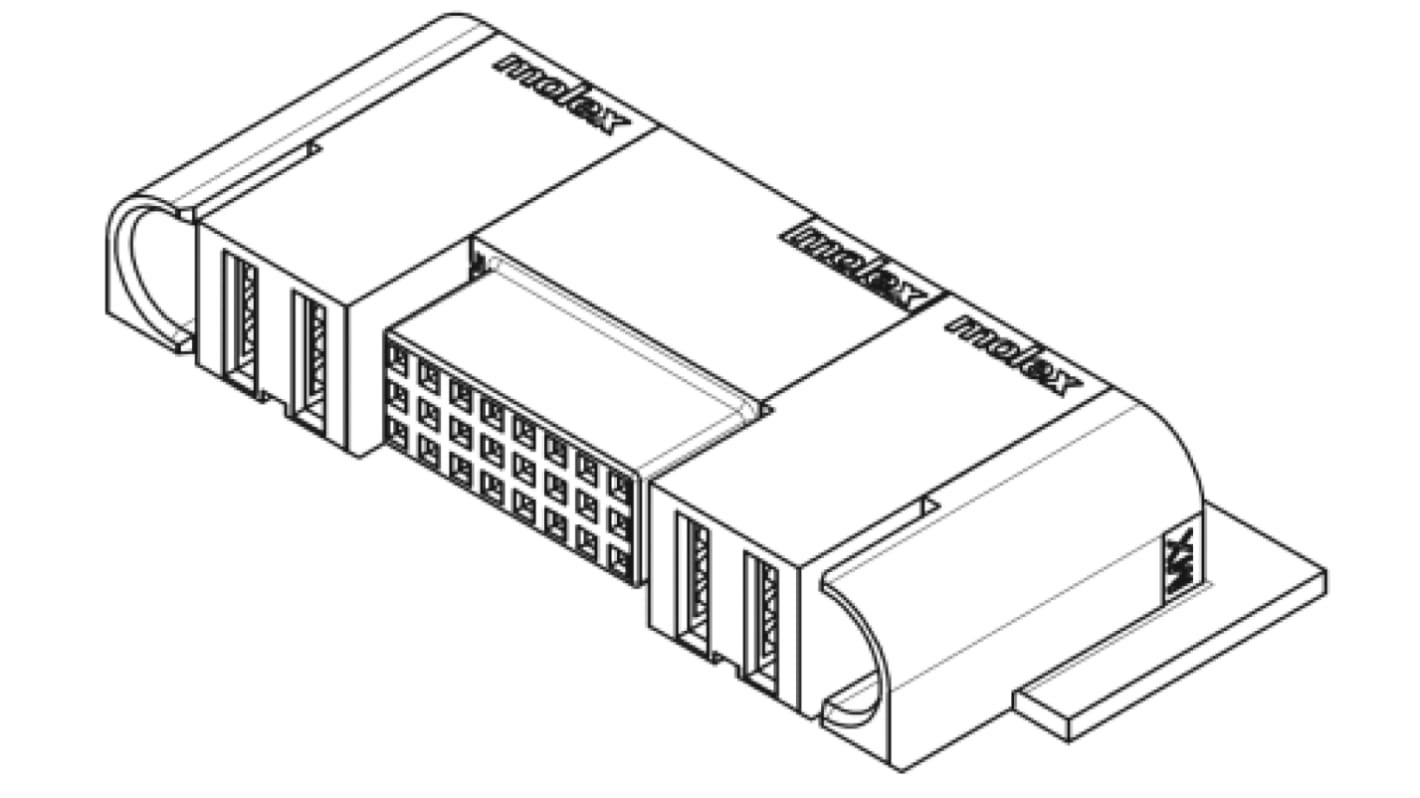

Molex EXTreme Ten60Power Series Right Angle Through Hole Heavy Duty Power Connector, 28-Contact, 3 Row, 2.54 mm Pitch
- RS Stock No.:
- 729-6053
- Mfr. Part No.:
- 046436-3003
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£8.85
(exc. VAT)
£10.62
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £8.85 |
| 20 - 74 | £8.59 |
| 75 - 299 | £8.36 |
| 300 - 599 | £8.15 |
| 600 + | £7.94 |
*price indicative
- RS Stock No.:
- 729-6053
- Mfr. Part No.:
- 046436-3003
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 28 | |
| Product Type | Heavy Duty Power Connector | |
| Number of Rows | 3 | |
| Sub Type | Connector | |
| Pitch | 2.54mm | |
| Current | 60A | |
| Housing Material | Liquid Crystal Polymer | |
| Termination Type | Solder | |
| Mount Type | Through Hole | |
| Orientation | Right Angle | |
| Connector System | Signal, Power, Board-to-Board | |
| Voltage | 600V | |
| Series | EXTreme Ten60Power | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Contact Plating | Gold | |
| Contact Material | Copper | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 28 | ||
Product Type Heavy Duty Power Connector | ||
Number of Rows 3 | ||
Sub Type Connector | ||
Pitch 2.54mm | ||
Current 60A | ||
Housing Material Liquid Crystal Polymer | ||
Termination Type Solder | ||
Mount Type Through Hole | ||
Orientation Right Angle | ||
Connector System Signal, Power, Board-to-Board | ||
Voltage 600V | ||
Series EXTreme Ten60Power | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Contact Plating Gold | ||
Contact Material Copper | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Molex EXTreme Ten60Power Series Heavy Duty Power Connector, 28 Contacts, Right Angle Orientation - 046436-3003
This heavy-duty power connector is designed for demanding board-to-board applications, providing unmatched performance with its right-angle orientation. Featuring a robust 28 contact configuration and a solder termination method, it ensures reliable connections for high-current environments. The connector is built to withstand harsh conditions and offers flexibility in design with its through-hole mounting option.
Features & Benefits
• Delivers high current ratings of up to 60A per blade
• Supports board-to-board configurations for versatile connections
• Right-angle design optimises PCB layout and space utilisation
• Solder termination method ensures strong, durable connections
• Configurable for custom design requirements to meet specific applications
• Constructed from high-quality materials for enhanced longevity
Applications
• Ideal for use in datacom equipment including servers and switches
• Suitable for telecommunications such as cellular base stations
• Employed in consumer electronics appliances and entertainment systems
• Utilised in HVAC systems for reliable power distribution
• Suitable for industrial automation within electrical and mechanical setups
What is the maximum current rating for this connector?
The connector is rated for a maximum current of 60A per power blade, ensuring robust performance in high-demand situations.
How does this connector ensure reliable performance in challenging environments?
It is constructed with durable materials and rated for resistance to arcing, making it suitable for hot-pluggable applications to minimise electrical interruptions.
Can it be used in space-constrained applications?
Yes, the right-angle design facilitates compact installations where space limitations are a concern, making it versatile for various layouts.
What type of termination method is used in this connector?
This connector employs a solder termination method, providing a secure connection that enhances durability and reliability.
How many circuits can be configured with this connector?
The connector can accommodate configurations with multiple circuits, including options for 2 to 6 power circuits and numerous signal circuits, tailored to specific design requirements.
