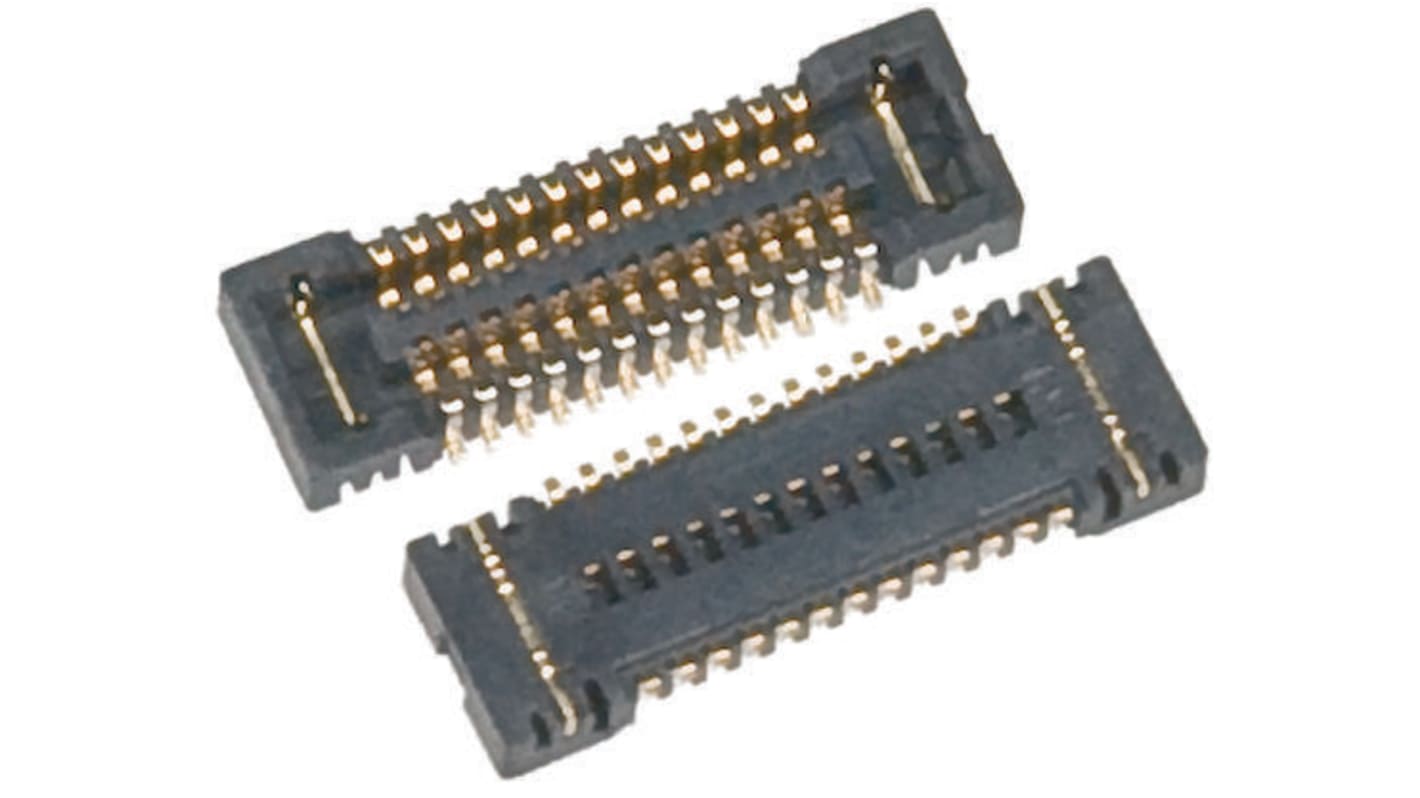

Molex SlimStack Series Straight Surface Mount PCB Socket, 80-Contact, 2-Row, 0.4mm Pitch, Solder Termination
- RS Stock No.:
- 668-9347
- Mfr. Part No.:
- 502426-8010
- Brand:
- Molex
Discontinued
- RS Stock No.:
- 668-9347
- Mfr. Part No.:
- 502426-8010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 80 | |
| Number of Rows | 2 | |
| Pitch | 0.4mm | |
| Type | Board to Board | |
| Mounting Type | Surface Mount | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Current Rating | 300mA | |
| Voltage Rating | 50 V | |
| Series | SlimStack | |
| Contact Material | Bronze | |
| Series Number | 502426 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 80 | ||
Number of Rows 2 | ||
Pitch 0.4mm | ||
Type Board to Board | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Current Rating 300mA | ||
Voltage Rating 50 V | ||
Series SlimStack | ||
Contact Material Bronze | ||
Series Number 502426 | ||
- COO (Country of Origin):
- JP
0.4mm Board to Board Connectors
Ultra miniature board to board connectors with some of the smallest overall dimensions in the industry, designed to accommodate the continual down-sizing of mobile devices for ultra narrow board to board applications.
Current rating 0.3A, 50V
Contact resistance 80 milliohms max.
Insulation resistance 100 megohms min.
Superior electrical contact reliability
Integral end solder grounding tabs
Gold plated contacts
Operating temperature range -20 to +85 °C
Durability : 30 cycles
Contact resistance 80 milliohms max.
Insulation resistance 100 megohms min.
Superior electrical contact reliability
Integral end solder grounding tabs
Gold plated contacts
Operating temperature range -20 to +85 °C
Durability : 30 cycles
Approvals
UL 94V-0
0.4mm Board to Board - Molex
