HARWIN M300 Series Vertical PCB PCB Socket, 3-Contact, 1 Row, 3 mm Pitch Solder
- RS Stock No.:
- 287-1010
- Mfr. Part No.:
- M300-MV10345M1
- Brand:
- HARWIN
Bulk discount available
Subtotal (1 tube of 12 units)*
£44.856
(exc. VAT)
£53.832
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 132 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 12 - 12 | £3.738 | £44.86 |
| 24 - 24 | £3.587 | £43.04 |
| 36 - 36 | £3.45 | £41.40 |
| 48 - 48 | £3.322 | £39.86 |
| 60 + | £3.203 | £38.44 |
*price indicative
- RS Stock No.:
- 287-1010
- Mfr. Part No.:
- M300-MV10345M1
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Product Type | PCB Socket | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Sub Type | Through Board Connector | |
| Current | 10A | |
| Pitch | 3mm | |
| Termination Type | Solder | |
| Housing Material | Polyamide | |
| Mount Type | PCB | |
| Orientation | Vertical | |
| Voltage | 600 V | |
| Series | M300 | |
| Minimum Operating Temperature | -65°C | |
| Row Pitch | 3mm | |
| Maximum Operating Temperature | 175°C | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Product Type PCB Socket | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Sub Type Through Board Connector | ||
Current 10A | ||
Pitch 3mm | ||
Termination Type Solder | ||
Housing Material Polyamide | ||
Mount Type PCB | ||
Orientation Vertical | ||
Voltage 600 V | ||
Series M300 | ||
Minimum Operating Temperature -65°C | ||
Row Pitch 3mm | ||
Maximum Operating Temperature 175°C | ||
Contact Gender Male | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Standards/Approvals RoHS | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB

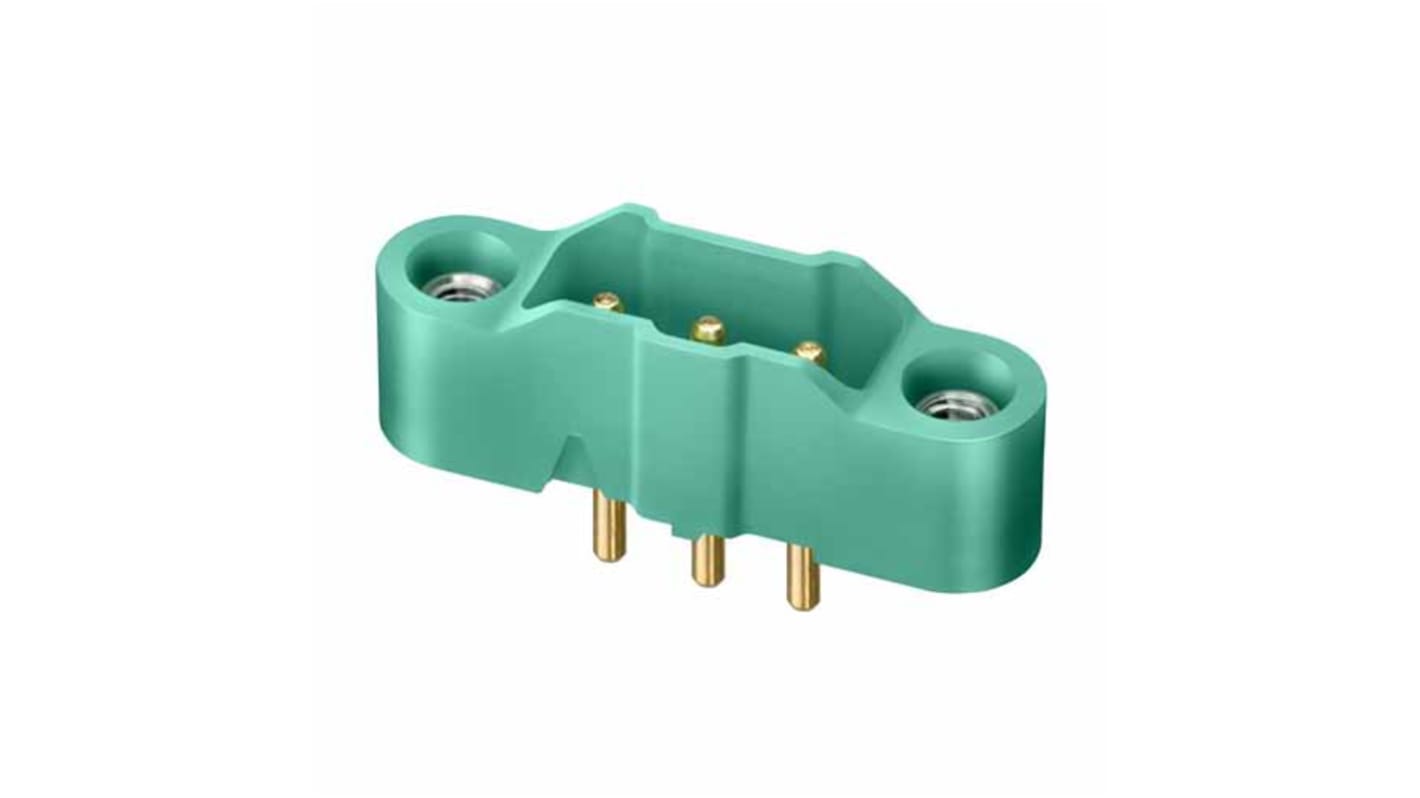

The HARWIN Single Row Vertical Male Throughboard connector with 3.2mm PC Tail. It has Gold finish on contact area and termination.
Polarized housings, with internally threaded jackscrews
RoHS compliant
