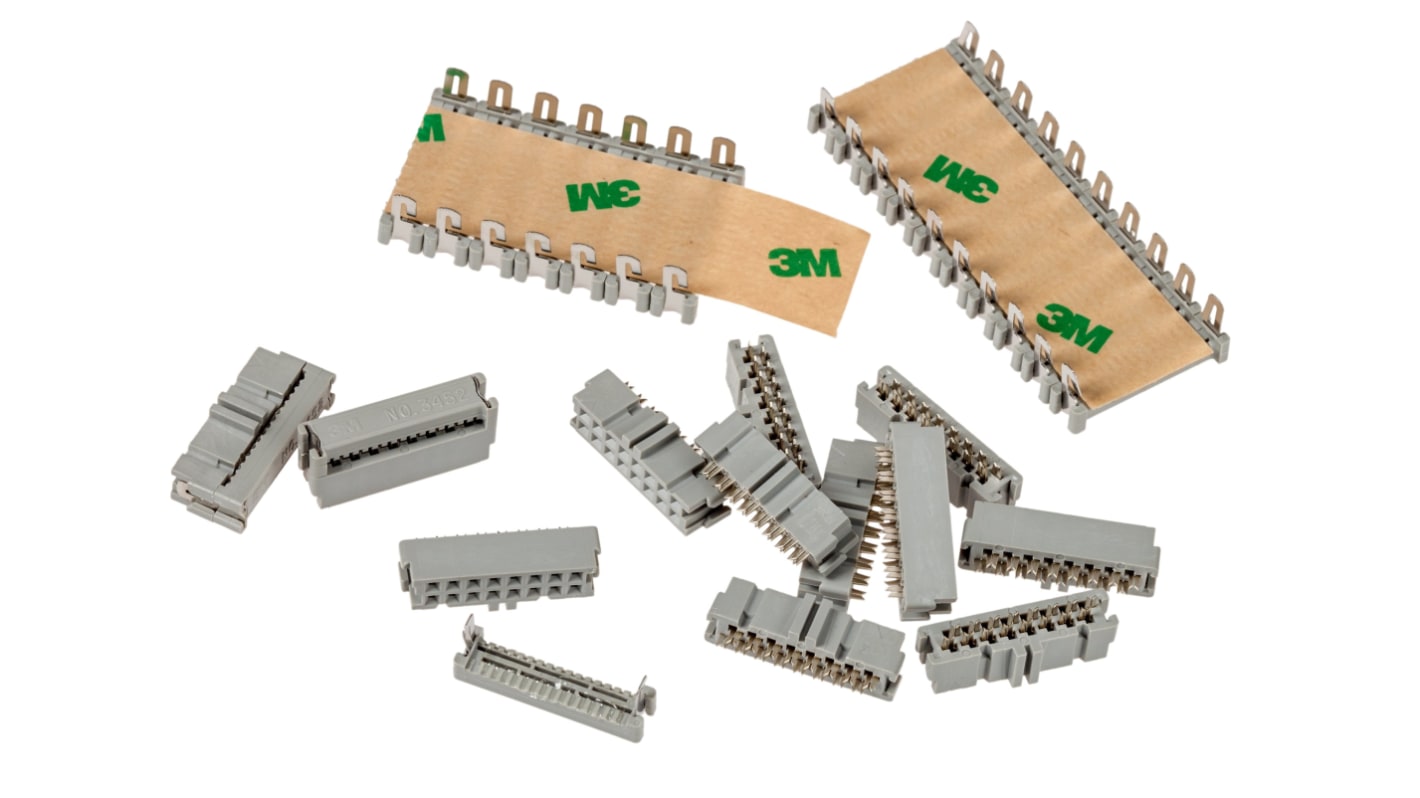

3M 3000 Series Straight Wire IDC Connector, 16-Contact, 2 Row, 2.54 mm Pitch IDC
- RS Stock No.:
- 276-9513
- Distrelec Article No.:
- 143-12-152
- Mfr. Part No.:
- 7100251662
- Brand:
- 3M
Subtotal (1 unit)*
£2.84
(exc. VAT)
£3.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 628 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.84 |
*price indicative
- RS Stock No.:
- 276-9513
- Distrelec Article No.:
- 143-12-152
- Mfr. Part No.:
- 7100251662
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | IDC Connector | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Sub Type | Socket | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Termination Type | IDC | |
| Housing Material | Glass Filled Polyester | |
| Mount Type | Wire | |
| Orientation | Straight | |
| Connector System | Wire-to-Board | |
| Series | 3000 | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Contact Plating | Nickel | |
| Contact Material | Copper | |
| Standards/Approvals | MIL and IEC | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type IDC Connector | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Sub Type Socket | ||
Current 1A | ||
Pitch 2.54mm | ||
Termination Type IDC | ||
Housing Material Glass Filled Polyester | ||
Mount Type Wire | ||
Orientation Straight | ||
Connector System Wire-to-Board | ||
Series 3000 | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Contact Plating Nickel | ||
Contact Material Copper | ||
Standards/Approvals MIL and IEC | ||
RoHS Status: Exempt
- COO (Country of Origin):
- VN
The 3M wire mount socket is industry standard IDC socket. Positive locking metal J clips provide high cover retention.
Open or closed end covers available
Accepts flat cable or discrete wire
