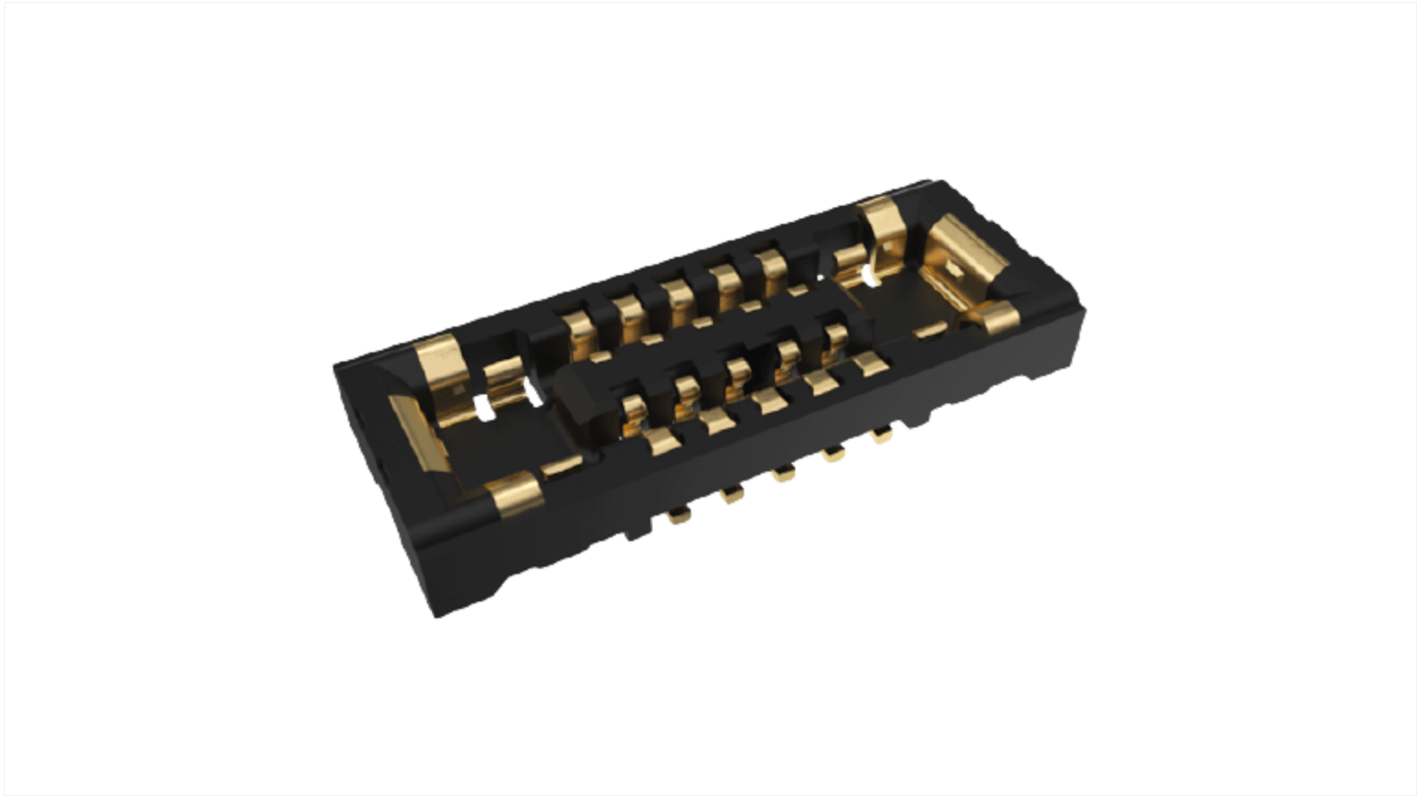

Name: Amphenol Communications Solutions Micro Series Vertical Surface PCB Socket, 12-Contact, 2 Row, 0.35 mm Pitch Solder
Brand: Amphenol Communications Solutions
SKU: 232-6057
Price: 0.14 GBP
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Amphenol Communications Solutions
	Product Type	PCB Socket
	Number of Contacts	12
	Number of Rows	2
	Sub Type	Micro BTB Connector
	Pitch	0.35mm
	Termination Type	Solder
	Housing Material	Plastic
	Mount Type	Surface
	Orientation	Vertical
	Stacking Height	0.6mm
	Connector System	Board-to-Board
	Series	Micro
	Minimum Operating Temperature	-40°C
	Row Pitch	1.8mm
	Contact Material	Copper Alloy
	Contact Gender	Female
	Contact Plating	Gold Flash over Nickel
	Maximum Operating Temperature	85°C
	Standards/Approvals	No

	Select all
	Brand Amphenol Communications Solutions
	Product Type PCB Socket
	Number of Contacts 12
	Number of Rows 2
	Sub Type Micro BTB Connector
	Pitch 0.35mm
	Termination Type Solder
	Housing Material Plastic
	Mount Type Surface
	Orientation Vertical
	Stacking Height 0.6mm
	Connector System Board-to-Board
	Series Micro
	Minimum Operating Temperature -40°C
	Row Pitch 1.8mm
	Contact Material Copper Alloy
	Contact Gender Female
	Contact Plating Gold Flash over Nickel
	Maximum Operating Temperature 85°C
	Standards/Approvals No

COO (Country of Origin):: CN

The 103 series products are 0.35mm pitch micro board to board connectors designed for high density applications. ideal for consumer applications such as mobile phone, smart watch, smart glasses and VR or AR devices.

Lead And Halogen Free

Low Profile Connector Design With Fine Pitch

Self Cleaning Design

Double Contact Points

Amphenol Communications Solutions Micro Series Vertical Surface PCB Socket, 12-Contact, 2 Row, 0.35 mm Pitch Solder
