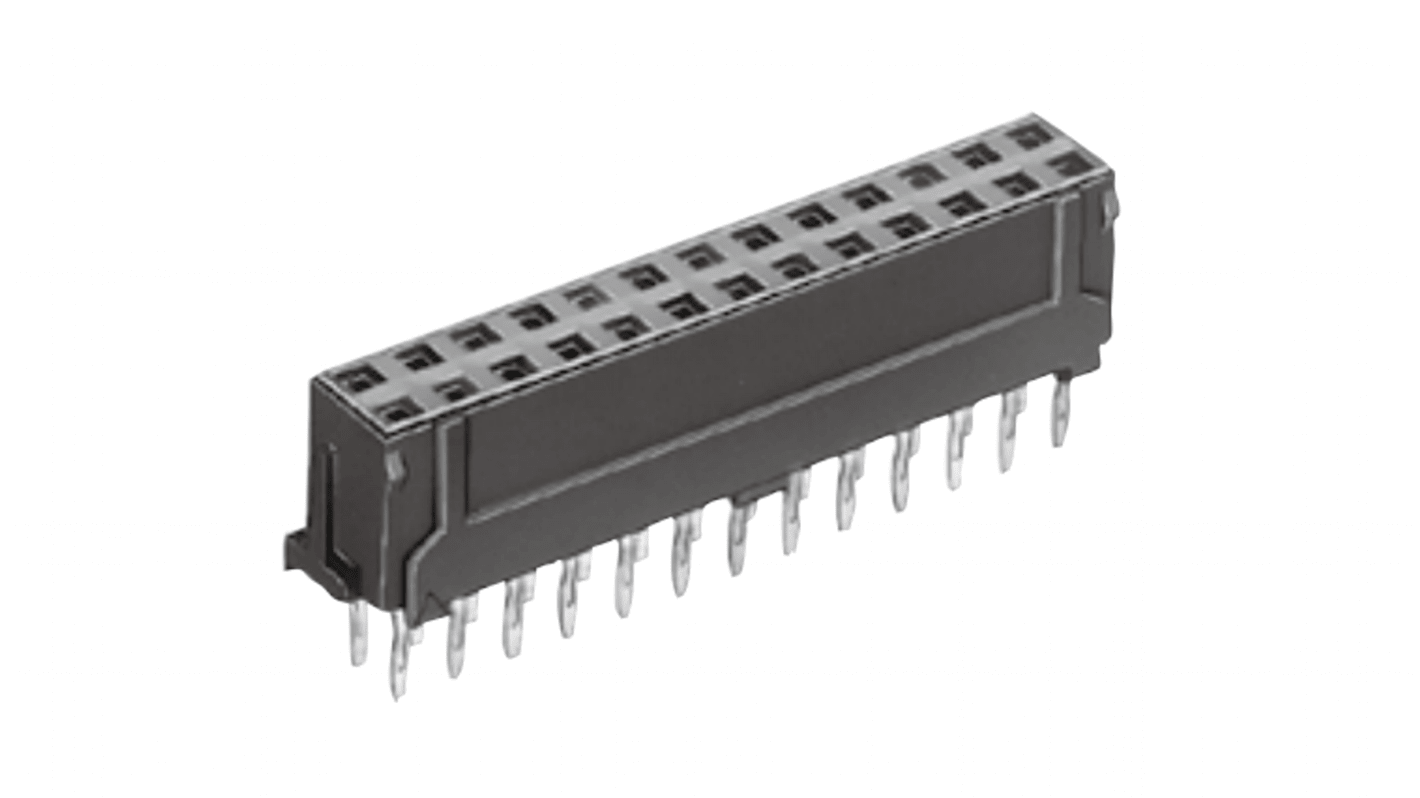

Hirose DF11 Series Straight Through Hole Mount PCB Socket, 12-Contact, 2-Row, 2.0mm Pitch, Solder Termination

View all PCB Sockets
Bulk discount available

Subtotal (1 pack of 4 units)*

£4.74

(exc. VAT)

£5.688

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
4 - 8£1.185£4.74
12 - 16£1.07£4.28
20 - 24£1.02£4.08
28 - 32£0.973£3.89
36 +£0.925£3.70

*price indicative

RS Stock No.:
187-4099
Mfr. Part No.:
DF11-12DS-2DSA(06)
Brand:
Hirose
Find similar products by selecting one or more attributes.
Select all

Brand

Hirose

Number of Contacts

12

Number of Rows

2

Pitch

2.0mm

Mounting Type

Through Hole

Body Orientation

Straight

Termination Method

Solder

Connector System

Board to Board

Current Rating

2.0A

Voltage Rating

250.0 V

Series

DF11

Contact Plating

Gold

Contact Material

Phosphor Copper

COO (Country of Origin):
MY
Space-saving on Board Realized
Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact.
Broad Variation
The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up.
Applicable Wire Covers Wide Range
According to the double rows of 2mm pitch compact design, the applicable wire can cover 22 to 30 AWG.
The ID Type Connector Achieves Connection Work.
Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process.
Applications
Business equipments such as copy machine, printer and so on.
