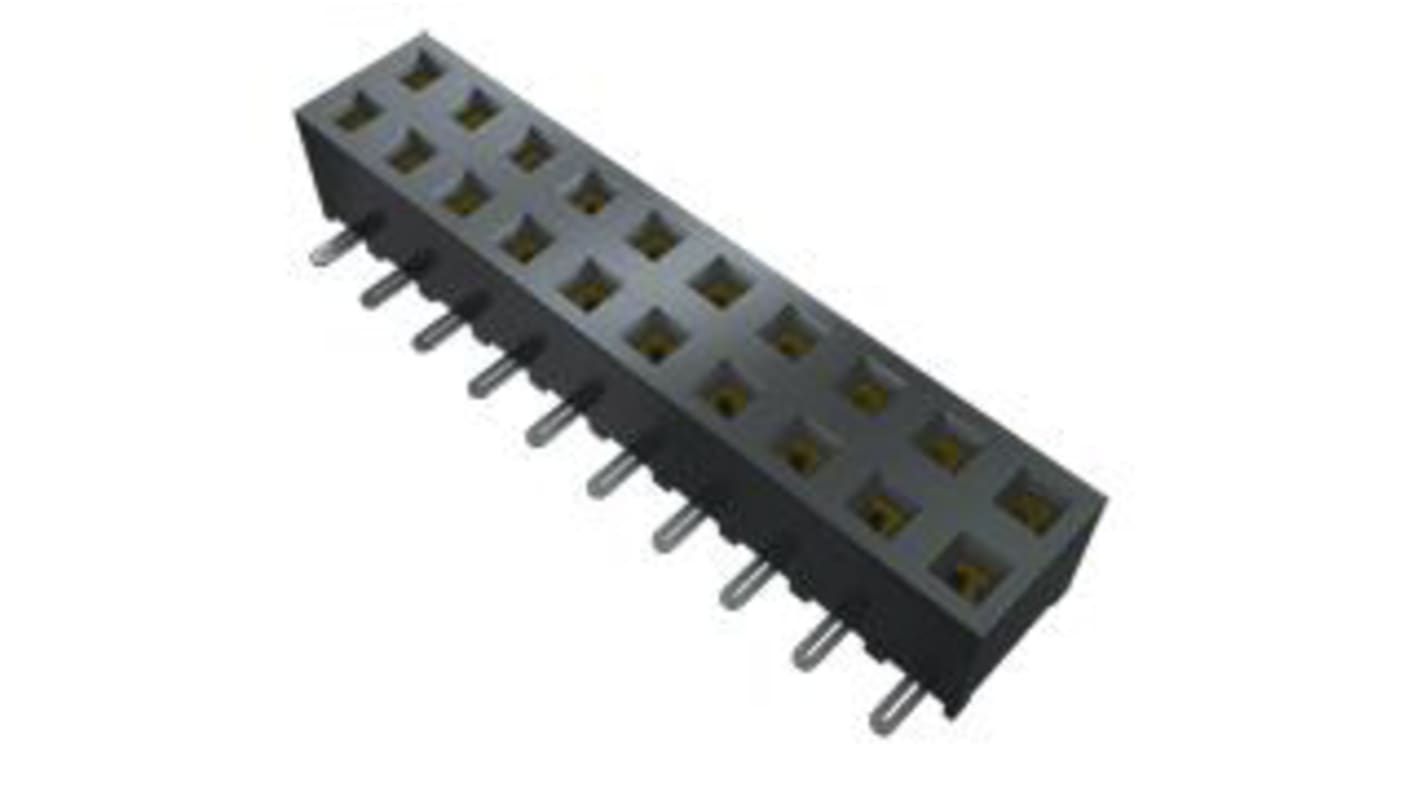

Samtec SMM Series Straight Surface Mount PCB Socket, 20-Contact, 2-Row, 2mm Pitch, Solder Termination
- RS Stock No.:
- 180-1561
- Mfr. Part No.:
- SMM-110-01-S-D
- Brand:
- Samtec
Available to back order for despatch 03/06/2024
Price Each (In a Tube of 29)
£3.881
(exc. VAT)
£4.657
(inc. VAT)
| Units | Per unit | Per Tube* |
| 29 + | £3.881 | £112.549 |
| *price indicative | ||
- RS Stock No.:
- 180-1561
- Mfr. Part No.:
- SMM-110-01-S-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
Application: Single and double row mating to 40 pins per row
Contact System: Tiger Eye™
Orientation: Vertical
Pitch: 2.00 mm (.0787")
Special Features: High-reliability multi-finger Beryllium Copper contact system
Termination: Surface mount
Contact System: Tiger Eye™
Orientation: Vertical
Pitch: 2.00 mm (.0787")
Special Features: High-reliability multi-finger Beryllium Copper contact system
Termination: Surface mount
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 2mm |
| Type | High-Reliability Socket Strip |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 3.2A |
| Voltage Rating | 350 V |
| Series | SMM |
| Contact Material | Beryllium Copper |
