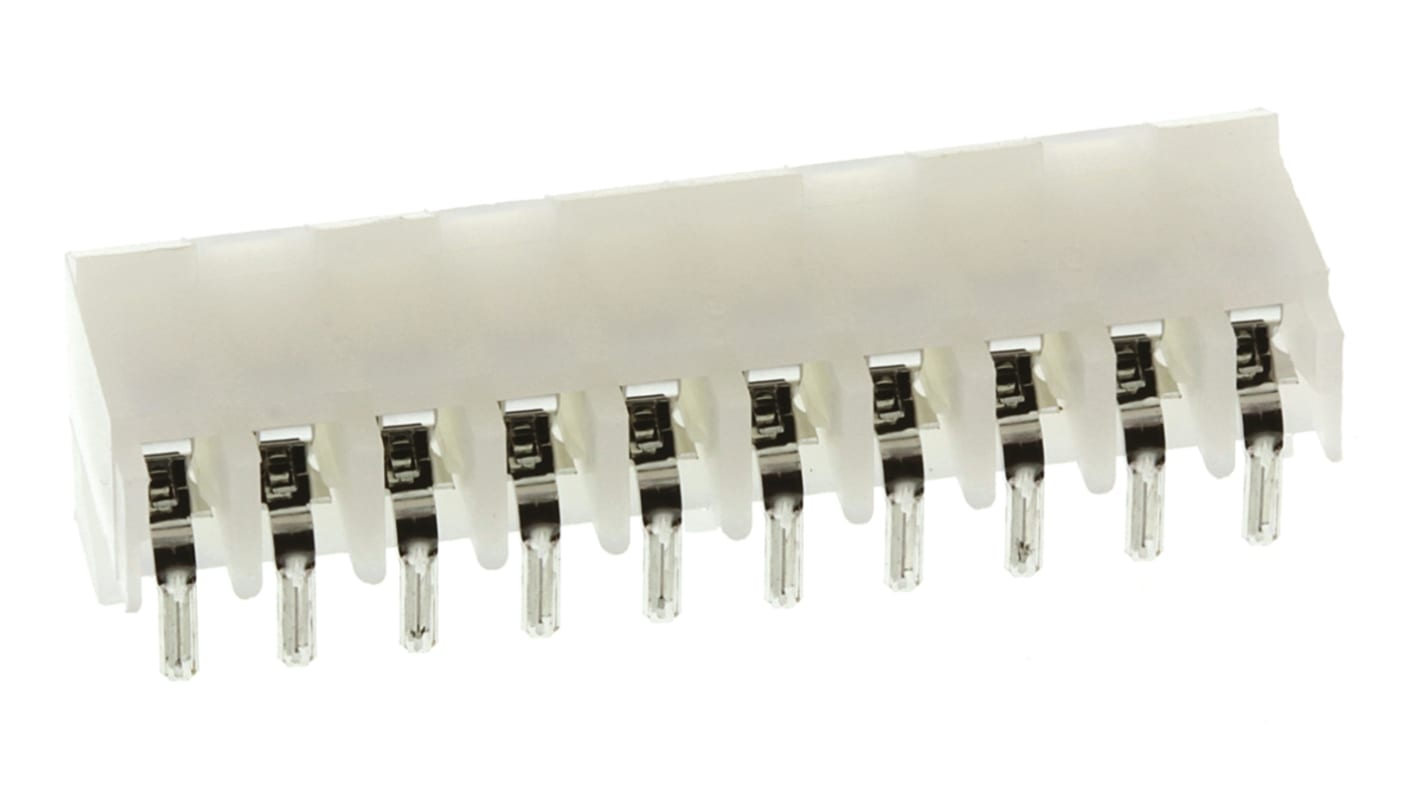

Molex KK 396 Series Right Angle Through Hole Mount PCB Socket, 10-Contact, 1-Row, 3.96mm Pitch, Solder Termination
- RS Stock No.:
- 170-7247
- Mfr. Part No.:
- 09-52-1106
- Brand:
- Molex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-7247
- Mfr. Part No.:
- 09-52-1106
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Pitch | 3.96mm | |
| Type | Socket Strip | |
| Mounting Type | Through Hole | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Current Rating | 12A | |
| Voltage Rating | 250 V | |
| Series | KK 396 | |
| Contact Material | Bronze | |
| Series Number | 2145 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 3.96mm | ||
Type Socket Strip | ||
Mounting Type Through Hole | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Current Rating 12A | ||
Voltage Rating 250 V | ||
Series KK 396 | ||
Contact Material Bronze | ||
Series Number 2145 | ||
- COO (Country of Origin):
- MX
Side Entry PCB Sockets (2145 Series)
A range of 2145 Series, KK 396, PC Board Connectors, Right Angle entry Sockets incorporating locking ramps and populated with positive cantilever wipe action contacts.
Contact material is Tin plated Brass
Housing material is Nylon UL94V-2 rated
Housing material is Nylon UL94V-2 rated
Approvals
UL recognised component, CSA certified
3.96mm Molex KK Range
