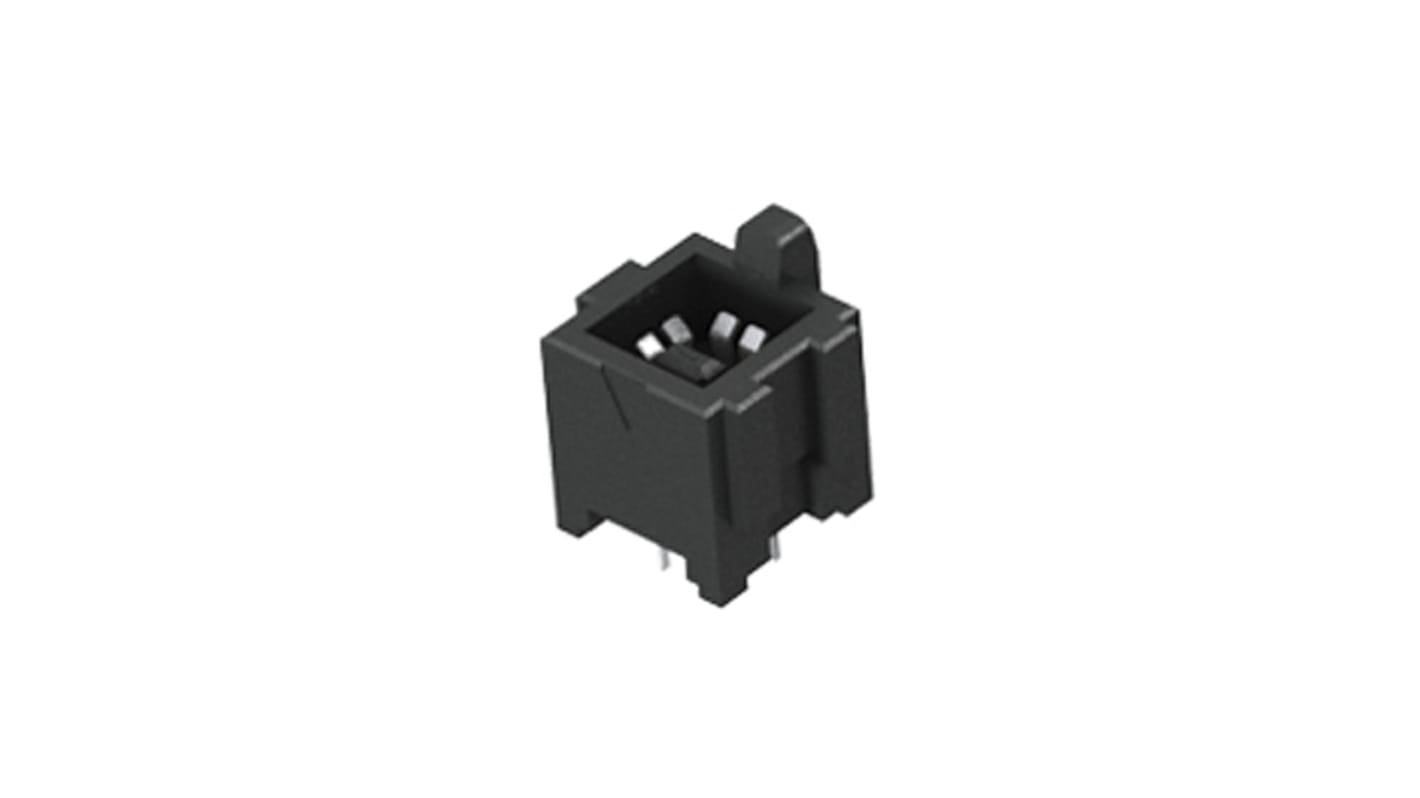

Samtec IJ5 Series 4mm Pitch 1 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination

  • RS Stock No. 123-6918
  • Mfr. Part No. IJ5-01-05.0-L-S-1-TR
  • Brand Samtec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Samtec IJ5 Series 4.00 mm 50 Ω High Isolation Board-to-Board RF Jack Strips

IJ5 series 50 Ω high isolation board-to-board RF jack strips with a contact pitch of 4.00 mm and a BTB stack height of 10 mm. These IJ5 4.00 mm RF jack strips are part of the IsoRate high isolation interconnect system with a performance of up to 9.5 GHz, 19 Gbit/s. The IsoRate interconnect system features rugged Edge Rate contacts which are able to achieve high isolation at a lower cost than traditional screw-machined RF contacts. These IJ5 series high isolation board-to-board RF jack connectors are available in single and double row configurations with up to 8 jacks per row.
These IsoRate IJ5 series 4.00 mm 50 Ω board-to-board RF jack strips mate with the IsoRate IP5 RF plug connectors

4.00mm Wire to Board and Board to Board - Samtec

Specifications
Attribute Value
Number of Contacts 1
Number of Rows 1
Pitch 4mm
Type Board to Board
Mounting Type Through Hole
Body Orientation Straight
Termination Method Solder
Current Rating 2.36 (Per Pin Signal) A, 4.4 (Per Pin Ground) A
Voltage Rating 200 V ac
Series IJ5
Contact Material Copper Alloy
Available to back order for despatch 31/12/2019
Price Each
£ 1.50
(exc. VAT)
£ 1.80
(inc. VAT)
Units
Per unit
1 - 9
£1.50
10 - 49
£1.45
50 - 99
£1.40
100 - 249
£1.35
250 +
£1.31
