Weidmüller 1147770000 Series Straight Plug-In PCB Socket, 16-Contact, 1-Row, 5.08mm Pitch, Solder Termination
- RS Stock No.:
- 688-099
- Mfr. Part No.:
- 1147770000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£314.25
(exc. VAT)
£377.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £314.25 |
*price indicative
- RS Stock No.:
- 688-099
- Mfr. Part No.:
- 1147770000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Number of Contacts | 16 | |
Number of Rows | 1 | |
Pitch | 5.08mm | |
Type | PCB Plug-In Connector | |
Mounting Type | Plug-In | |
Body Orientation | Straight | |
Termination Method | Solder | |
Series | 1147770000 | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Number of Contacts 16 | ||
Number of Rows 1 | ||
Pitch 5.08mm | ||
Type PCB Plug-In Connector | ||
Mounting Type Plug-In | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Series 1147770000 | ||
- COO (Country of Origin):
- DE

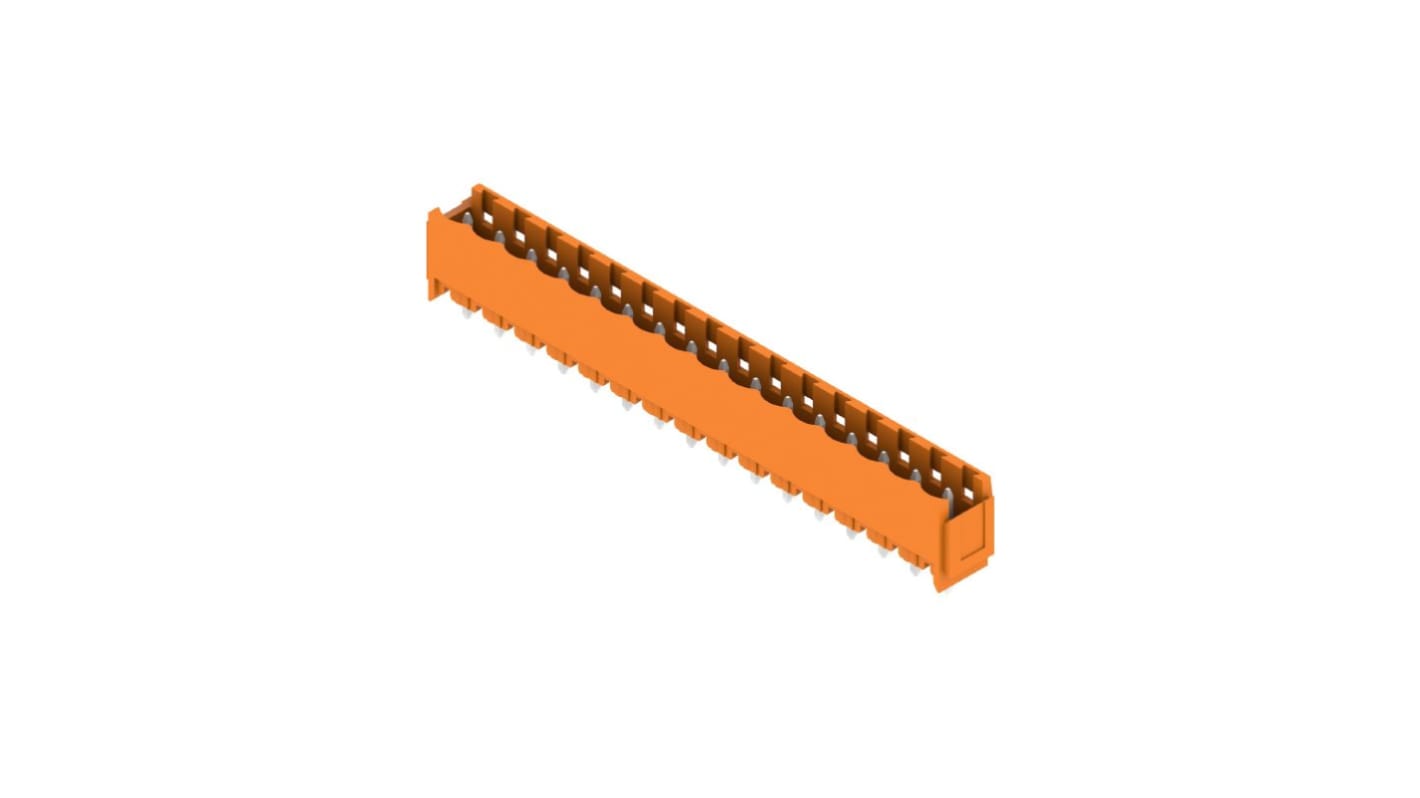

The Weidmuller PCB plug-in connector features a 16 pole male header with dovetails for secure fixing blocks and a 5.08 mm pitch. Designed for through-hole technology soldering, it has a 3.2 mm long tinned solder pin and a 180° orientation. Finished in bright orange and supplied in a box, it ensures reliable and easy installation in electronic assemblies.
IP20 protection rated
Can be coded
RoHS compliant
Touch safe protection according to DIN VDE 0470
Can be coded
RoHS compliant
Touch safe protection according to DIN VDE 0470
