Weidmüller 1146900000 Series Straight PCB Socket, 10-Contact, 1 Row, 5.08 mm Pitch Push-in

View all PCB Sockets
Bulk discount available

Subtotal (1 bag of 2 units)*

£5.76

(exc. VAT)

£6.91

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 9£5.76£2.88
10 - 24£5.30£2.65
25 +£4.78£2.39

*price indicative

RS Stock No.:
688-093
Mfr. Part No.:
1146900000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Product Type

PCB Socket

Number of Contacts

10

Number of Rows

1

Sub Type

PCB Plug-In Connector

Current

24A

Pitch

5.08mm

Housing Material

Polyamide Fibreglass

Termination Type

Push-in

Orientation

Straight

Voltage

40 V

Series

1146900000

Minimum Operating Temperature

50°C

Row Pitch

5.08mm

Contact Material

Copper Alloy

Maximum Operating Temperature

100°C

Contact Gender

Male

Contact Plating

Tinned

Standards/Approvals

UL 1059, CSA, IEC 60664-1, IEC 61984

COO (Country of Origin):
DE

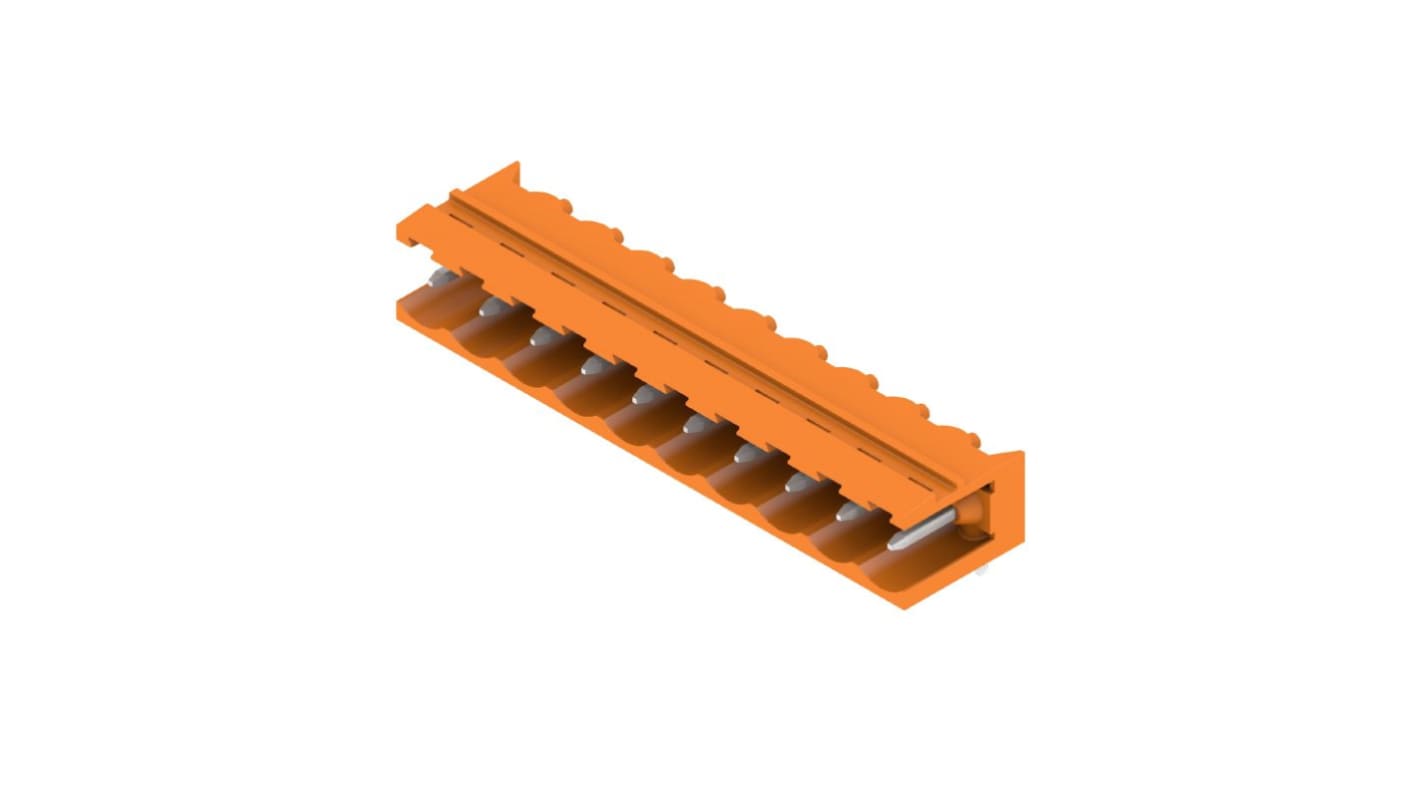

The Weidmuller PCB plug-in connector is a 10 pole male header with an open side design and a 5.08 mm pitch. It features THT solder connections with 3.2 mm long tinned solder pins and a 90° orientation. Finished in Orange and supplied in a box, it ensures secure mounting and reliable performance in electronic assemblies.

IP20 protection rated

Can be coded

RoHS compliant

Touch safe protection according to DIN VDE 0470
