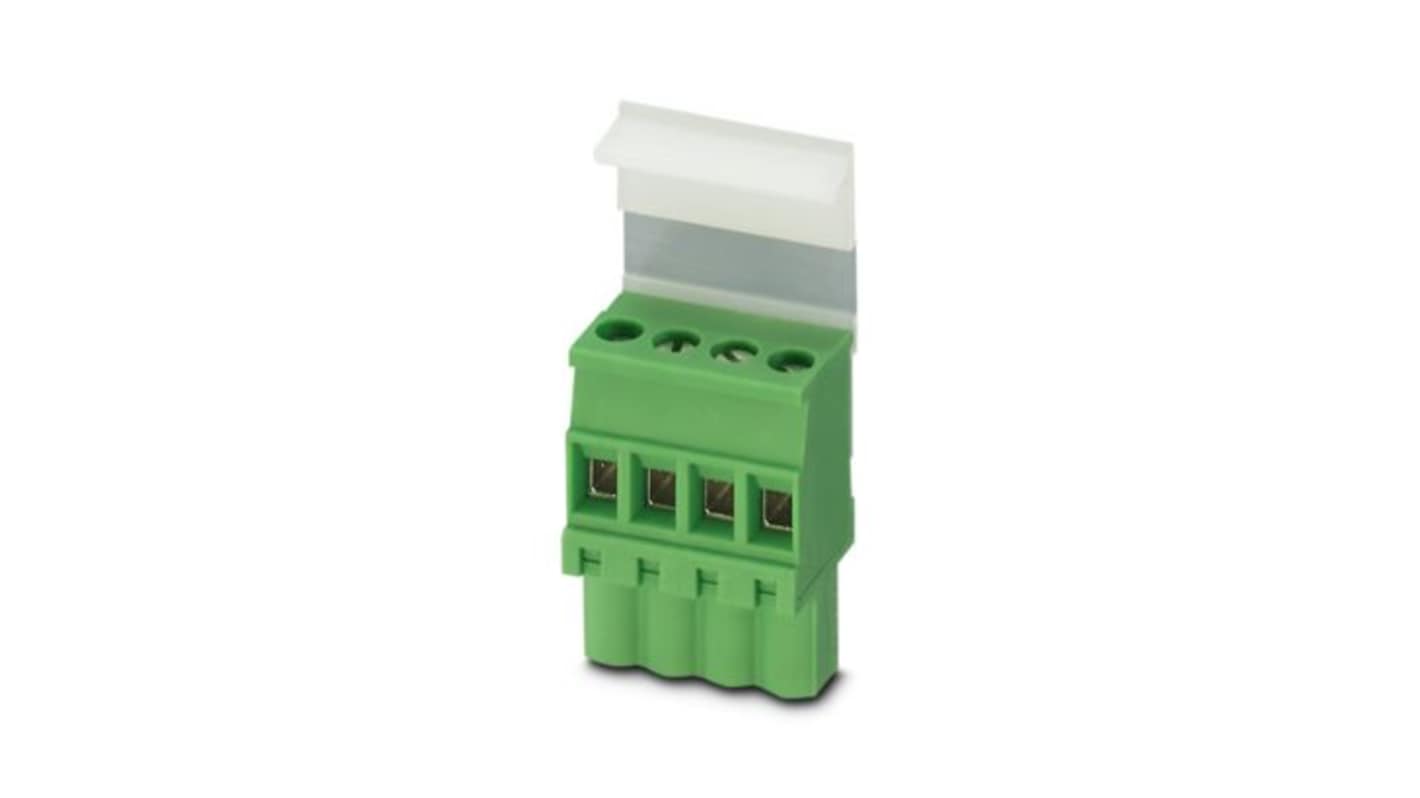

Phoenix Contact MVSTBW Series PCB Connector, 4-Contact, 1 Row, 5 mm Pitch Screw
- RS Stock No.:
- 497-133
- Mfr. Part No.:
- 1784299
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£450.52
(exc. VAT)
£540.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £450.52 | £9.01 |
*price indicative
- RS Stock No.:
- 497-133
- Mfr. Part No.:
- 1784299
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | PCB Connector | |
| Sub Type | PCB Connector | |
| Number of Rows | 1 | |
| Current | 12A | |
| Pitch | 5mm | |
| Termination Type | Screw | |
| Housing Material | Polyamide | |
| Connector System | COMBICON MSTB 2.5 | |
| Voltage | 32 V | |
| Series | MVSTBW | |
| Row Pitch | 5mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Plating | Tin Plated | |
| Maximum Operating Temperature | 100°C | |
| Contact Material | Copper Alloy | |
| Contact Gender | Female | |
| Standards/Approvals | EN 60695-10-2, EN 60695-2-12, VDE approval, UL 94 V0, IEC 61984, IEC 60664-1:2007-04, EN 60695-2-13 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type PCB Connector | ||
Sub Type PCB Connector | ||
Number of Rows 1 | ||
Current 12A | ||
Pitch 5mm | ||
Termination Type Screw | ||
Housing Material Polyamide | ||
Connector System COMBICON MSTB 2.5 | ||
Voltage 32 V | ||
Series MVSTBW | ||
Row Pitch 5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Tin Plated | ||
Maximum Operating Temperature 100°C | ||
Contact Material Copper Alloy | ||
Contact Gender Female | ||
Standards/Approvals EN 60695-10-2, EN 60695-2-12, VDE approval, UL 94 V0, IEC 61984, IEC 60664-1:2007-04, EN 60695-2-13 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB connector is designed for optimal performance in various applications. The product belongs to the MVSTBW 2.5/-STEH series, featuring a robust structure that ensures reliability in connection. With its impressive specifications, this connector allows for a nominal current of 12 A and a rated voltage of 320 V, making it ideal for diverse electronic configurations. The user-friendly design facilitates easy installation, and its compact dimensions mean it can fit into tighter spaces without compromising functionality. Whether you're assembling new projects or maintaining existing installations, this PCB connector provides the quality and durability needed for reliable connectivity.
Supports a wide range of conductor sizes for flexibility in use
Features a locking clip that ensures secure connections
Sustains high ambient temperatures, suitable for rigorous environments
Compliant with RoHS regulations, ensuring environmentally friendly usage
Facilitates connection of two conductors for efficient power distribution
