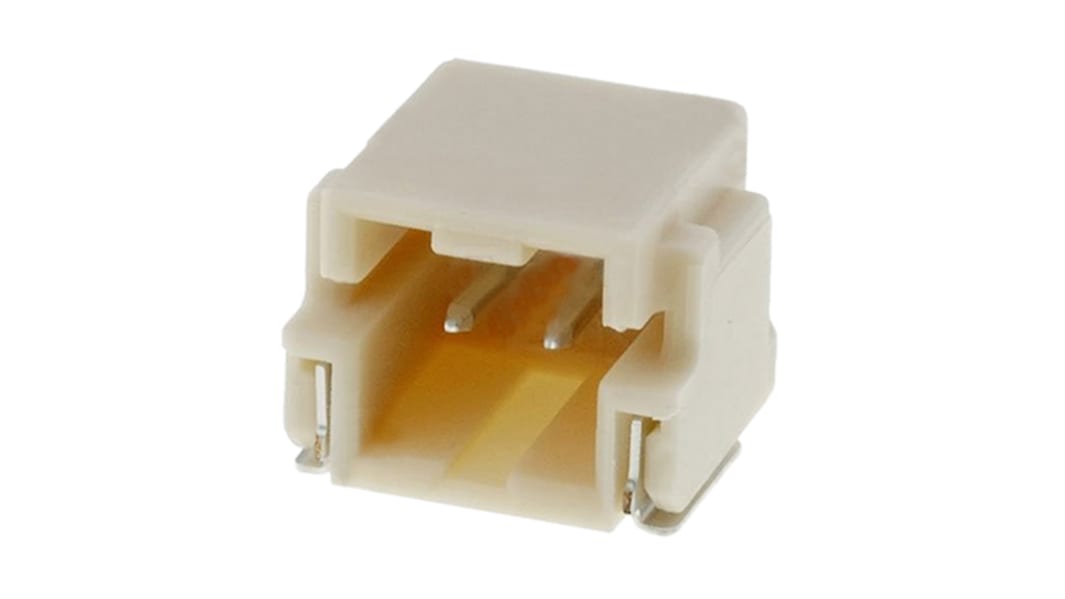

Molex DuraClik Series Right Angle Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded

RS Stock No.:: 904-8165
Mfr. Part No.:: 502352-0200
Brand:: Molex

Molex DuraClik Series Right Angle Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded

Bulk discount available

Subtotal (1 pack of 5 units)*

£5.64

(exc. VAT)

£6.77

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 50 unit(s) shipping from 01 December 2025
Plus 60 unit(s) shipping from 01 December 2025
Plus 700 unit(s) shipping from 08 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 45	£1.128	£5.64
50 - 145	£0.932	£4.66
150 - 295	£0.776	£3.88
300 - 495	£0.746	£3.73
500 +	£0.714	£3.57

*price indicative

RS Stock No.:: 904-8165
Mfr. Part No.:: 502352-0200
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	DuraClik
	Product Type	PCB Header
	Current	3A
	Pitch	2mm
	Number of Contacts	2
	Housing Material	Polyamide
	Number of Rows	1
	Orientation	Right Angle
	Shrouded/Unshrouded	Shrouded
	Connector System	Wire-to-Board
	Mount Type	Surface
	Contact Plating	Tin
	Contact Material	Copper Alloy
	Row Pitch	2mm
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Contact Gender	Male
	Standards/Approvals	No
	Voltage	125 V
	Distrelec Product Id	304-44-675

	Select all
	Brand Molex
	Series DuraClik
	Product Type PCB Header
	Current 3A
	Pitch 2mm
	Number of Contacts 2
	Housing Material Polyamide
	Number of Rows 1
	Orientation Right Angle
	Shrouded/Unshrouded Shrouded
	Connector System Wire-to-Board
	Mount Type Surface
	Contact Plating Tin
	Contact Material Copper Alloy
	Row Pitch 2mm
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Contact Gender Male
	Standards/Approvals No
	Voltage 125 V
	Distrelec Product Id 304-44-675

COO (Country of Origin):: CN

Molex PCB Header, 3A Maximum Current Per Contact, 2mm Pitch - 502352 Series - 502352-0200

Want a faff-free way to connect components to your PCB? Simplify your design with this DuraClik PCB header from Molex. Its tinned-copper contacts are highly conductive, so you can be sure of lightning-fast signal transmission. As this is a surface-mounting element that's compatible with solder termination, it achieves a firm connection, even in vibrating conditions. The unit's fully shrouded so signals stay noise-free.

Features & Benefits

• Reliable in demanding conditions thanks to an operating temperature range of -40°C to +105°C

• Polarisation prevents mismating for streamlined connections

• Right-angle design protects wires from damage caused by bending

Applications

• Consumer electronics

• Signalling systems

• Telecommunications networks

What mating parts connect with this header?

To suit your setup, you can connect this header accurately with DuraClik housings in the 502351 and 505151 series.

Molex DuraClik™ 2.00mm SMT PCB Header Connectors, 502352 & 560020 Series

2.0mm pitch DuraClik™ 502352 and 560020 series vertical and right angle angle SMT PBC header connectors ideal for use in high vibration and high temperature wire to board applications. These 2.0mm DuraClik™ PCB headers have a shock-proof SMT design with wide solder tabs tested to SAE Automation vibration standards for secure anti-vibration resistant PCB retention. Additional features of these 2mm DuraClik™ PCB headers include polarization and keying for accurate mating and an inner positive locking system that provides secure mating retention which is confirmed by an audible 'click'. Typical applications for these 2.0mm DuraClik™ PCB header connectors include automotive, industrial, factory automation and lighting.

For mating connectors see Molex series 502351, 560123 and 505151 DuraClik™ crimp housings
