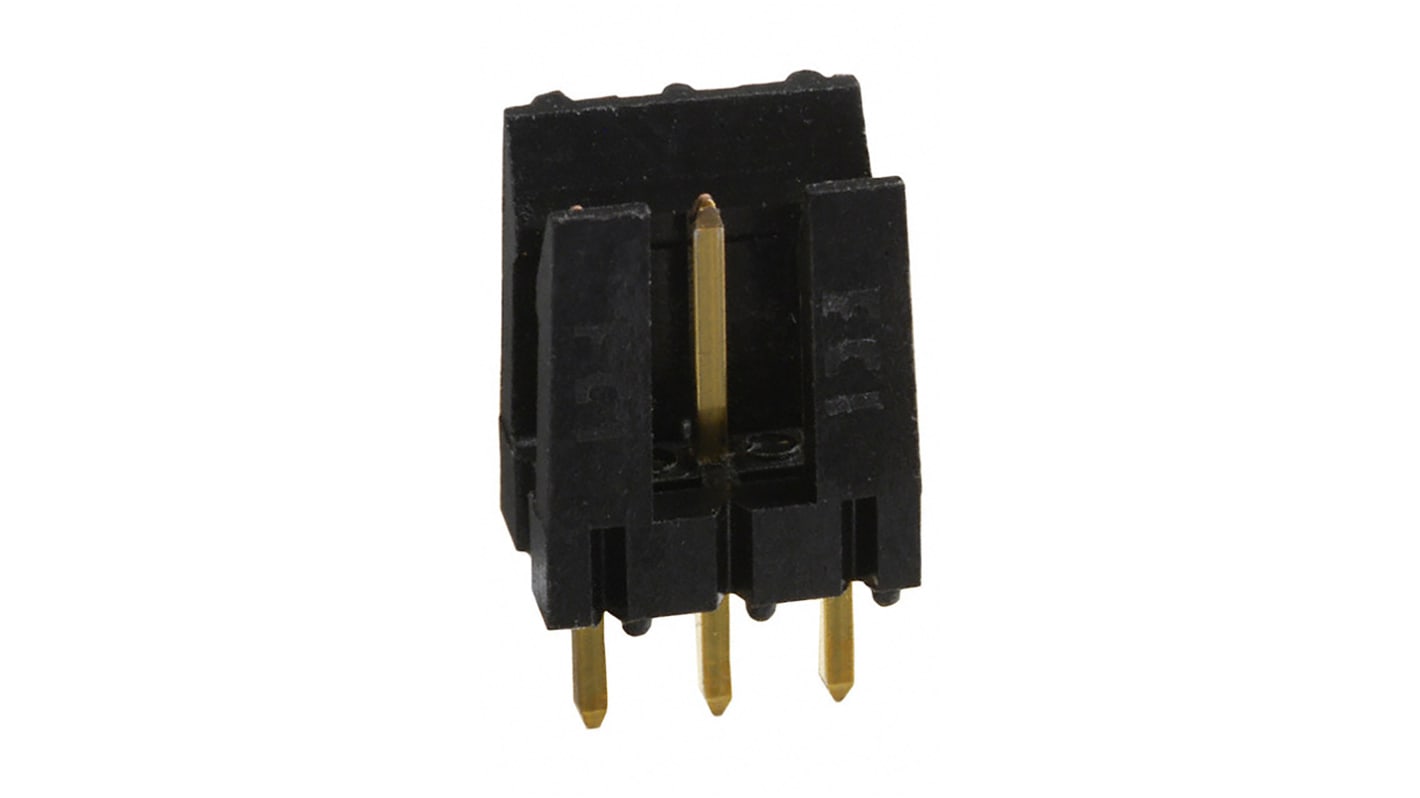

Amphenol FCI DUBOX, 3 Way, 1 Row, Straight PCB Header

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Amphenol FCI 2.54 mm Dubox Series PCB Header Connectors

2.54 mm Dubox series PCB shrouded header connectors that mate with Dubox crimp connector housings for wire to board applications. These Dubox PCB headers are shrouded on two walls and are end to end stackable for PCB space saving. The header housings feature polarization to avoid mismating and a friction lock for a secure mating connection. The housings are made from high temperature thermoplastic to withstand the solder reflow process. These 2.54 mm Dubox headers are available in a single or double row configuration with vertical and right angle mounting options

Features and Benefits

• End to end stackable
• Polarization to prevent mismating
• Friction lock for secure mating connection
• High temperature housings to withstand the wave solder process

Product Application Information

These 2.54 mm Dubox connectors are ideal for use in applications in various different markets. These markets include industrial, instrumentation and medical, consumer, communications and data.

Amphenol FCI 2.54mm Dubox Series Interconnection System

Specifications
Attribute Value
Series DUBOX
Pitch 2.54mm
Number of Contacts 3
Number of Rows 1
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Material Phosphor Bronze
Contact Plating Gold
Current Rating 3A
Available to back order for despatch 27/11/2019
Price Each (In a Pack of 100)
£ 0.434
(exc. VAT)
£ 0.521
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.434
£43.40
500 - 900
£0.356
£35.60
1000 - 2400
£0.321
£32.10
2500 - 4900
£0.286
£28.60
5000 +
£0.272
£27.20
*price indicative
