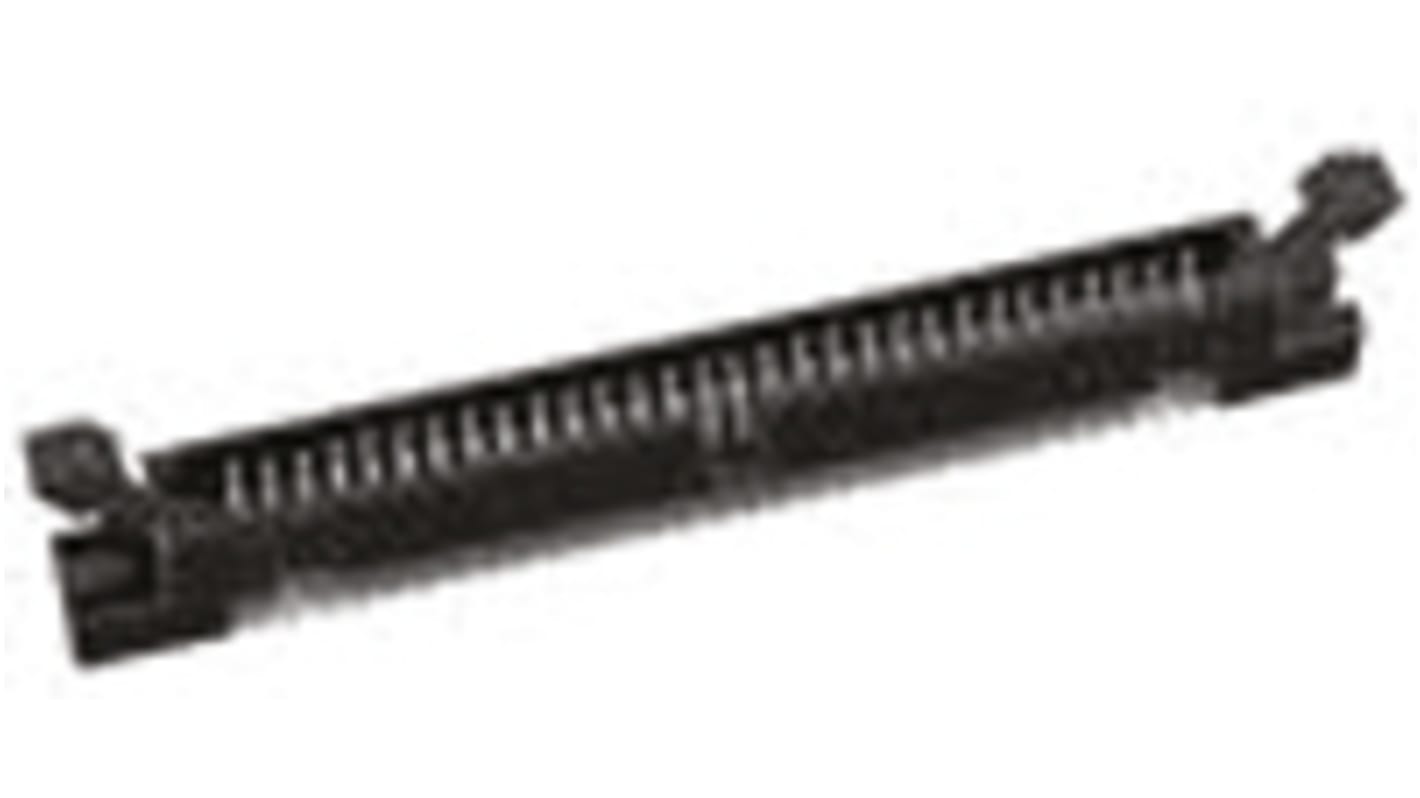

3M N4600 Series Straight Surface Mount PCB Header, 34 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 827-7267
- Mfr. Part No.:
- N4634-2000RB
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 827-7267
- Mfr. Part No.:
- N4634-2000RB
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Series | N4600 | |
| Pitch | 2.54mm | |
| Number of Contacts | 34 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Current Rating | 1.25A | |
Select all | ||
|---|---|---|
Brand 3M | ||
Series N4600 | ||
Pitch 2.54mm | ||
Number of Contacts 34 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Current Rating 1.25A | ||
- COO (Country of Origin):
- US
High Temperature Surface Mount Headers, N4600 Series
The N4500 series surface mount headers have been designed to with stand high process temperatures of up to 260 °C. Normal ambient temperature range is -55 to +105 °C. They feature gull wing leads ensuring a reliable connection which is easily inspected. Maintenance and failures due to pin damaged are reduced thanks to the shrouded design and the leads remain protected within the body shadow.
