Hirose DF12 Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 779-3308
- Mfr. Part No.:
- DF12B(3.0)-50DP-0.5V(86)
- Brand:
- Hirose
2810 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£0.572
(exc. VAT)
£0.686
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | £0.572 | £2.86 |
| *price indicative | ||
- RS Stock No.:
- 779-3308
- Mfr. Part No.:
- DF12B(3.0)-50DP-0.5V(86)
- Brand:
- Hirose
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

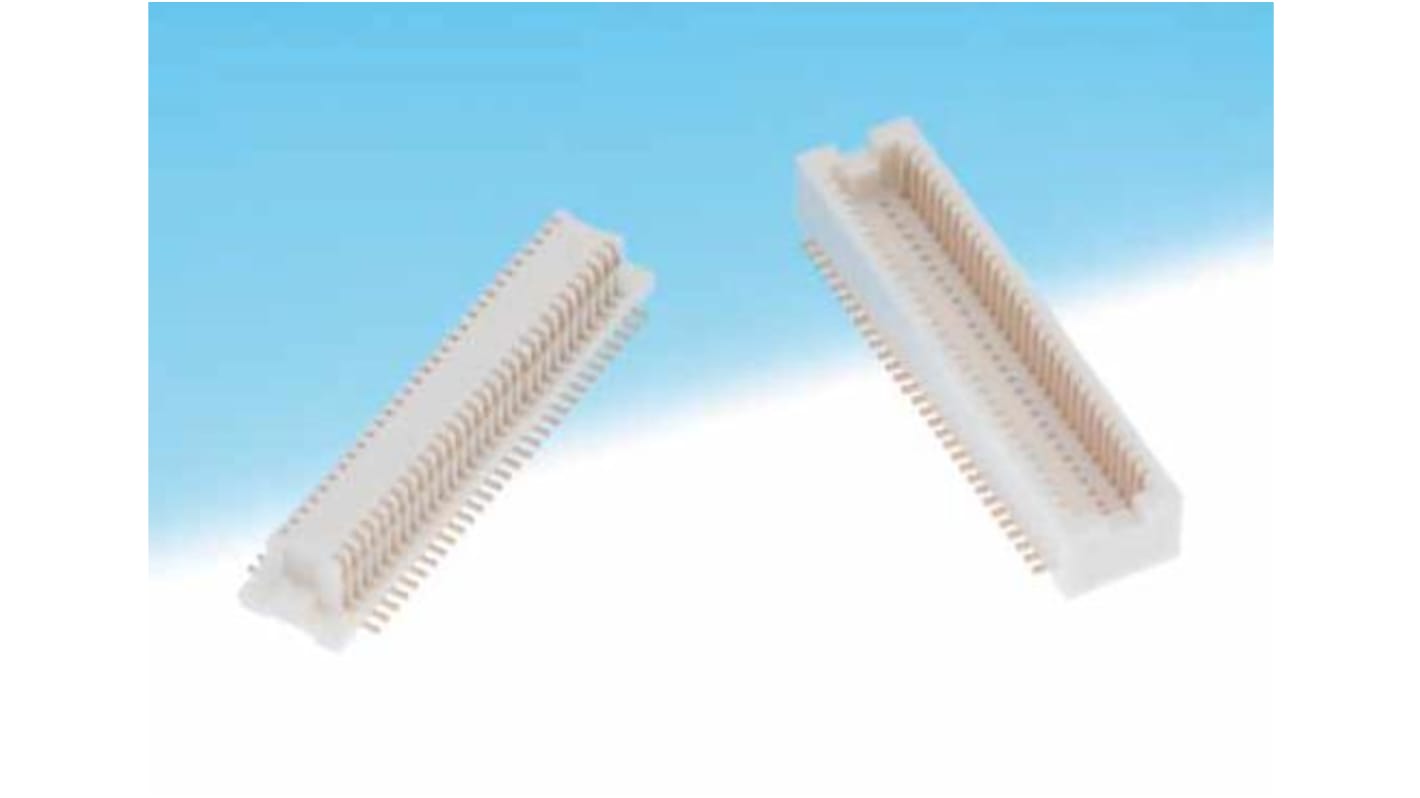

0.5mm Hirose SMT Board to Board Header with Fitting - DF12B Series
DF12 series straight, SMT mounting, ultra-miniature Board to Board, double row Header connectors with a 0.5mm contact pitch available with 3.0, 3.5, 4.0 or 5.0 mm stacking heights. These 0.5mm PCB mount double row Board to Board Header connectors have a UL94V-0 polyamide body and gold plated contacts.
DF12 SMT Board to Board Header connectors with part numbers: DF12Bxx - xxxx--xxxx have metal fittings for solder retention.
DF12 SMT Board to Board Header connectors with part numbers: DF12Bxx - xxxx--xxxx have metal fittings for solder retention.
Applications:
• Mobile phone
• LCD
• Note PC
• LCD
• Note PC
Note
Specifications
Attribute | Value |
|---|---|
| Series | DF12 |
| Pitch | 0.5mm |
| Number of Contacts | 50 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 300.0mA |
| Voltage Rating | 50.0 V |
- RS Stock No.:
- 779-3308
- Mfr. Part No.:
- DF12B(3.0)-50DP-0.5V(86)
- Brand:
- Hirose
