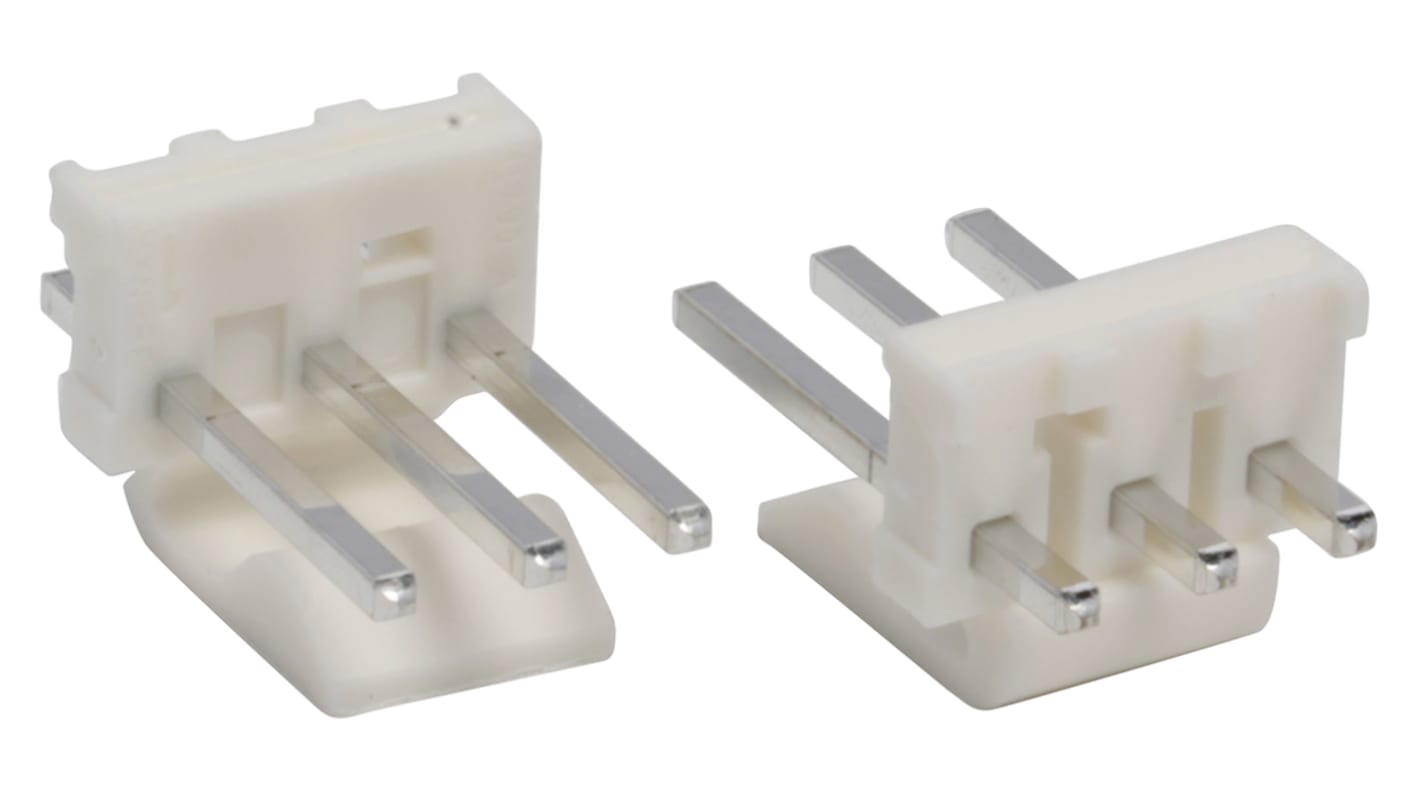

Molex KK 396 Series Straight Through Hole Pin Header, 3 Contact(s), 3.96 mm Pitch, 1 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 pack of 10 units)*

£1.96

(exc. VAT)

£2.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 600 unit(s) ready to ship
  • Plus 530 unit(s) ready to ship from another location
  • Plus 36,020 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.196£1.96

*price indicative

Packaging Options:
RS Stock No.:
679-5684
Mfr. Part No.:
26-60-4030
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

Pin Header

Series

KK 396

Current

7A

Pitch

3.96mm

Housing Material

Polyester

Number of Contacts

3

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Unshrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Brass

Contact Plating

Tin

Termination Type

Solder

Minimum Operating Temperature

-40°C

Row Pitch

3.96mm

Maximum Operating Temperature

80°C

Tail Pin Length

3.56mm

Contact Gender

Male

Standards/Approvals

No

Mating Pin Length

11.43mm

Voltage

250 V

Distrelec Product Id

304-43-548

COO (Country of Origin):
MX

Molex Pin Header, Polyester Housing, Through-Hole Mounting - KK 396 Series - 26-60-4030


For fuss-free connection of wires to your circuit board, pick this straight pin header from Molex. It has three contacts to give you multi-component control, simplifying the wiring needs of your setup. The polyester housing does double duty by providing impact protection in harsh environments and insulation against electrical hazards. Through-hole mounting ensures a firm hold on your board, which comes in handy if your system's prone to vibration.

Features & Benefits


• Tin-plated brass contacts resist wear and corrosion to deliver long-lasting service

• Pitch of 3.96mm provides safe spacing between contacts to prevent short circuits

• Header is polarised to its mating part to prevent incorrect connection

Applications


• Consumer electronics

• Medical equipment

• Transportation industry

Is this header flame-resistant?


Yes, this unit stops burning in 10 seconds or less in the event of a fire, so it reduces the spread of flames.

Vertical headers, 41791 Series


Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.

3.96mm Molex KK Range
