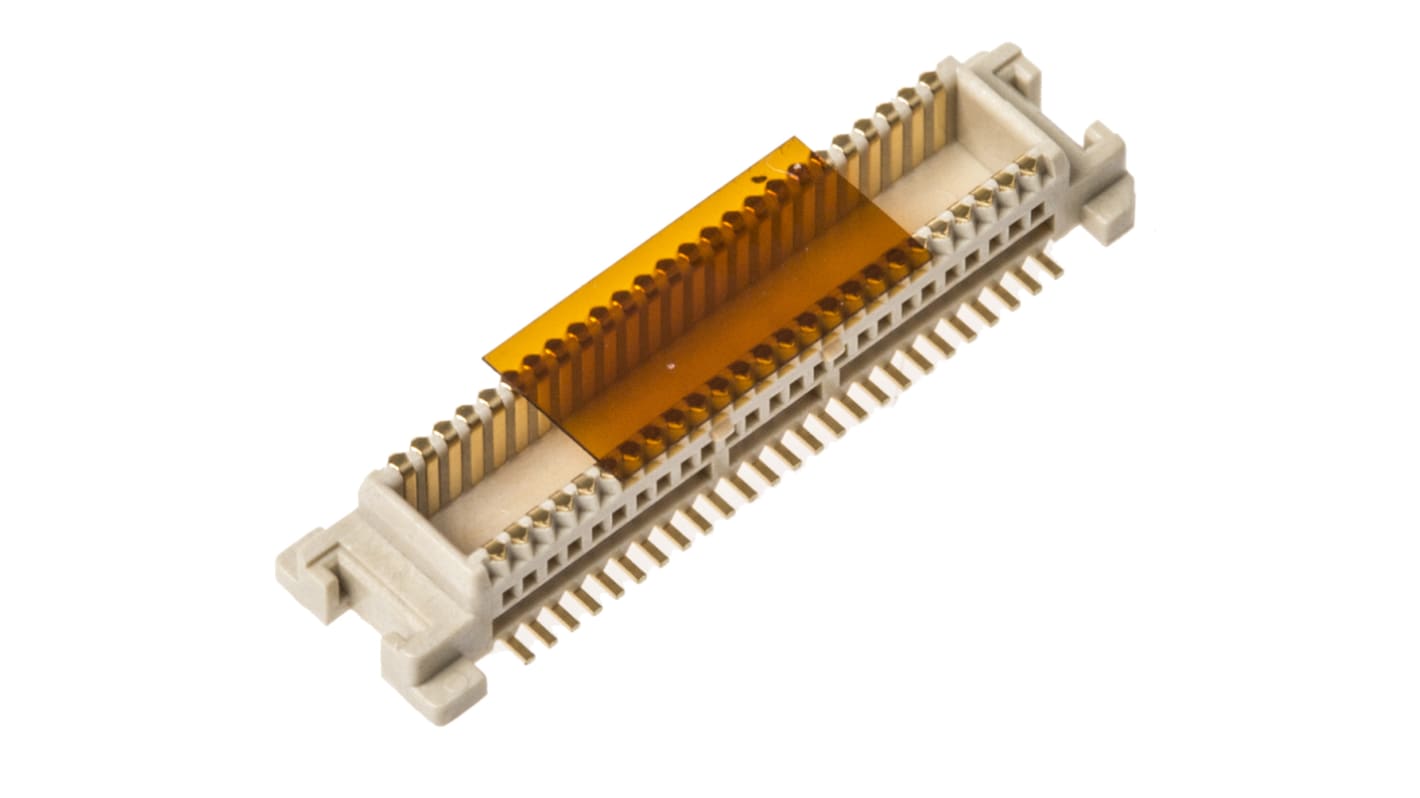

Molex SlimStack Series Straight Surface Mount PCB Header, 50 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 670-2547
- Mfr. Part No.:
- 53748-0504
- Brand:
- Molex
Discontinued
- RS Stock No.:
- 670-2547
- Mfr. Part No.:
- 53748-0504
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | SlimStack | |
| Pitch | 0.5mm | |
| Number of Contacts | 50 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Board to Board | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Current Rating | 500.0mA | |
| Series Number | 53748 | |
| Voltage Rating | 50.0 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series SlimStack | ||
Pitch 0.5mm | ||
Number of Contacts 50 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Board to Board | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Current Rating 500.0mA | ||
Series Number 53748 | ||
Voltage Rating 50.0 V | ||
SlimStack™ Micro SMT Stacking Connectors
SlimStack™ Plugs and Receptacles available in stacking heights of:
1.5mm SlimStack™ Receptacles Series 54722 and Plugs Series 55560
3.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53748
4.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53916
1.5mm SlimStack™ Receptacles Series 54722 and Plugs Series 55560
3.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53748
4.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53916
Gold plated contacts for high reliability connectivity
High density capability
Secure retention against shock and vibration
High density capability
Secure retention against shock and vibration
Molex PCB Header
The Molex PCB SlimStack 53748 series surface mount vertical PCB header has 50-way contacts. It has a voltage rating of 50V and a current rating of 500mA. The header has gold-plated brass contacts. The design of the SlimStack board-to-board connectors includes a metal friction lock that provides extra mating retention. This makes these SlimStack board-to-board connectors ideal for portable applications subjected to vibration or shock. It is used in portable and handheld equipment.
Features and Benefits
• Dual row
• High reliability
• Large mating guide
• Operating temperature ranges between -40°C and 105°C
• Pitch size is 0.5mm
• Stack height is 3.00mm
• Termination method is solder
• High reliability
• Large mating guide
• Operating temperature ranges between -40°C and 105°C
• Pitch size is 0.5mm
• Stack height is 3.00mm
• Termination method is solder
The Molex SlimStack™ family of Micro SMT 0.50 mm stacking Board-to-Board connectors have a durable blade-on-beam contact and tails that provide strong solder fillets. The design of the SlimStack Board-to-Board connectors includes a metal friction lock that provides extra mating retention. This makes these SlimStack Board-to-Board connectors ideal for portable applications subjected to vibration or shock.
