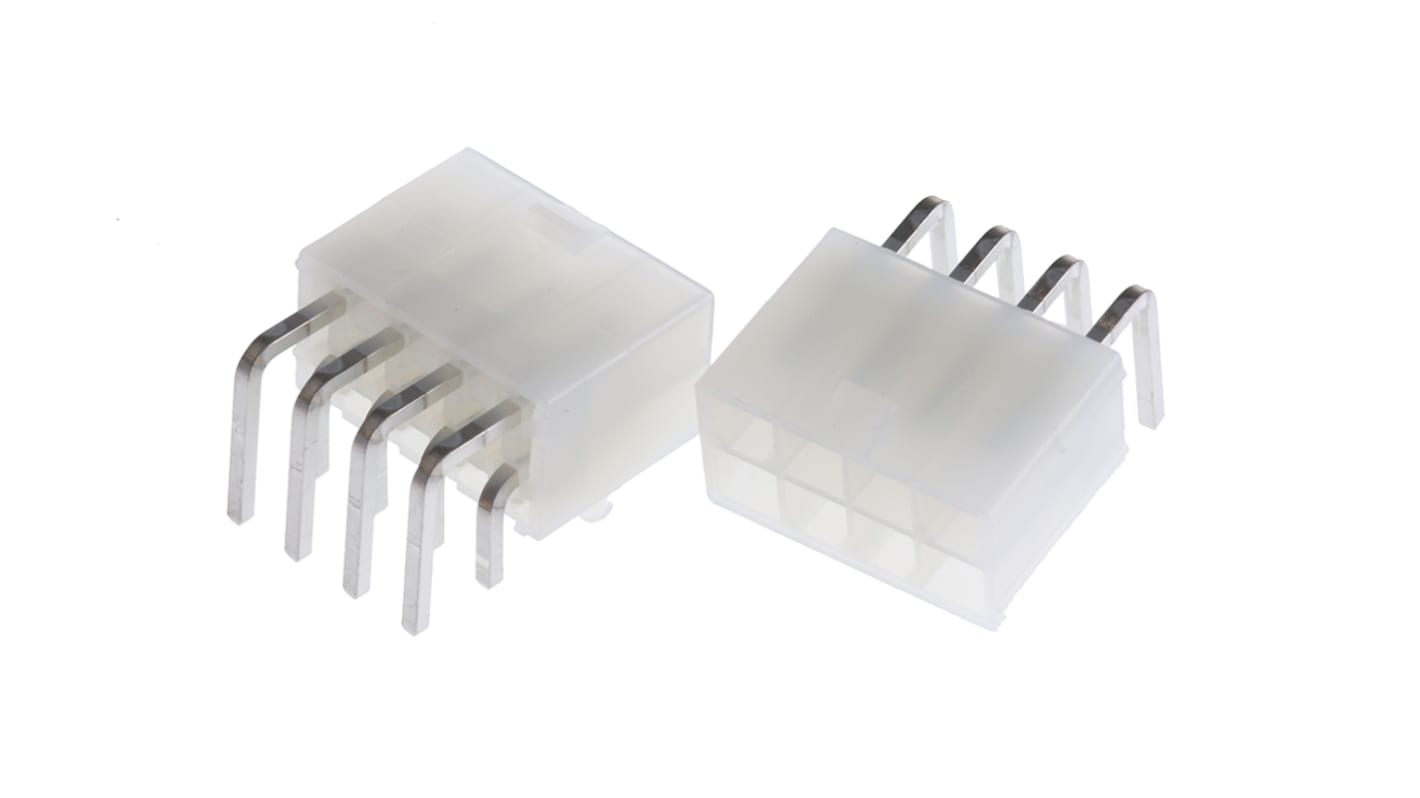

Molex Mini-Fit Jr. Series Right Angle Through Hole PCB Header, 8 Contact(s), 4.2mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 510-9865
- Mfr. Part No.:
- 39-30-1080
- Brand:
- Molex
355 In stock - FREE next working day delivery available
70 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£1.118
(exc. VAT)
£1.342
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 95 | £1.118 | £5.59 |
100 - 370 | £0.762 | £3.81 |
375 - 1495 | £0.732 | £3.66 |
1500 + | £0.708 | £3.54 |
*price indicative |
- RS Stock No.:
- 510-9865
- Mfr. Part No.:
- 39-30-1080
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Mini-Fit Junior 4.2mm PCB Header Connectors
Mini-Fit Junior 4.2 mm pitch PCB headers which form part of the Mini-Fit Junior power connector interconnection system. Mini-Fit Junior power connectors are able to handle up to 9A per circuit making them ideal for use in high current applications. These Mini-Fit Junior PCB headers have fully isolated terminals for protection against, debris, arcing and damage caused by mishandling. The connector housings are also scoop-proof which prevents damage to the pin terminals when mated at a severe angle. The housings of these PCB headers incorporate polarization and keying features to prevent misalignment and mismating with the receptacle. A positive locking mechanism provides a secure connection with the mating receptacle and prevents accidental unmating caused by excessive shock or vibration. An audible click indicates that the connector is fully mated. For a secure connection to the PCB versions of these Mini-Fit Junior PCB headers are available with snap-in plastic PCB peg locks. Versions are also available with PCB mounting flanges. These Mini-Fit Junior 4.2 mm PCB headers are available with a UL94V-0 or UL94V-2 housing material and with a range of contact configurations and contact platings
Features and Benefits
• Can handle Up to 9A current per circuit
• Fully isolated terminals
• Scoop-proof housings to prevent contact damage
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation
• Versions with PCB retention pegs and mounting flanges
• Fully isolated terminals
• Scoop-proof housings to prevent contact damage
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation
• Versions with PCB retention pegs and mounting flanges
Product Application Information
Mini-Fit Junior power connectors are ideal for use in high current, high density wire to wire and wire to board applications that require design flexibility. Applications include consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.
Molex Mini-Fit Jr. Series PCB Header, Through Hole Mount, Solder Termination - 39-30-1080
This right angle PCB header by Molex known as the Mini-Fit Jr. Series is designed for wire to board connectors. Ideal for a variety of applications, this connector boasts a pitch of 4.2 mm and offers a current rating of 7A. Its
Features & Benefits
• Brass and tin contact plating for optimal conductivity
• Through hole mounting style for secure installation
• Shrouded design for added protection
• Solder termination method for easy connectivity
• Dual rows with 8 pins each, providing ample connection points
• High voltage rating of 600V for safety
• Through hole mounting style for secure installation
• Shrouded design for added protection
• Solder termination method for easy connectivity
• Dual rows with 8 pins each, providing ample connection points
• High voltage rating of 600V for safety
Applications
• Used in automation equipment
• Ideal for industrial automation applications
• Suitable for power suppliers in industrial settings
• Commonly found in electronic control modules for commercial vehicles
• Also used in gaming machines and vending machines
• Ideal for industrial automation applications
• Suitable for power suppliers in industrial settings
• Commonly found in electronic control modules for commercial vehicles
• Also used in gaming machines and vending machines
Can it handle high voltage applications?
This connector is rated for a voltage of 600.0 V, making it suitable for various high voltage scenarios.
Will it provide a secure connection?
With a shrouded design and solder termination method, this PCB header ensures a reliable and secure connection.
Is it suitable for industrial use?
Yes, this Mini-Fit Jr. Series connector is ideal for industrial automation equipment and power suppliers in industrial settings.
Molex Minifit Jr.™ Series
Specifications
Attribute | Value |
---|---|
Series | Mini-Fit Jr. |
Pitch | 4.2mm |
Number of Contacts | 8 |
Number of Rows | 2 |
Body Orientation | Right Angle |
Shrouded/Unshrouded | Shrouded |
Connector System | Wire to Board |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Plating | Tin |
Contact Material | Brass |
Current Rating | 7.0A |
Series Number | 5569 |
Tail Pin Length | 3.6mm |
Voltage Rating | 600.0 V |
