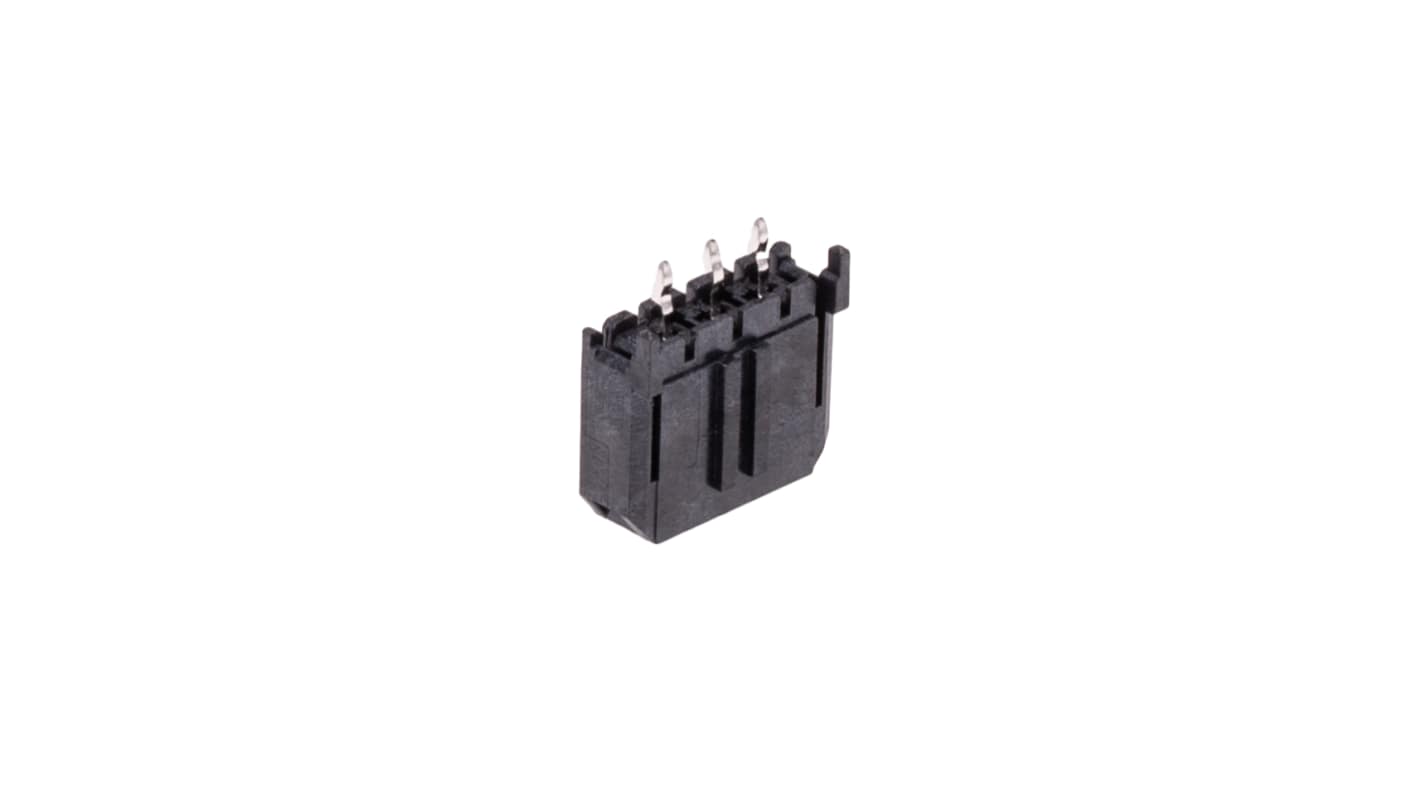

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 3 Contact(s), 3.0mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 447-6883
- Mfr. Part No.:
- 43650-0315
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.30
(exc. VAT)
£6.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 615 unit(s) ready to ship
- Plus 80 unit(s) ready to ship from another location
- Plus 170 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 95 | £1.06 | £5.30 |
100 - 370 | £0.728 | £3.64 |
375 - 1495 | £0.698 | £3.49 |
1500 - 2995 | £0.582 | £2.91 |
3000 + | £0.56 | £2.80 |
*price indicative
- RS Stock No.:
- 447-6883
- Mfr. Part No.:
- 43650-0315
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | Micro-Fit 3.0 | |
Pitch | 3.0mm | |
Number of Contacts | 3 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Through Hole | |
Connector System | Wire to Board | |
Termination Method | Through Hole | |
Contact Plating | Tin | |
Contact Material | Brass | |
Current Rating | 8.5A | |
Series Number | 43650 | |
Voltage Rating | 600 V | |
Select all | ||
---|---|---|
Brand Molex | ||
Series Micro-Fit 3.0 | ||
Pitch 3.0mm | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
Connector System Wire to Board | ||
Termination Method Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Current Rating 8.5A | ||
Series Number 43650 | ||
Voltage Rating 600 V | ||
Molex Micro-Fit 3.0 Series PCB Header, 8.5A Current Rating, 3mm Pitch - 43650-0315
This PCB header is an essential element in the Micro-Fit 3.0 series, crafted for versatility in wire-to-board connections. It offers a dependable solution across various applications, utilising robust materials and advanced design to meet performance and safety standards. Its shrouded configuration with vertical orientation makes it suitable for installations with limited space.
Features & Benefits
• Tin-plated brass contacts ensure good conductivity and resistance to corrosion
• High temperature and glow wire compatibility for additional safety
• Designed for through hole mounting, simplifying assembly
• High temperature and glow wire compatibility for additional safety
• Designed for through hole mounting, simplifying assembly
Applications
• Ideal for power distribution boards
• Commonly used in consumer electronic devices
• Suitable for automation equipment with space constraints
• Utilised for signal integrity in data communications equipment
• Commonly used in consumer electronic devices
• Suitable for automation equipment with space constraints
• Utilised for signal integrity in data communications equipment
What is the maximum voltage this product can handle?
The maximum voltage it can accommodate is 600V, suitable for various high-voltage applications.
Can it withstand extreme temperatures?
Yes, it operates effectively within a temperature range of -40°C to +105°C, enabling performance in harsh environments.
How many mating cycles can it endure?
It is rated for up to 30 mating cycles, ensuring durability in applications with frequent connections and disconnections.
What kind of mounting process does it require?
This connector employs a through hole mounting method, making installation simple and secure.
