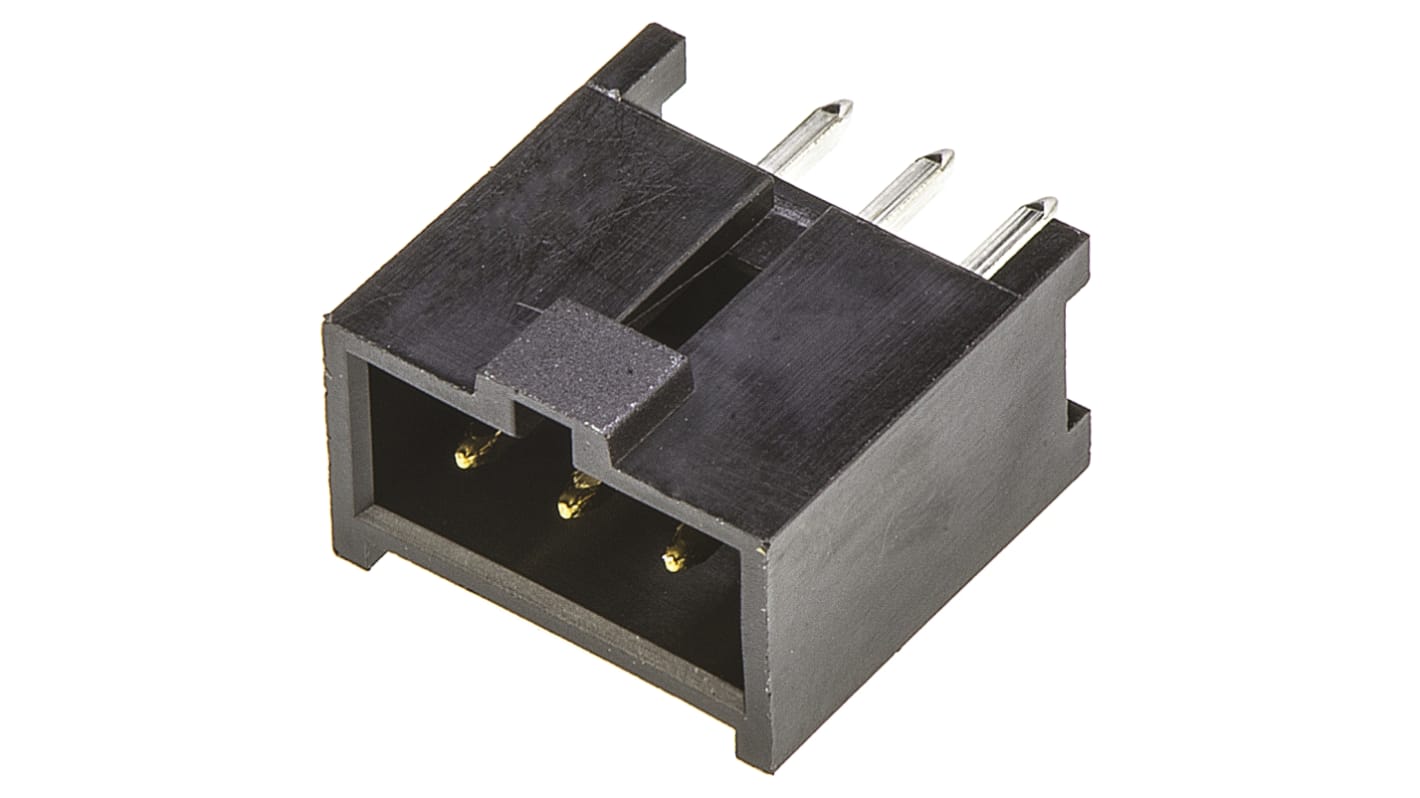

Molex C-Grid III Series Straight Through Hole PCB Header, 3 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 360-6689
- Distrelec Article No.:
- 304-29-098
- Mfr. Part No.:
- 90136-1203
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.21
(exc. VAT)
£11.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship from another location
- Plus 95 unit(s) shipping from 17 March 2026
- Plus 230 unit(s) shipping from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £1.842 | £9.21 |
| 100 - 370 | £1.232 | £6.16 |
| 375 - 1495 | £1.182 | £5.91 |
| 1500 - 2995 | £1.046 | £5.23 |
| 3000 + | £1.006 | £5.03 |
*price indicative
- RS Stock No.:
- 360-6689
- Distrelec Article No.:
- 304-29-098
- Mfr. Part No.:
- 90136-1203
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | C-Grid III | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Polyester | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Tail Pin Length | 2.9mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Mating Pin Length | 6.75mm | |
| Standards/Approvals | No | |
| Voltage | 350 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series C-Grid III | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Polyester | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Tail Pin Length 2.9mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Mating Pin Length 6.75mm | ||
Standards/Approvals No | ||
Voltage 350 V | ||
Molex PCB Header, 3 Way, 3A Current Rating - C-Grid III Series - 90136-1203
Increase the connectivity of your PCB with this header from Molex. It supports up to three connections to transmit power and data across your appliances and enhance the versatility of your board-mounted system. The unit's gold-plated brass contacts are highly conductive, so you can be sure of reliable connections. Thanks to its hard-wearing polyester shroud, the unit protects its contacts against impact to deliver a longer service life.
• Straight orientation supports common connectors
• 2.54mm pitch for compact mounting even on small PCBs
• Mounts by soldering for a secure connection to your board
• Locks connectors in place to prevent disruption from movement
Applications
• Medical equipment
• Communications devices
• Aerospace industry
What's a shroud on a PCB header?
A shroud is a protective shell that prevents damage to the header's contacts. It also lets the unit lock connectors in place to achieve more secure connections.
Straight Locking Header
Straight header suitable for use with locking housings
2.54mm Molex C-Grid III Range
Standards
DIN 41651; HE13/14
