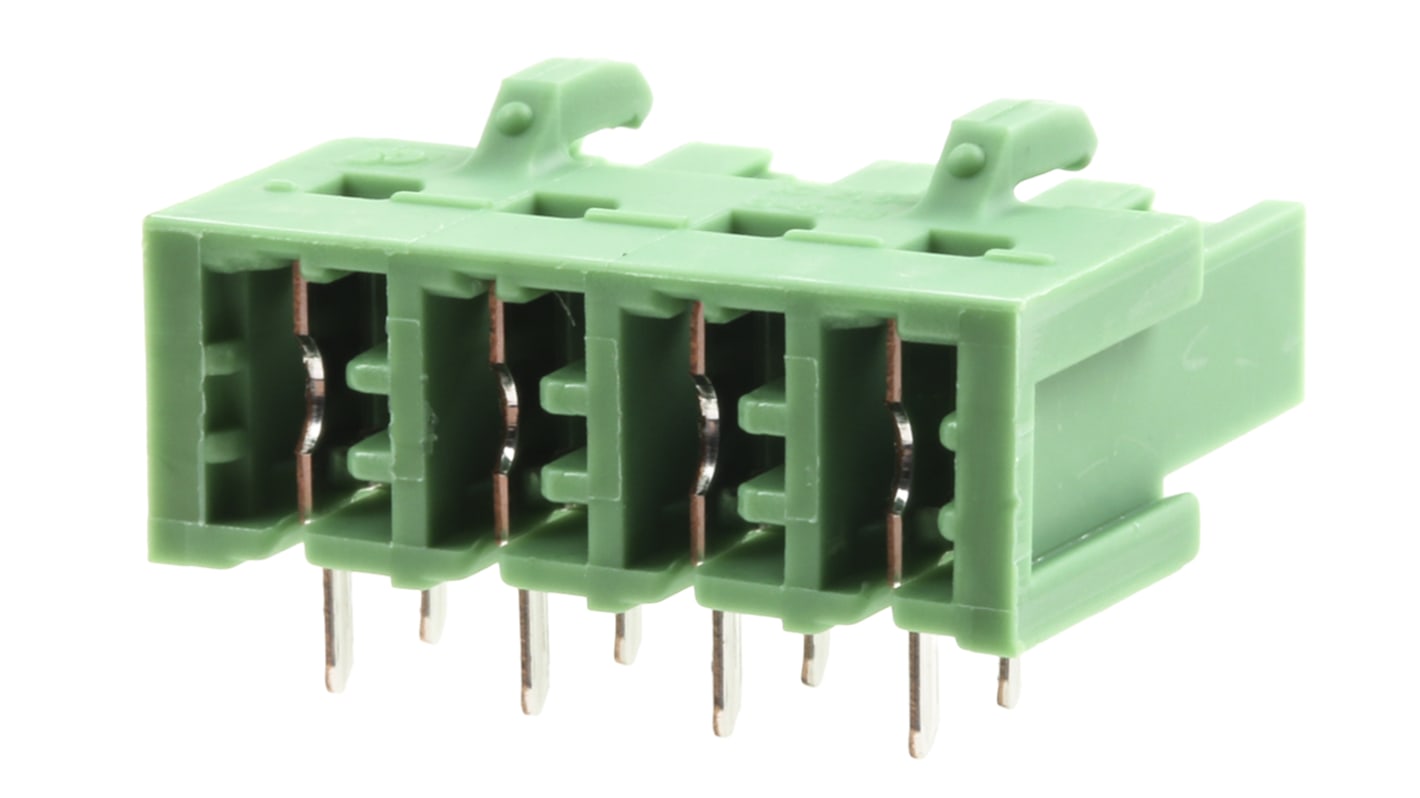

Phoenix Contact IC 2.5/ 4-G-5.08 Series Right Angle Through Hole PCB Header, 4 Contact(s), 5.08mm Pitch, 1 Row(s)

View all PCB Headers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
292-9206
Mfr. Part No.:
1786420
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

IC 2.5/ 4-G-5.08

Pitch

5.08mm

Number of Contacts

4

Number of Rows

1

Body Orientation

Right Angle

Mounting Type

Through Hole

Connector System

Wire to Board

Termination Method

Solder

Current Rating

12A

Voltage Rating

320 V

Non Compliant

COO (Country of Origin):
DE

Phoenix Contact CLASSIC COMBICON IC & ICV 5.08mm Inverted Headers


CLASSIC COMBICON IC & ICV 5.08mm pitch inverted PCB though hole mount terminal block headers rated at 12A / 250V (Class III), 630V (Class II). These CLASSIC COMBICON IC inverted pluggable terminal block headers provide a clear separation of PCB inputs/outputs and can be used with the MSTB 2,5 headers for a primary/secondary PCB connection.
Part numbers prefixed with 17864 (IC) and 17865 (IC) are right angle mount
Part numbers prefixed with 17859 (ICV) and 17860 (ICV) are vertical mount
Part numbers prefixed with 18251 (IC) are right angle mount with a threaded flange
For marker cards see stock numbers 437-3598, 804-0961 and 437-3605
