WAGO 231 Series Straight PCB Header, 2 Contact(s), 7.62 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 278-1178
- Mfr. Part No.:
- 231-732/001-000
- Brand:
- WAGO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 278-1178
- Mfr. Part No.:
- 231-732/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 231 | |
| Current | 12A | |
| Pitch | 7.62mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -60°C | |
| Row Pitch | 7.62mm | |
| Tail Pin Length | 5mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | Approvals per IEC/EN 60664-1, CSA, UL 1059, UL 1977 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 231 | ||
Current 12A | ||
Pitch 7.62mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature -60°C | ||
Row Pitch 7.62mm | ||
Tail Pin Length 5mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals Approvals per IEC/EN 60664-1, CSA, UL 1059, UL 1977 | ||
- COO (Country of Origin):
- PL

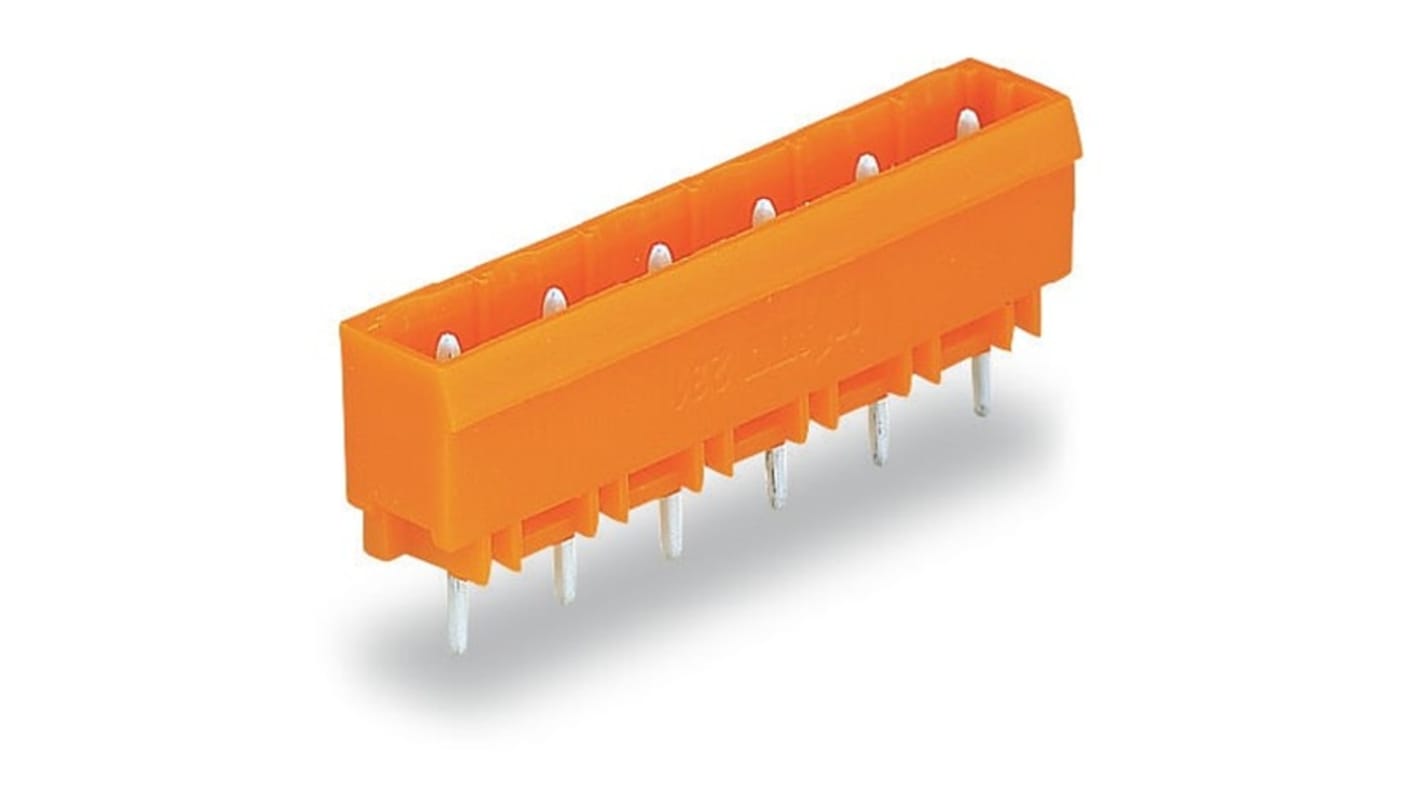

The WAGO THT male header used for horizontal or vertical PCB mounting via straight or angled solder pins comes in orange colour.
With coding fingers
Polyamide PA66 insulation
