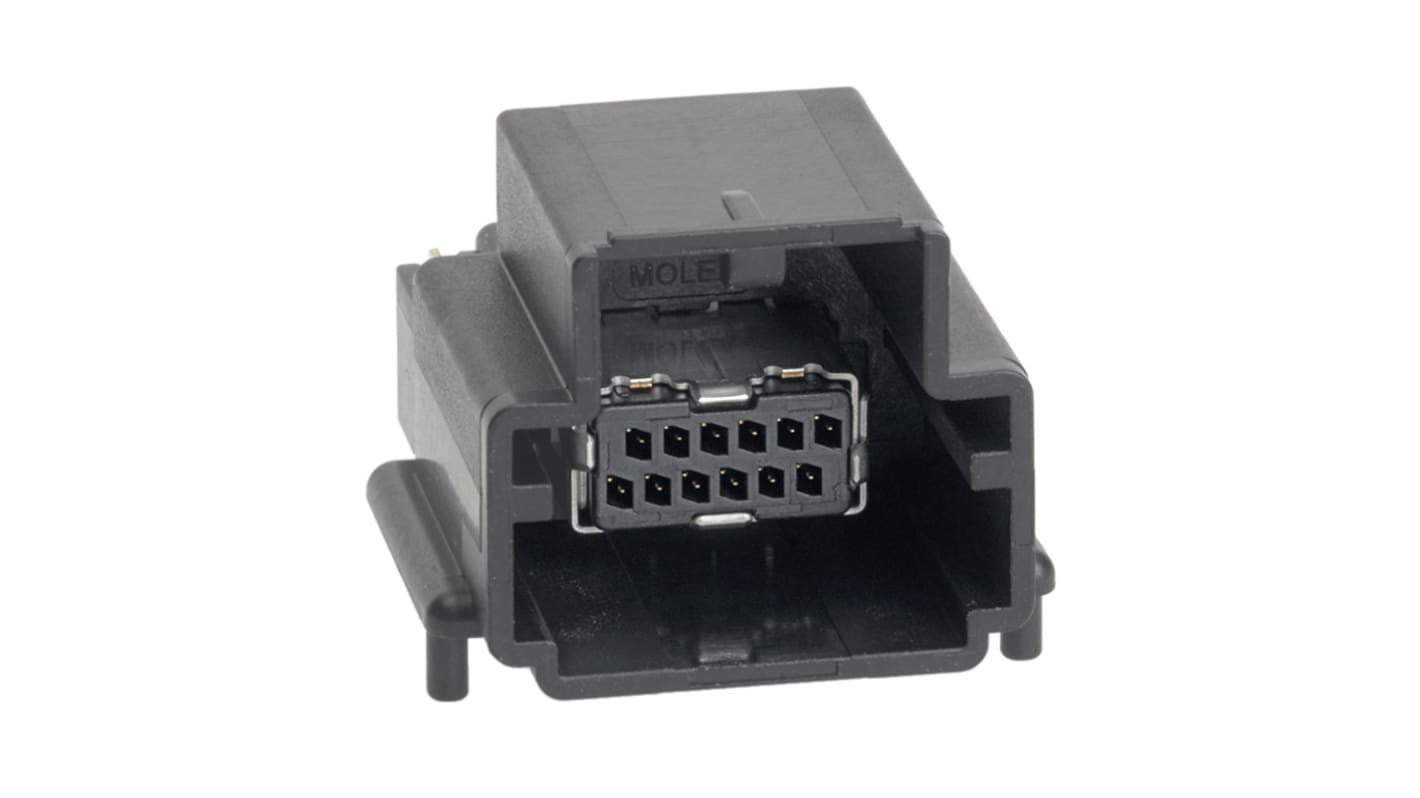

Molex 34861 Series Right Angle PCB Header, 12 Contact(s), 1.27 mm Pitch, 2 Row
- RS Stock No.:
- 262-3491
- Mfr. Part No.:
- 348611406
- Brand:
- Molex
Subtotal (1 reel of 130 units)*
£759.85
(exc. VAT)
£911.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 130 + | £5.845 | £759.85 |
*price indicative
- RS Stock No.:
- 262-3491
- Mfr. Part No.:
- 348611406
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 34861 | |
| Product Type | PCB Header | |
| Current | 1.5A | |
| Pitch | 1.27mm | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold, Tin | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 1.27mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CHINA RoHS, EU ELV, EU RoHS | |
| Voltage | 36 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 34861 | ||
Product Type PCB Header | ||
Current 1.5A | ||
Pitch 1.27mm | ||
Housing Material High Temperature Thermoplastic | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Contact Plating Gold, Tin | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 1.27mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CHINA RoHS, EU ELV, EU RoHS | ||
Voltage 36 V | ||
- COO (Country of Origin):
- CN
The Molex 12 circuit PCB header having current rating of 1.5 A and voltage rating of 36 V. It is made up of copper alloy material and gold plating.
Black in color
Low halogen
