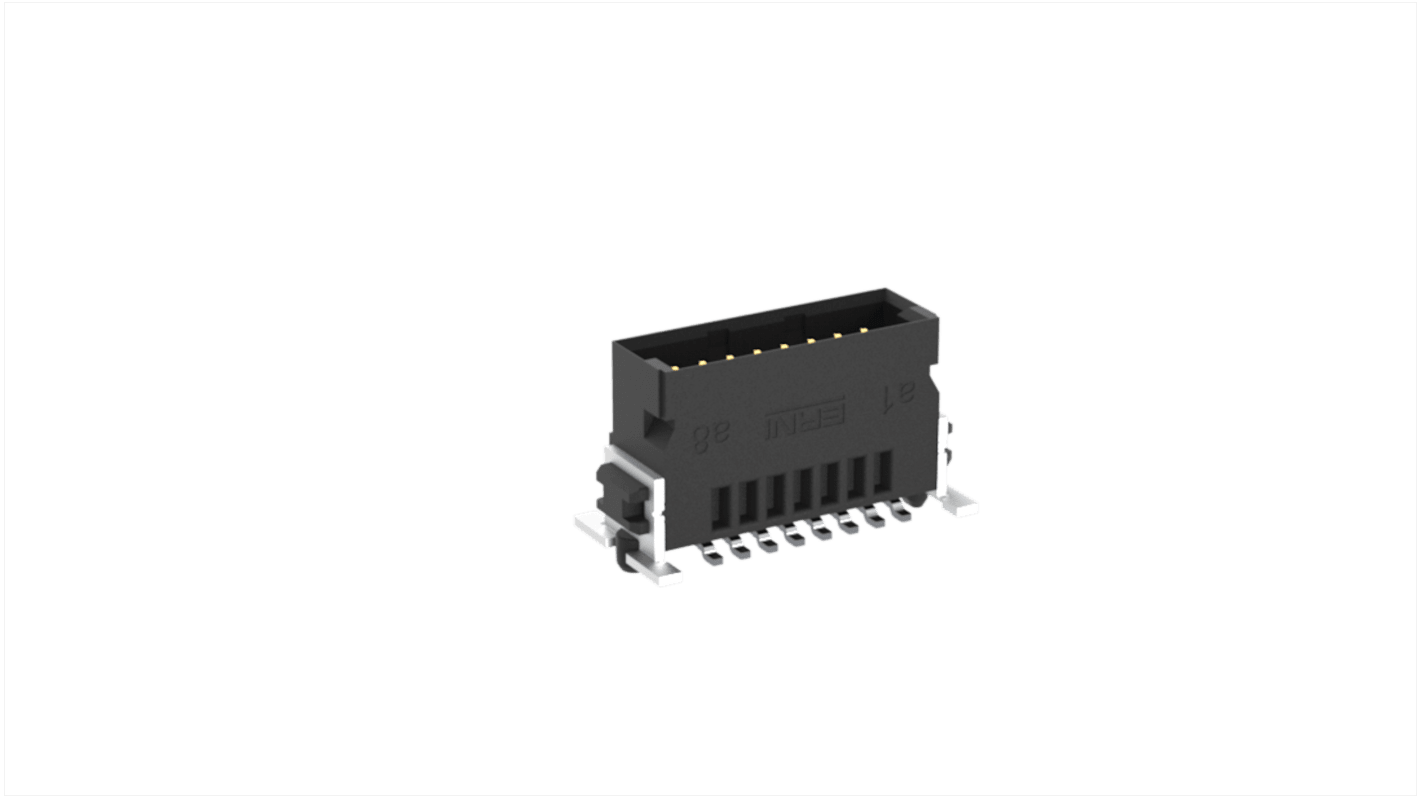

ERNI SMC Series Surface Mount PCB Header, 16 Contact(s), 1.27mm Pitch, 2 Row(s)
- RS Stock No.:
- 246-4207
- Mfr. Part No.:
- 254536 / 254536-E
- Brand:
- ERNI
Bulk discount available
Subtotal (1 tape of 10 units)*
£28.46
(exc. VAT)
£34.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 150 unit(s) shipping from 06 October 2025
- Plus 999,999,840 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 - 90 | £2.846 | £28.46 |
100 + | £2.633 | £26.33 |
*price indicative
- RS Stock No.:
- 246-4207
- Mfr. Part No.:
- 254536 / 254536-E
- Brand:
- ERNI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ERNI | |
Series | SMC | |
Pitch | 1.27mm | |
Number of Contacts | 16 | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Select all | ||
---|---|---|
Brand ERNI | ||
Series SMC | ||
Pitch 1.27mm | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Mounting Type Surface Mount | ||
- COO (Country of Origin):
- DE
The ERNI's 16-pin, male vertical SMC (Small Multiple Connector) connector have a grid of 1.27 mm is reliable and compact connections can be made with them. This SMC connector supports wire-to-board solutions. It is reliable, robust and industry capable with vibration and shock resistance and completely automatically processible.
Compact and reliable with high signal integrity
Data rate of 3Gbit/s
SMT termination with gold-plated contacts
Maximum operating temperature of 125°C
Unmated stacking height of 3.25 mm
Vibration and shock resistant
Data rate of 3Gbit/s
SMT termination with gold-plated contacts
Maximum operating temperature of 125°C
Unmated stacking height of 3.25 mm
Vibration and shock resistant
