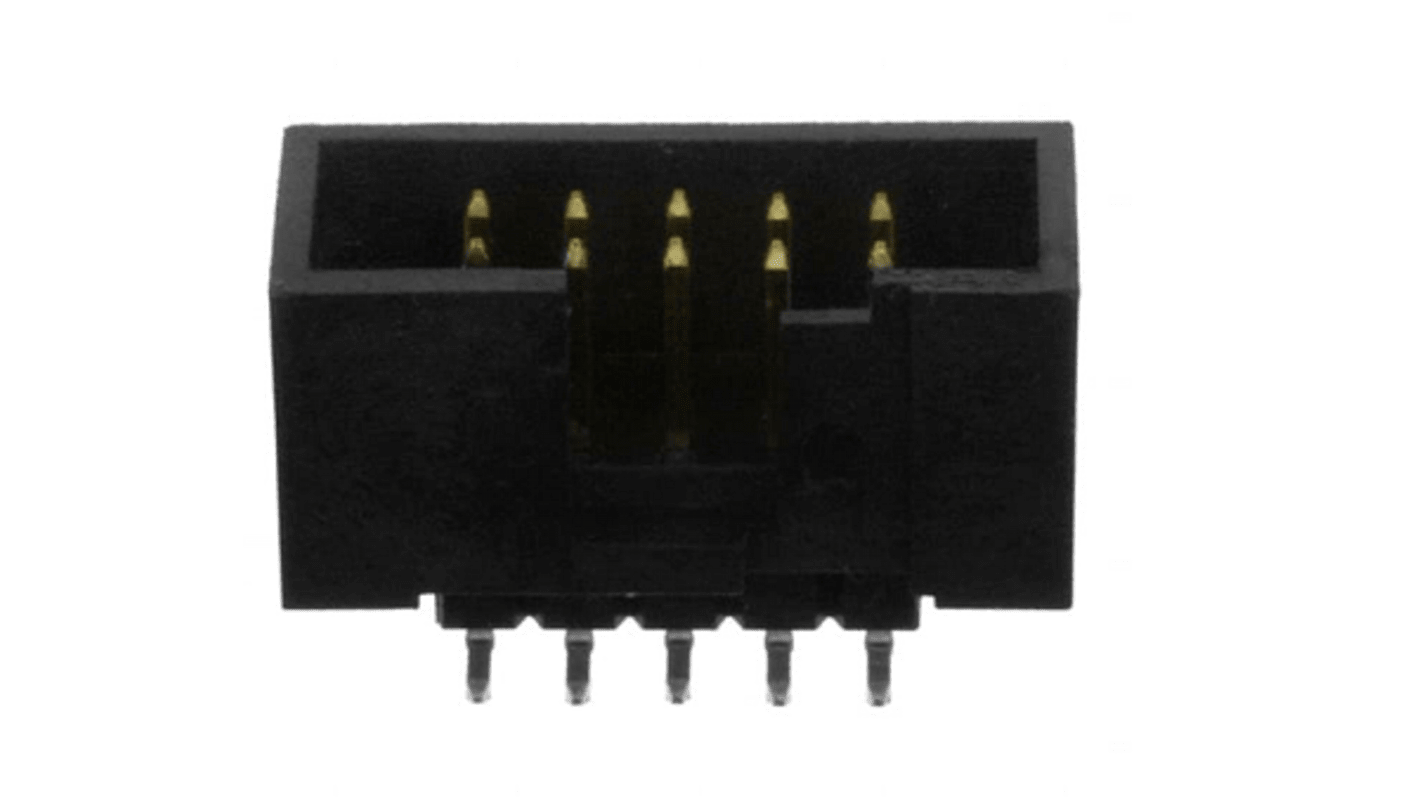

Amphenol Communications Solutions Quickie Series Vertical Surface PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row(s),
- RS Stock No.:
- 246-2985
- Mfr. Part No.:
- 52601-G10-8LF
- Brand:
- Amphenol Communications Solutions
Subtotal (1 pack of 5 units)*
£7.64
(exc. VAT)
£9.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 820 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.528 | £7.64 |
*price indicative
- RS Stock No.:
- 246-2985
- Mfr. Part No.:
- 52601-G10-8LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Product Type | PCB Header | |
| Series | Quickie | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Number of Contacts | 10 | |
| Housing Material | Glass Filled Thermoplastic Polyester | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Cable-to-Board | |
| Mount Type | Surface | |
| Contact Plating | Gold, Nickel | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Contact Gender | Male | |
| Tail Pin Length | 3.05mm | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 5.84mm | |
| Standards/Approvals | European Union Directive 2002/95/IEC | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Product Type PCB Header | ||
Series Quickie | ||
Pitch 2.54mm | ||
Current 3A | ||
Number of Contacts 10 | ||
Housing Material Glass Filled Thermoplastic Polyester | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Cable-to-Board | ||
Mount Type Surface | ||
Contact Plating Gold, Nickel | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Contact Gender Male | ||
Tail Pin Length 3.05mm | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 5.84mm | ||
Standards/Approvals European Union Directive 2002/95/IEC | ||
Voltage 500 V | ||
- COO (Country of Origin):
- CN
The Amphenol ICC Quickie header is a complete solution for flat cable-to-board connection is highly durable and cost-saving connector ensuring a reliable termination.
Four-walled shrouded header
Prevents misalignment
Low profile headers with side window
Industry qualified, proven product
Gold/GXT material plating
