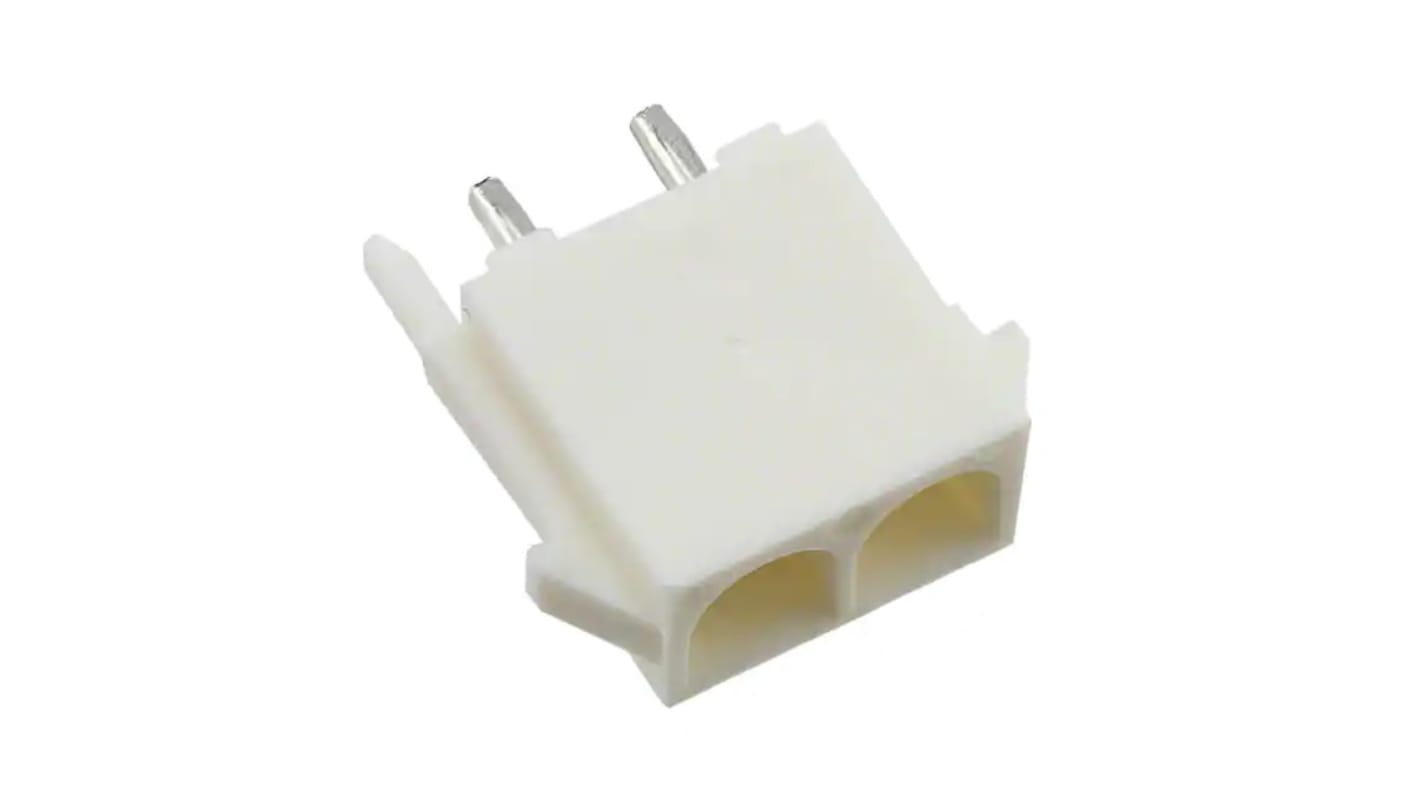

Molex MLX Series Vertical Surface PCB Header, 2 Contact(s), 6.35 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 213-5538
- Mfr. Part No.:
- 432550059
- Brand:
- Molex
Subtotal (1 tray of 102 units)*
£21.216
(exc. VAT)
£25.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 102 + | £0.208 | £21.22 |
*price indicative
- RS Stock No.:
- 213-5538
- Mfr. Part No.:
- 432550059
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | MLX | |
| Pitch | 6.35mm | |
| Current | 20A | |
| Number of Contacts | 2 | |
| Housing Material | Polyester | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 6.35mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 4.3mm | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Voltage | 600 V | |
| Distrelec Product Id | 304-57-231 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series MLX | ||
Pitch 6.35mm | ||
Current 20A | ||
Number of Contacts 2 | ||
Housing Material Polyester | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 6.35mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 4.3mm | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
Voltage 600 V | ||
Distrelec Product Id 304-57-231 | ||
- COO (Country of Origin):
- IN
The Molex 432550059 is a MLX power connector header, it has 2.13mm contact diameter, with 6.35mm pitch, has an orientation of vertical and has a natural colour.
CSA certified
UL certified
