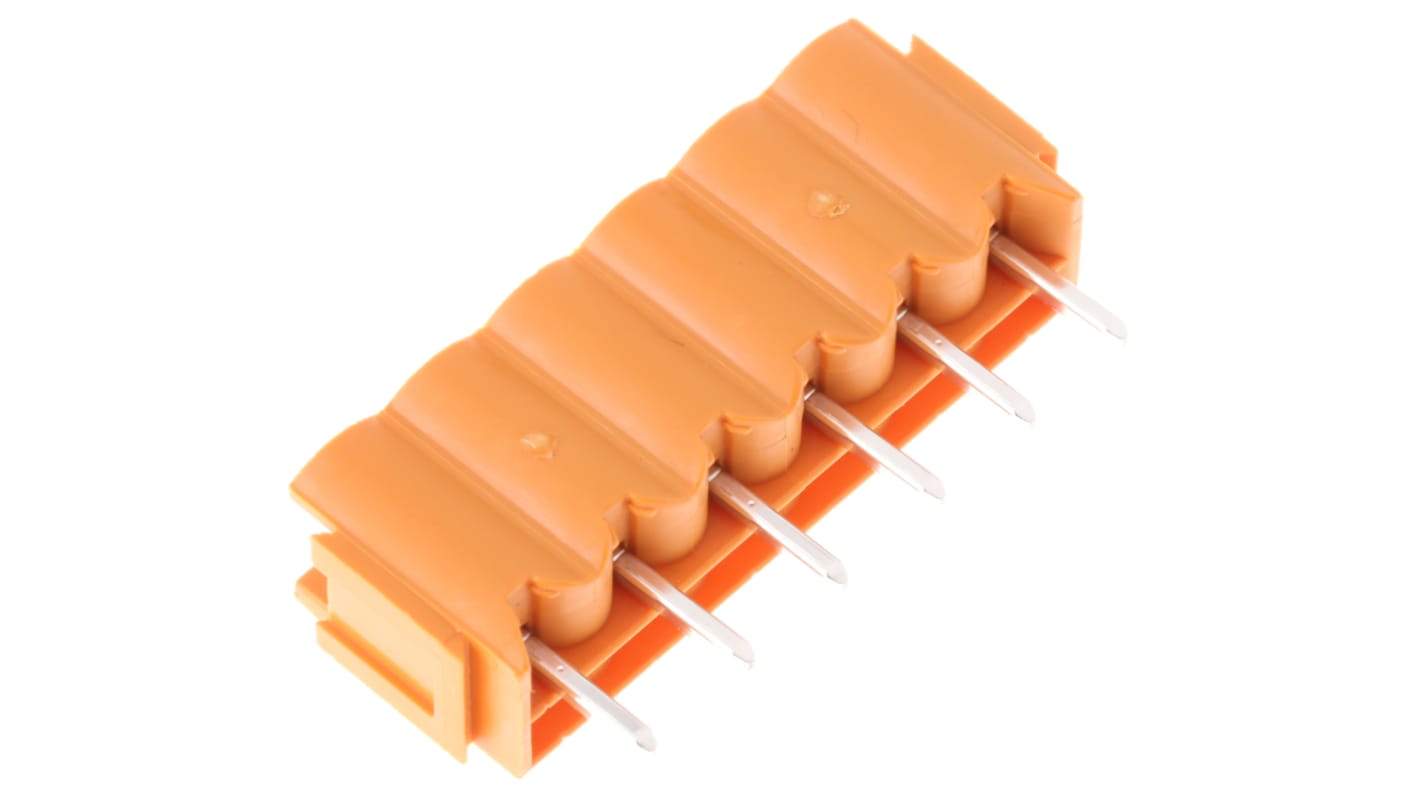

Weidmuller OMNIMATE SL, 6 Way, 1 Row, Straight PCB Header

  • RS Stock No. 209-7006
  • Mfr. Part No. 1524560000
  • Brand Weidmuller
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Closed Ends Vertical PCB Header Connectors

Rated at 8A / 250Vac

Approvals

UL (E 60693); CSA (12400)

//media.rs-online.com/t_line/L2096996-01.jpg

Approvals

UL (E 60693); CSA (12400)

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.

Specifications
Attribute Value
Series OMNIMATE SL
Pitch 5.08mm
Number of Contacts 6
Number of Rows 1
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Material Brass
Current Rating 12A
