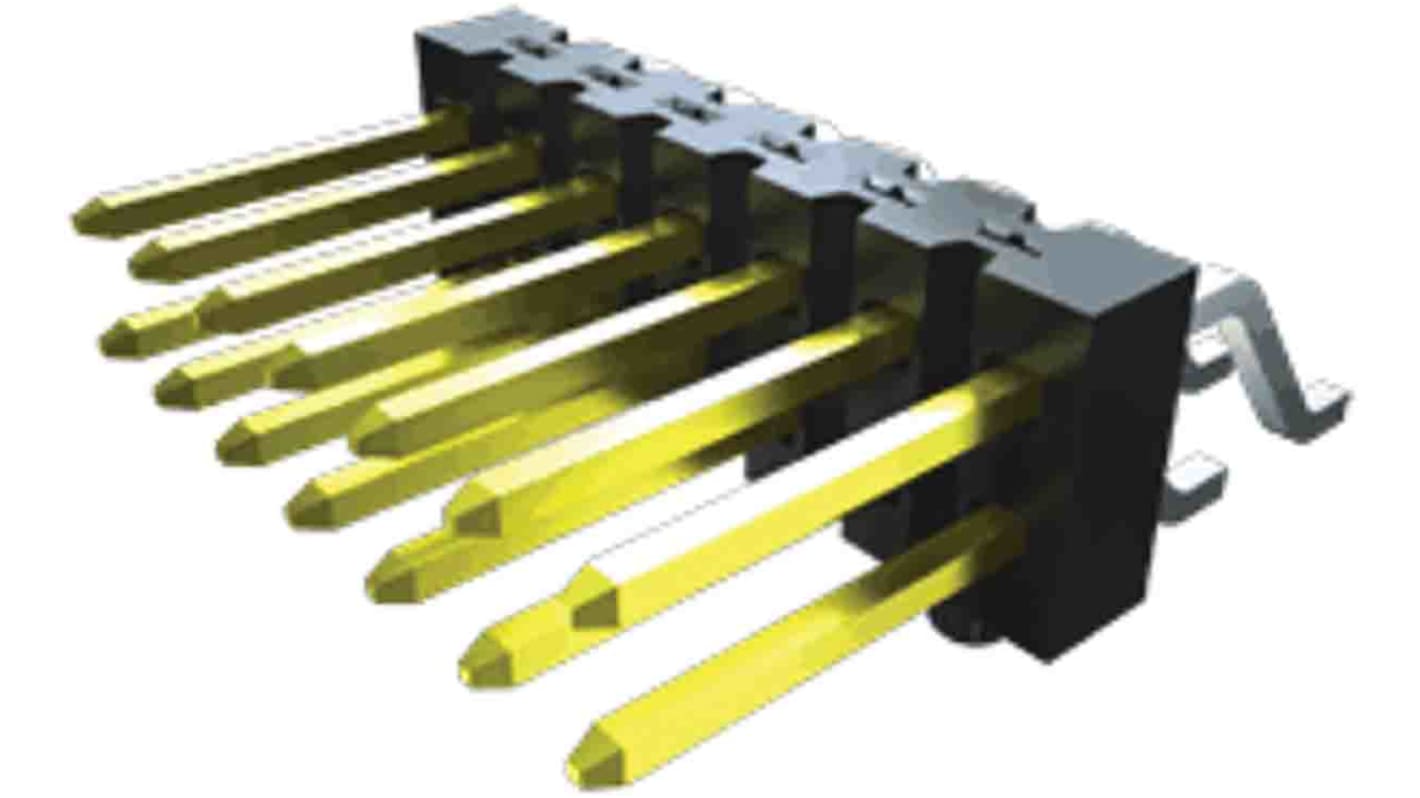

Samtec TSM Series Vertical Surface Mount Pin Header, 14 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 200-1606
- Mfr. Part No.:
- TSM-107-01-T-DV-A
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tube of 32 units)*
£54.816
(exc. VAT)
£65.792
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 32 - 64 | £1.713 | £54.82 |
| 96 - 128 | £1.514 | £48.45 |
| 160 - 288 | £1.313 | £42.02 |
| 320 + | £1.158 | £37.06 |
*price indicative
- RS Stock No.:
- 200-1606
- Mfr. Part No.:
- TSM-107-01-T-DV-A
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | TSM | |
| Pitch | 2.54mm | |
| Number of Contacts | 14 | |
| Number of Rows | 2 | |
| Body Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mounting Type | Surface Mount | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Series TSM | ||
Pitch 2.54mm | ||
Number of Contacts 14 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Surface Mount | ||
The Samtec TSM series is a surface mount terminal strip. Insulating material used is of Black liquid crystal polymer. Terminals are of phosphor bronze. There are total 14 no. of contacts.
Plating used : Au or Sn over 50 μ" (1.27 μm) Ni
Operating temp range: -55 °C to +105 °C with Tin
Operating temp range: -55 °C to +105 °C with Tin
-55 °C to +125 °C with Gold
It is RoHS Compliant
It is RoHS Compliant
