Molex Mini-Fit Jr Series Straight Through Hole PCB Header, 6 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded

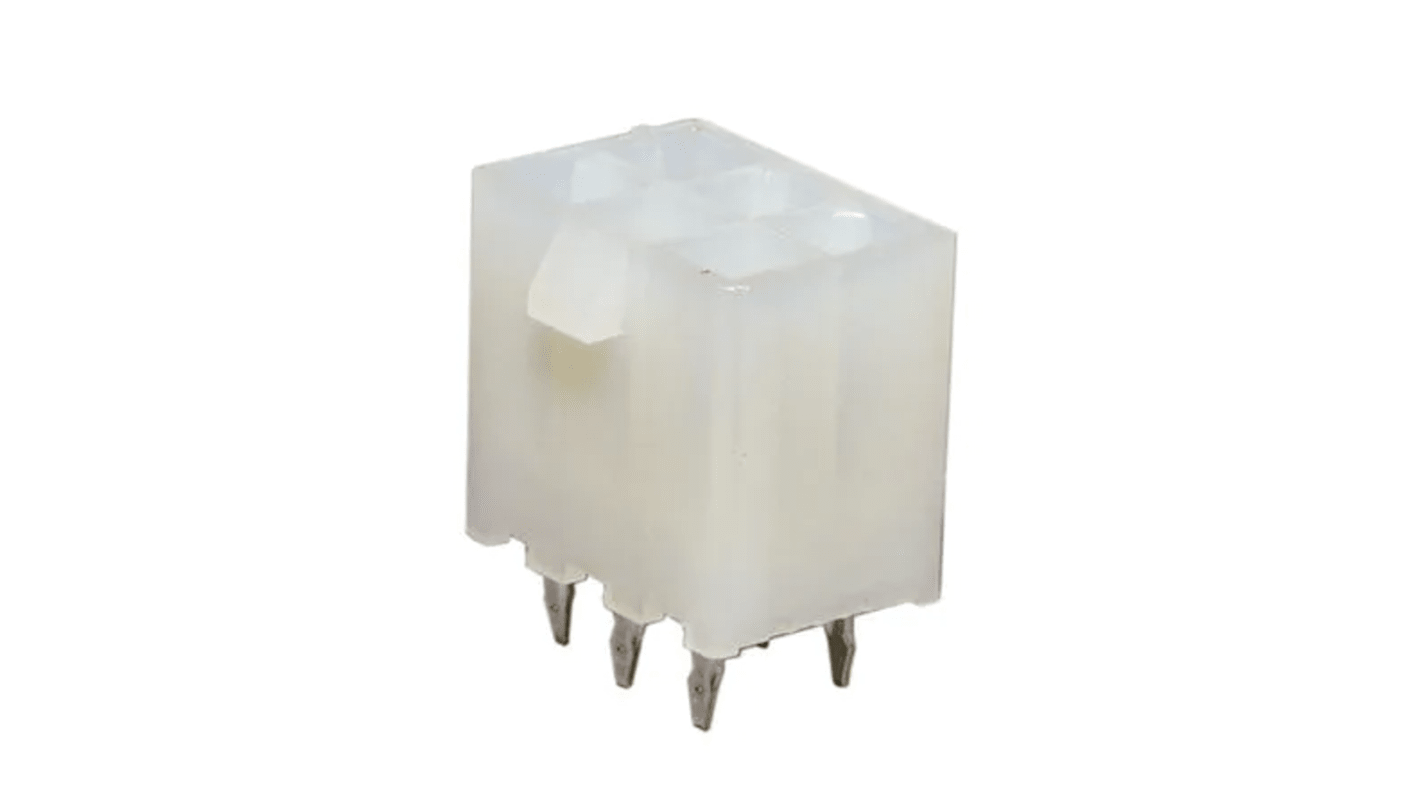

Image representative of range

View all PCB Headers
Bulk discount available

Subtotal (1 box of 1000 units)*

£481.00

(exc. VAT)

£577.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
1000 - 1000£0.481£481.00
2000 - 2000£0.457£457.00
3000 - 3000£0.433£433.00
4000 - 4000£0.409£409.00
5000 +£0.385£385.00

*price indicative

RS Stock No.:
189-1458
Mfr. Part No.:
39-28-1063
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

PCB Header

Series

Mini-Fit Jr

Pitch

4.2mm

Current

9A

Number of Contacts

6

Housing Material

Nylon

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Through Hole

Connector System

Wire-to-Board

Contact Plating

Tin

Contact Material

Brass

Row Pitch

4.2mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Contact Gender

Male

Tail Pin Length

3.5mm

Standards/Approvals

No

Voltage

600 V

COO (Country of Origin):
JP

Molex Mini-Fit Jr Straight PCB Header, 6 Way, 2 Rows - 5566 Series - 39-28-1063


Join up to six wires to a PCB (printed circuit board) using this straight PCB header from Molex. It has a compact 4.2mm pitch for use in tight spaces and can handle up to 9A of current per contact, making it a practical solution for medium-range power transfers. The six terminals are arranged in two rows to keep your connections organised and compact. Each contact is fully isolated to prevent electrical interference, ensuring more reliable transmission.

Features & Benefits


• Deep terminal design shields contacts from mishandling to prevent damage

• Designed for solder termination to ensure a secure connection in high-vibration applications

• Housing clicks when successfully locked in place to confirm a secure connection

• Polarised and keyed terminals ensure housing is mated correctly for optimal performance

Applications


• Office equipment

• Industrial automation equipment

• Rack-mount servers

• Routers and switches

What is this PCB header made of?


This PCB header is made of a tough nylon material that's resistant to wear and chemicals. Its contacts are made of corrosion-resistant tin-plated brass, making it a good choice for use in harsh industrial environments.
