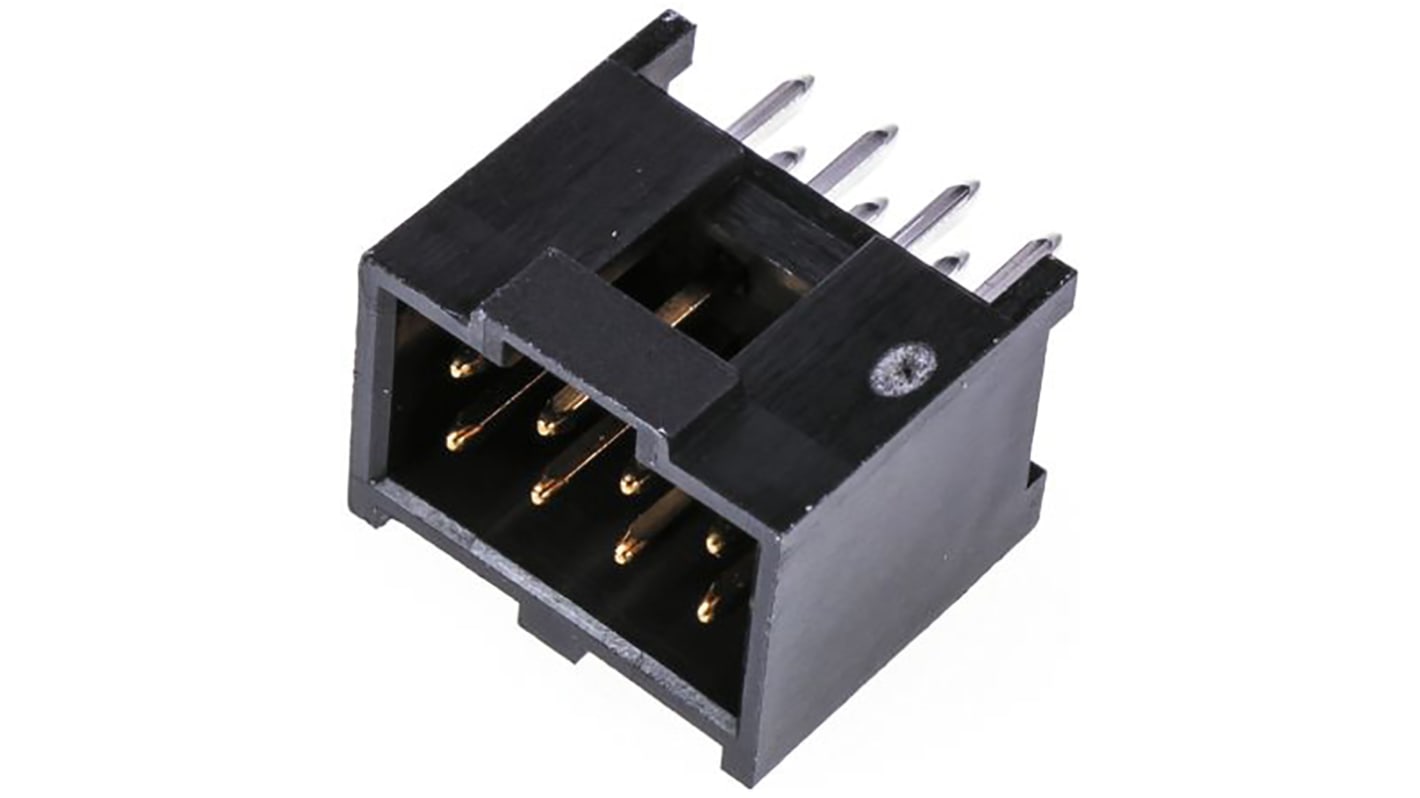

Molex C-Grid III Series Vertical Through Hole PCB Header, 8 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

Image representative of range

View all PCB Headers
Bulk discount available

Subtotal (1 tray of 208 units)*

£283.296

(exc. VAT)

£339.872

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
208 - 208£1.362£283.30
416 - 832£1.294£269.15
1040 - 1872£1.137£236.50
2080 +£1.091£226.93

*price indicative

RS Stock No.:
189-1411
Mfr. Part No.:
90130-1208
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

PCB Header

Series

C-Grid III

Pitch

2.54mm

Current

3A

Housing Material

Polyester

Number of Contacts

8

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Plating

Gold

Contact Material

Brass

Termination Type

Solder

Row Pitch

2.54mm

Minimum Operating Temperature

-55°C

Tail Pin Length

2.9mm

Contact Gender

Male

Maximum Operating Temperature

125°C

Mating Pin Length

6.75mm

Standards/Approvals

No

Voltage

350 V

Molex C-Grid III Series PCB Header, 3A Current Rating, 2.54mm Pitch - 90130-1208


This high-quality PCB header is designed for effective electrical connections across various applications. Its shrouded design and dual row configuration ensure secure connections for wire-to-board setups. With a 2.54mm pitch connector accommodating eight circuits, this header is suitable for use in automation, electronics, and electrical fields.

Features & Benefits


• Gold plating supports consistent mating performance

• Rated for 3A current and 350V voltage for demanding applications

• Compatible with through hole mounting for easy installation

Applications


• Used for signal connections in industrial automation

• Utilised in electronics for secure board interconnection

• Effective in wiring for various electrical devices

• Suitable for that require consistent voltage regulation

What type of connector is suitable for limited space?


The dual row layout allows for efficient use of space on PCBs.

How does plating impact connector performance?


Gold plating ensures reliable connections and resistance to corrosion.

What is the maximum operating temperature for this connector?


The connector operates effectively within the temperature range of -55°C to +125°C.

How many mating cycles can be expected?


The design supports up to 100 mating cycles for durability in regular use.

Standards

DIN 41651; HE13/14
