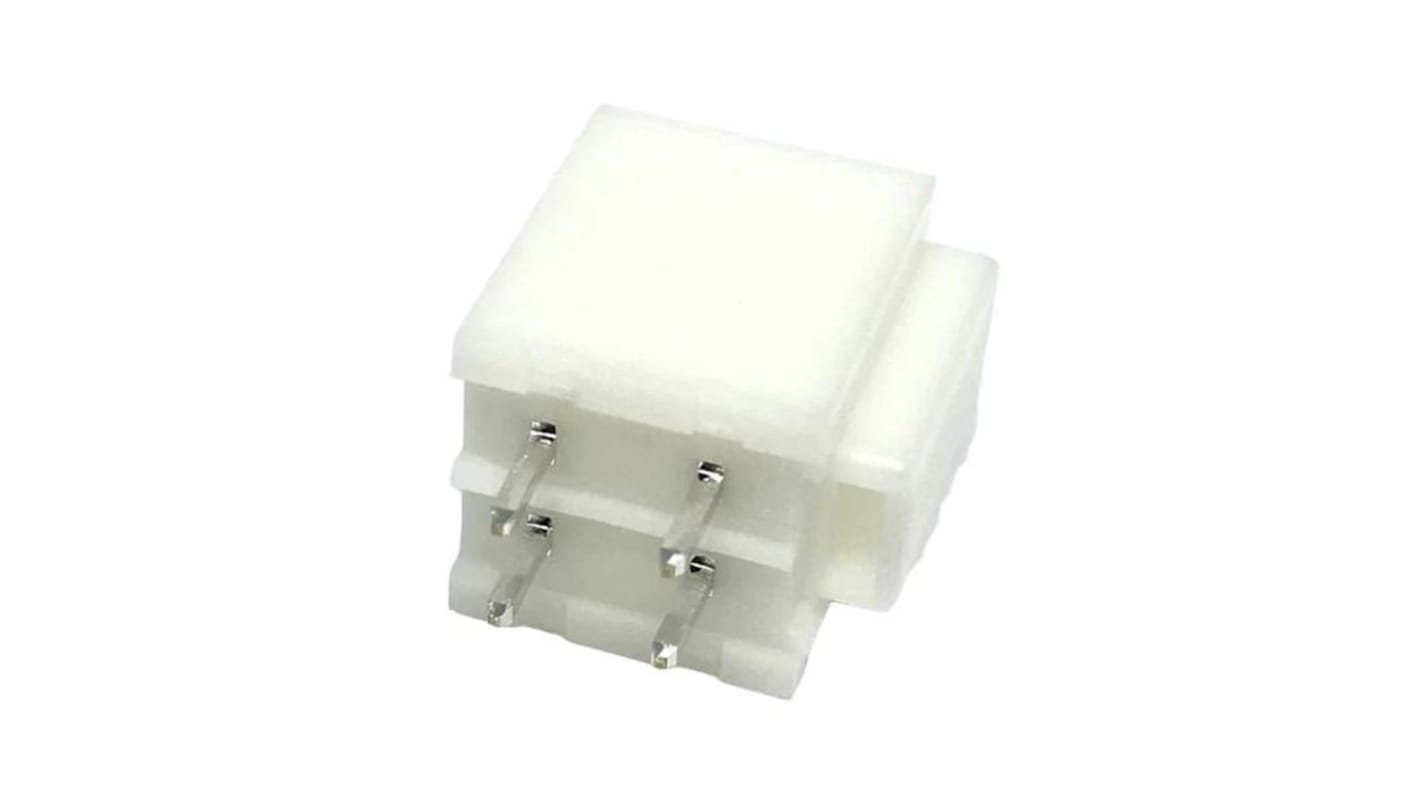

Hirose MDF6 Series Straight Through Hole PCB Header, 4 Contact(s), 3.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 184-6529
- Mfr. Part No.:
- MDF6-4DP-3.5DSA(05)
- Brand:
- Hirose
Discontinued
- RS Stock No.:
- 184-6529
- Mfr. Part No.:
- MDF6-4DP-3.5DSA(05)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Series | MDF6 | |
| Pitch | 3.5mm | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Contact Material | Brass | |
| Current Rating | 7.0A | |
| Voltage Rating | 300.0 V | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Series MDF6 | ||
Pitch 3.5mm | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Material Brass | ||
Current Rating 7.0A | ||
Voltage Rating 300.0 V | ||
- COO (Country of Origin):
- JP
3.5mm Pitch Miniature Double Row Connector for Secondary Power
Pitch 3.5mm Miniature Type
Current Capacity Secures 7A
Box Type Header
Inner Type Full Lock Adopted
Current Capacity Secures 7A
Box Type Header
Inner Type Full Lock Adopted
Miniature type with 3.5mm pitch A miniature, space-saving connector with a 3.5mm to 5mm pitch set in a double row alignment configuration.
7A Current Capacity Despite its small size as a power connector, the current capacity is rated at 7A when using 16 AWG wire.
Box Type Header The box type header is highly resistant to twisting forces and is polarized to prevent mis-insertions.
Internal Latch Mechanism The internal latch mechanism is designed to offer better protection from accidental un-matings and provides for a reliable and stable connection.
Applications
Secondary power units for various equipment
7A Current Capacity Despite its small size as a power connector, the current capacity is rated at 7A when using 16 AWG wire.
Box Type Header The box type header is highly resistant to twisting forces and is polarized to prevent mis-insertions.
Internal Latch Mechanism The internal latch mechanism is designed to offer better protection from accidental un-matings and provides for a reliable and stable connection.
Applications
Secondary power units for various equipment
