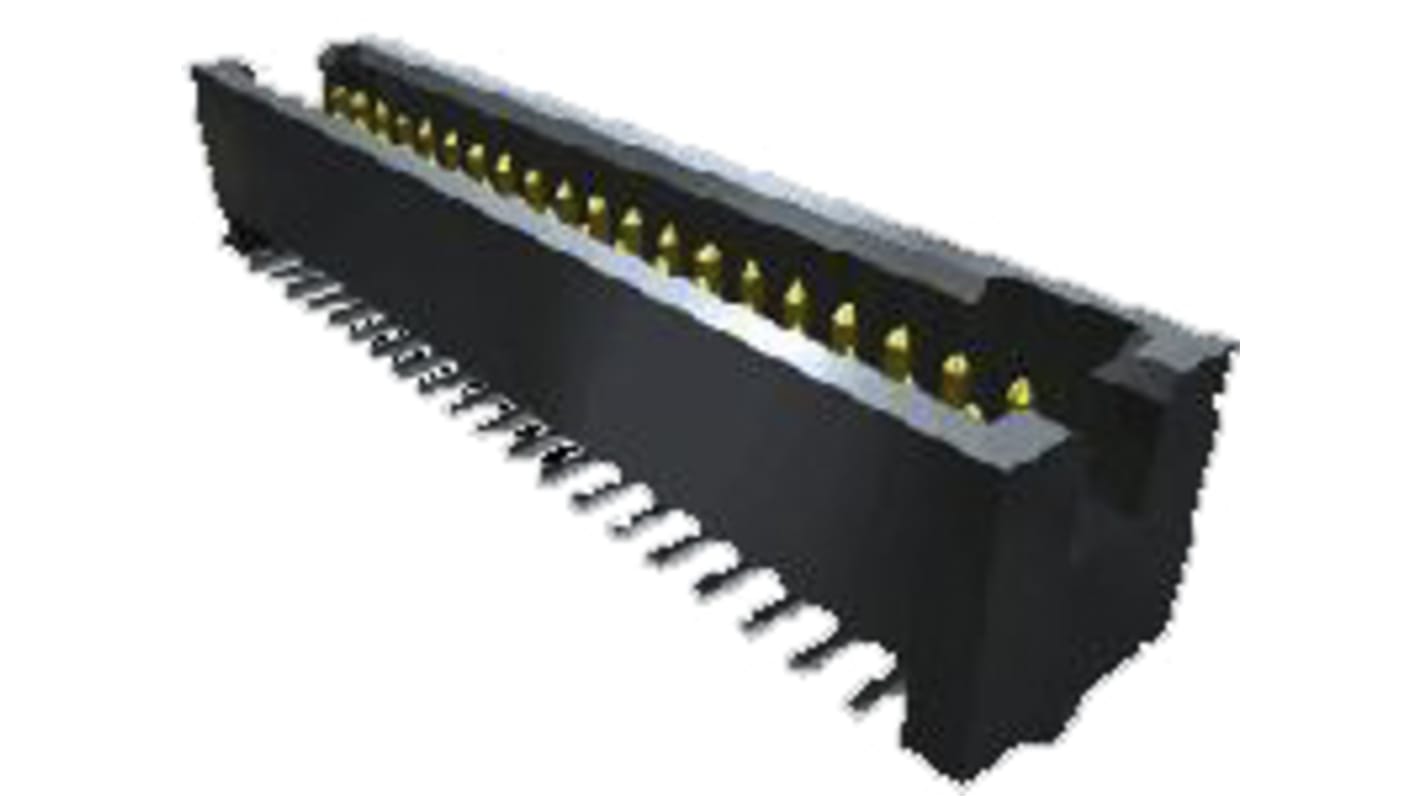

Samtec TFM, 50 Way, 2 Row, Straight PCB Header

  • RS Stock No. 180-3583
  • Mfr. Part No. TFM-125-01-L-D-WT
  • Brand Samtec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

This rugged Tiger Eye™ terminal strip features a multi-finger, BeCu contact system designed for high reliability and high cycle applications with surface mount or through-hole tails. Vertical or right-angle orientations for parallel, perpendicular and coplanar mating increase design flexibility, along with optional alignment pin, locking clip, dual screw down or weld tab for more rugged applications.

Shrouded body for blind mating
Pitch: .050" (1.27 mm)
Contact System: .018" (0.46 mm) diameter post
Orientation: Vertical, right-angle, horizontal
Termination: Through-hole, surface mount
Application: Mating with high-reliability Tiger Eye™ contact sockets and cable assemblies
Multiple stack heights
Special Features: Screw down, weld tab and solder nail options available for most rugged requirements
Extended Life Product™ (E.L.P.™)

Specifications
Attribute Value
Series TFM
Pitch 1.27mm
Number of Contacts 50
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Connector System Board to Board, Board to Cable
Mounting Type Through Hole
Termination Method Solder
Contact Material Phosphor Bronze
Contact Plating Gold
Current Rating 3.2A
14 In stock for FREE next working day delivery
Price Each (In a Tube of 14)
£ 4.986
(exc. VAT)
£ 5.983
(inc. VAT)
Units
Per unit
Per Tube*
14 +
£4.986
£69.804
*price indicative
