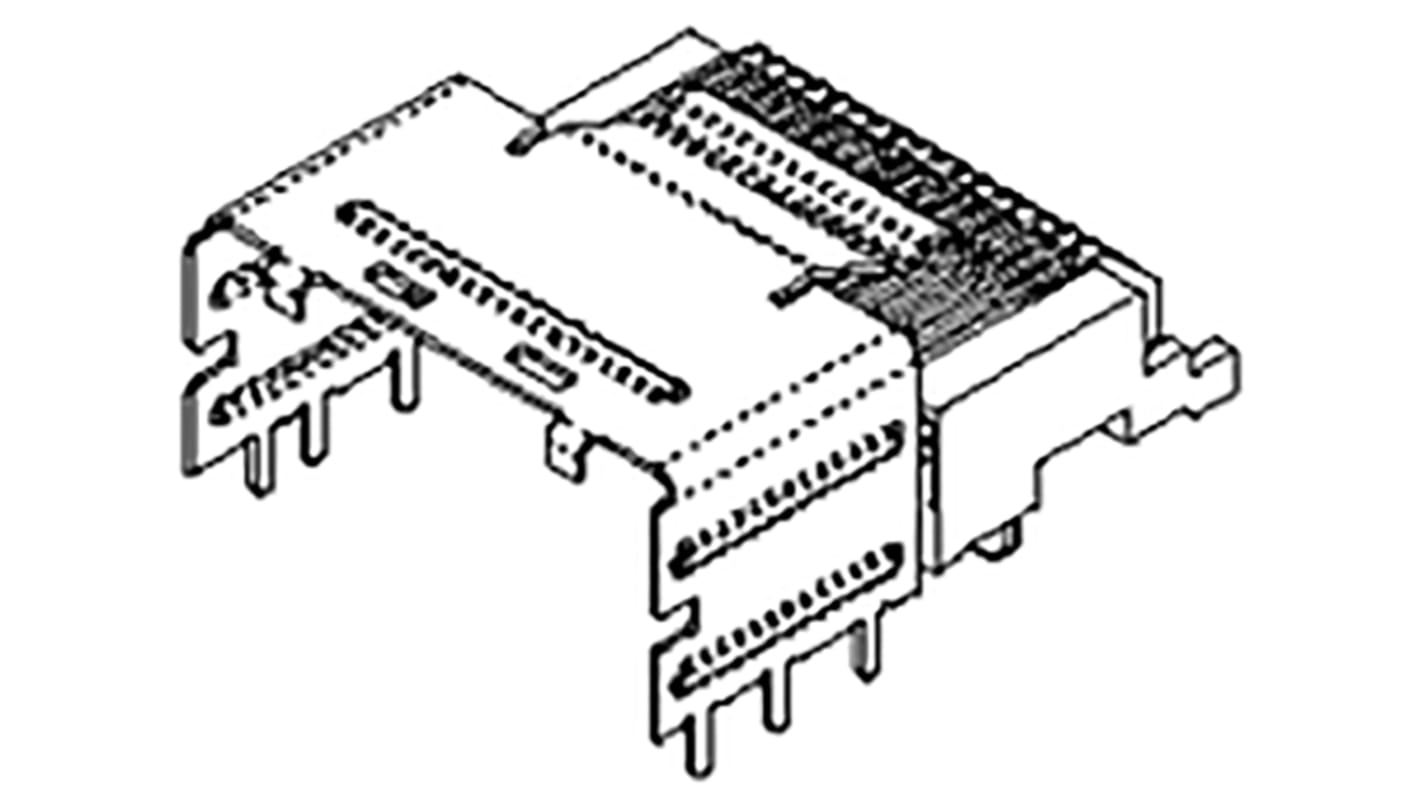

Molex iPass Series Right Angle Through Hole PCB Header, 36 Contact(s), 0.8 mm Pitch, 2 Row, Unshrouded
- RS Stock No.:
- 178-8793
- Mfr. Part No.:
- 75783-0140
- Brand:
- Molex
Subtotal (1 reel of 125 units)*
£551.00
(exc. VAT)
£661.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 125 + | £4.408 | £551.00 |
*price indicative
- RS Stock No.:
- 178-8793
- Mfr. Part No.:
- 75783-0140
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | iPass | |
| Product Type | PCB Header | |
| Current | 500mA | |
| Pitch | 0.8mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 36 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Copper Nickel Zinc Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 0.8mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 80°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-62-738 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series iPass | ||
Product Type PCB Header | ||
Current 500mA | ||
Pitch 0.8mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 36 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Material Copper Nickel Zinc Alloy | ||
Contact Plating Gold | ||
Row Pitch 0.8mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 80°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Voltage 30 V | ||
Distrelec Product Id 304-62-738 | ||
- COO (Country of Origin):
- CN
iPass I/O Surface Mount Receptacle, Right-Angle, Internal Assembly with Shell, 36 Circuit, 0.38μm Gold (Au), Through Hole Option, Tail Length 2.79mm, Universal Key
