Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 64 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 176-9906
- Mfr. Part No.:
- 61306428421
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 50 units)*
£215.40
(exc. VAT)
£258.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Bag* |
---|---|---|
50 - 50 | £4.308 | £215.40 |
100 - 200 | £4.002 | £200.10 |
250 + | £3.735 | £186.75 |
*price indicative
- RS Stock No.:
- 176-9906
- Mfr. Part No.:
- 61306428421
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Series | WR-PHD | |
Pitch | 2.54mm | |
Number of Contacts | 64 | |
Number of Rows | 2 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Unshrouded | |
Mounting Type | Through Hole | |
Connector System | Board to Board | |
Termination Method | Solder | |
Contact Plating | Gold | |
Contact Material | Copper Alloy | |
Series Number | 6130 | |
Current Rating | 3.0A | |
Mating Pin Length | 15.24mm | |
Voltage Rating | 250.0 V | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Series WR-PHD | ||
Pitch 2.54mm | ||
Number of Contacts 64 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Through Hole | ||
Connector System Board to Board | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Series Number 6130 | ||
Current Rating 3.0A | ||
Mating Pin Length 15.24mm | ||
Voltage Rating 250.0 V | ||
- COO (Country of Origin):
- TW

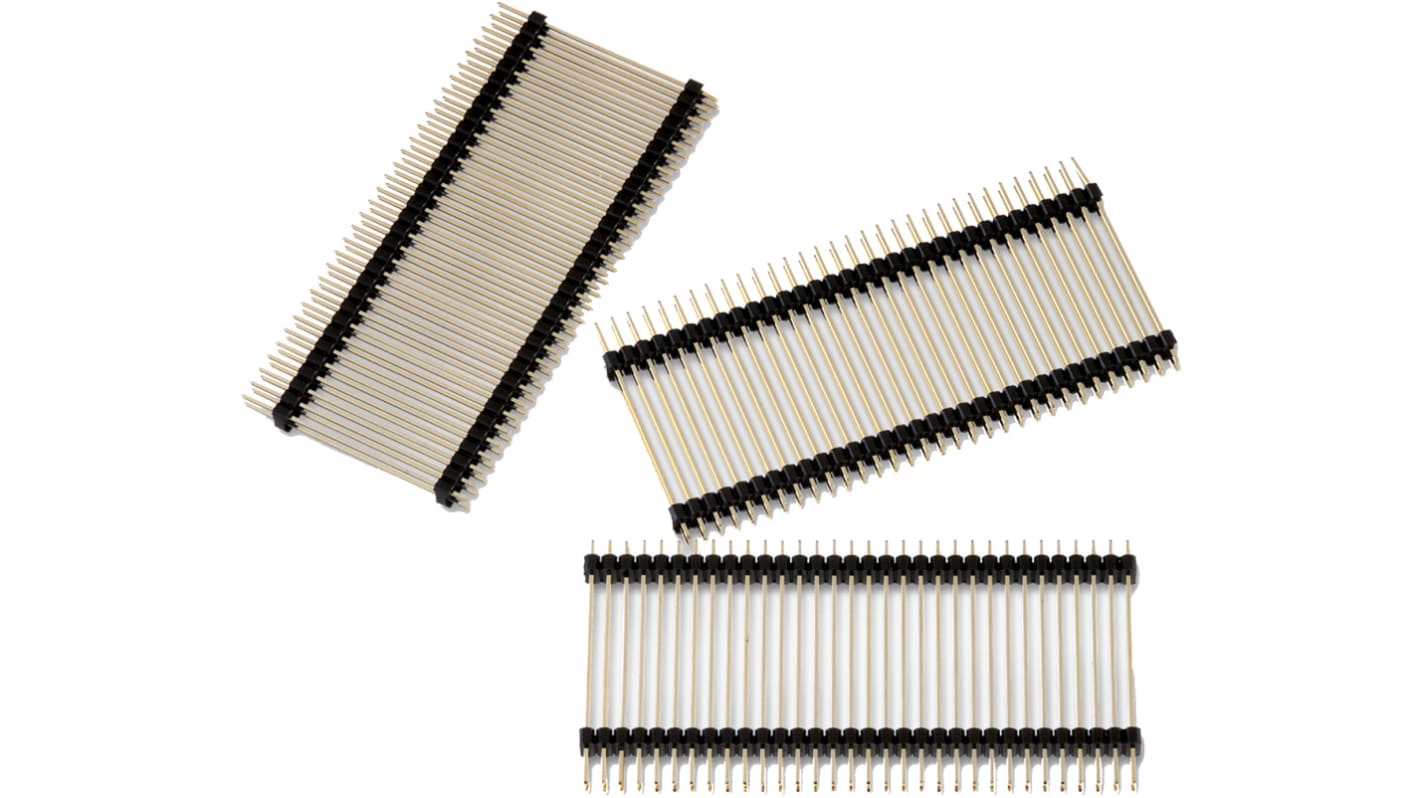

The Wurth Elektronik WR-PHD is a 64 pin, 2.54 mm, THT mount, pin header dual board stacker with gold contact plating. It has 500V AC withstanding voltage and 20mΩ contact resistance.
RoHS compliant
Copper alloy contact material
Operating temperature ranges between -40 up to +105 °C
25 mating cycles
Copper alloy contact material
Operating temperature ranges between -40 up to +105 °C
25 mating cycles
