HARWIN M40 Series Straight Surface Pin Header, 40 Contact(s), 1 mm Pitch, 2 Row(s), Unshrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 1 unit)*

£4.28

(exc. VAT)

£5.14

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
1 - 9£4.28
10 - 49£4.11
50 - 99£3.60
100 - 249£3.44
250 +£3.01

*price indicative

RS Stock No.:
161-3698
Mfr. Part No.:
M40-3202045R
Brand:
HARWIN
Find similar products by selecting one or more attributes.
Select all

Brand

HARWIN

Product Type

Pin Header

Series

M40

Pitch

1mm

Current

1A

Housing Material

Liquid Crystal Polymer

Number of Contacts

40

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Unshrouded

Connector System

Board-to-Board

Mount Type

Surface

Contact Material

Brass

Contact Plating

Gold

Termination Type

Solder

Minimum Operating Temperature

-25°C

Row Pitch

1mm

Contact Gender

Male

Maximum Operating Temperature

85°C

Standards/Approvals

No

Voltage

500 V

COO (Country of Origin):
CN

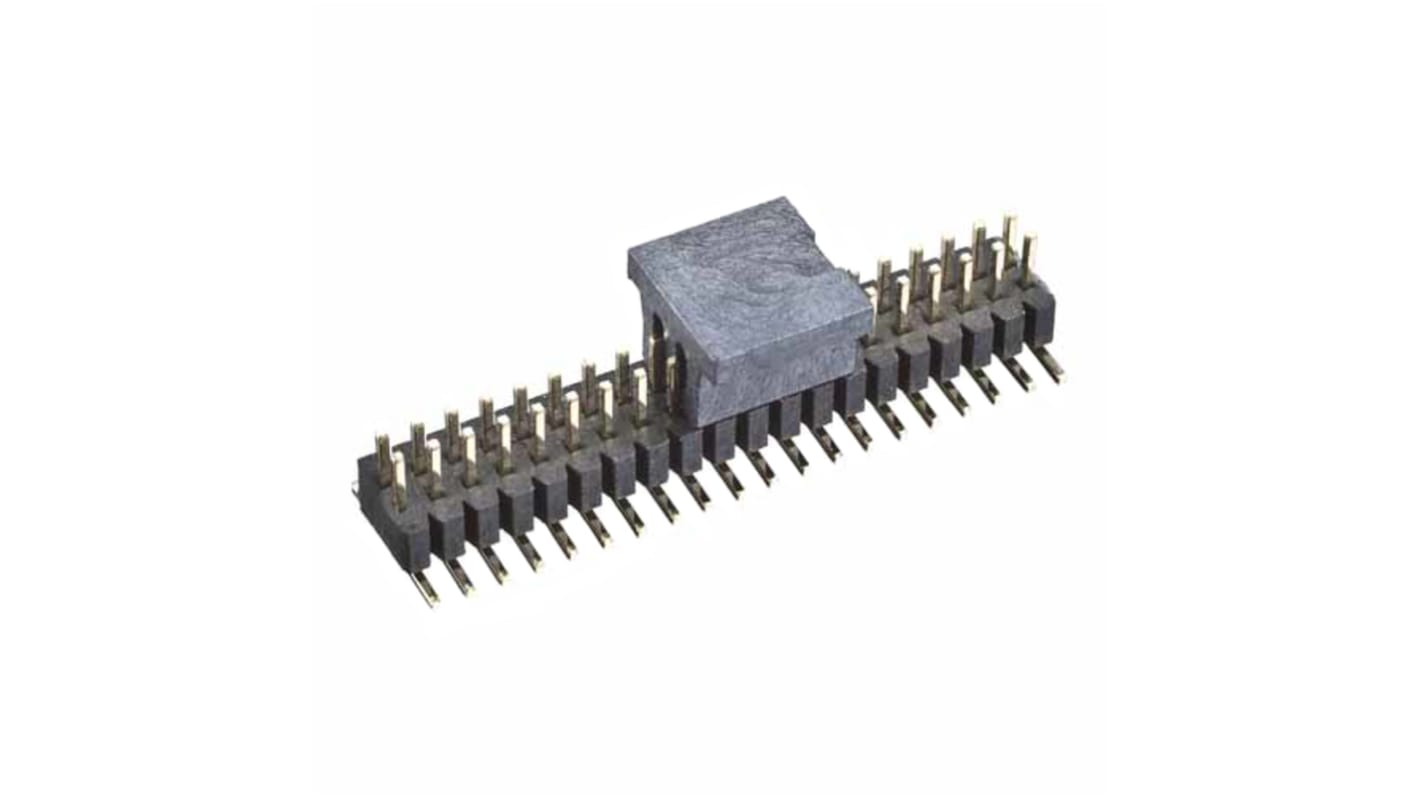

Double Row Male SMT with location pegs, 1.8mm mating pin height - 40 contacts (20+20).

Gold finish on contact area and termination.

Packaged in Tape & Reel, with Pick & Place caps.
