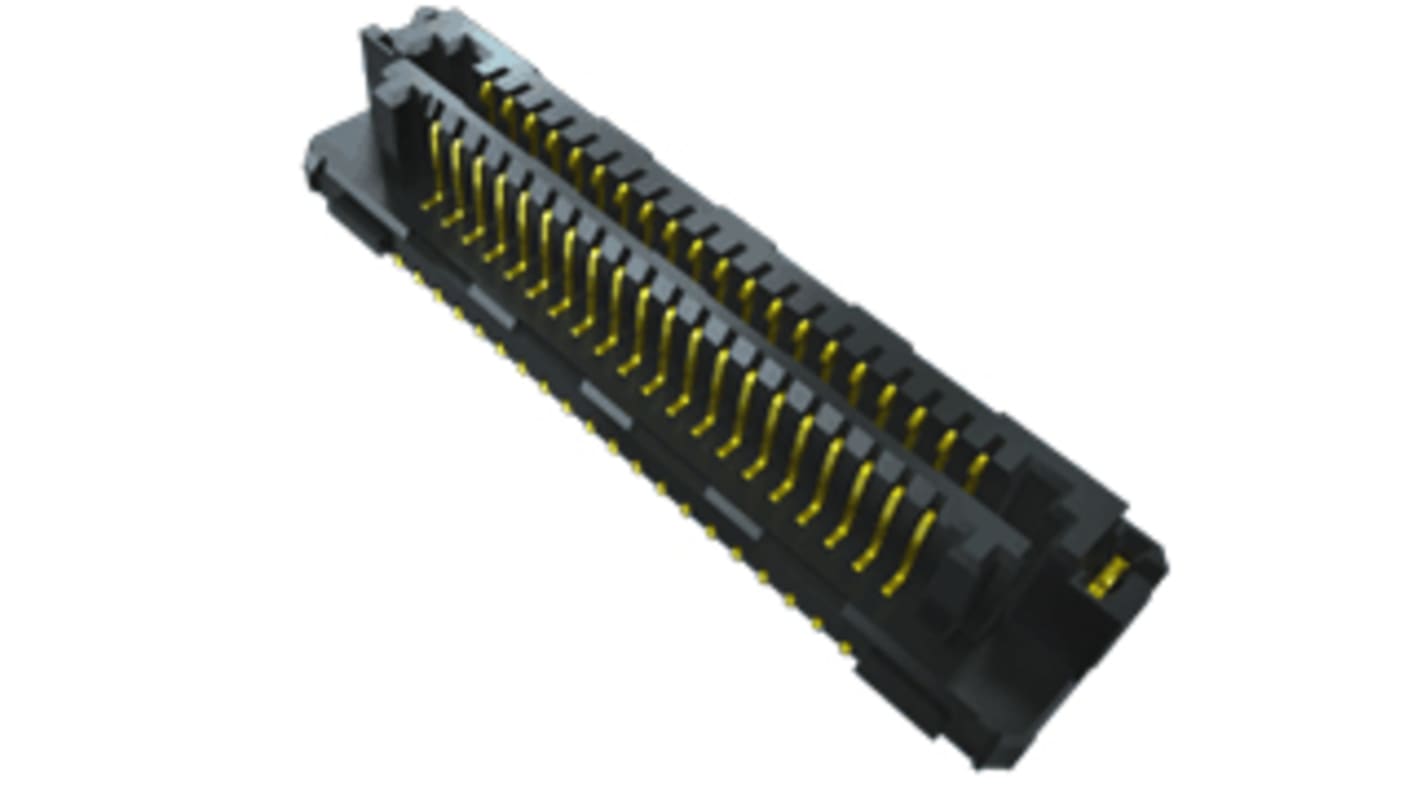

Samtec Razor Beam LSEM Series Straight Surface Mount PCB Header, 60 Contact(s), 0.8mm Pitch, 2 Row(s), Shrouded

View all PCB Headers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
158-7547
Mfr. Part No.:
LSEM-130-06.0-F-DV-A-N-K-TR
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Series

Razor Beam LSEM

Pitch

0.8mm

Number of Contacts

60

Number of Rows

2

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Board to Board

Mounting Type

Surface Mount

Termination Method

Solder

Contact Material

Phosphor Bronze

Contact Plating

Gold

Current Rating

1.8A

Voltage Rating

225.0 V

COO (Country of Origin):
US
0.80 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip

Six stack height options from 6.00 mm to 12.00 mm
Audible click when mated
Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
Self-mating system reduces inventory cost
Up to 100 I/Os
Vertical and right-angle orientations
Samtec 28+ Gbps Solution
