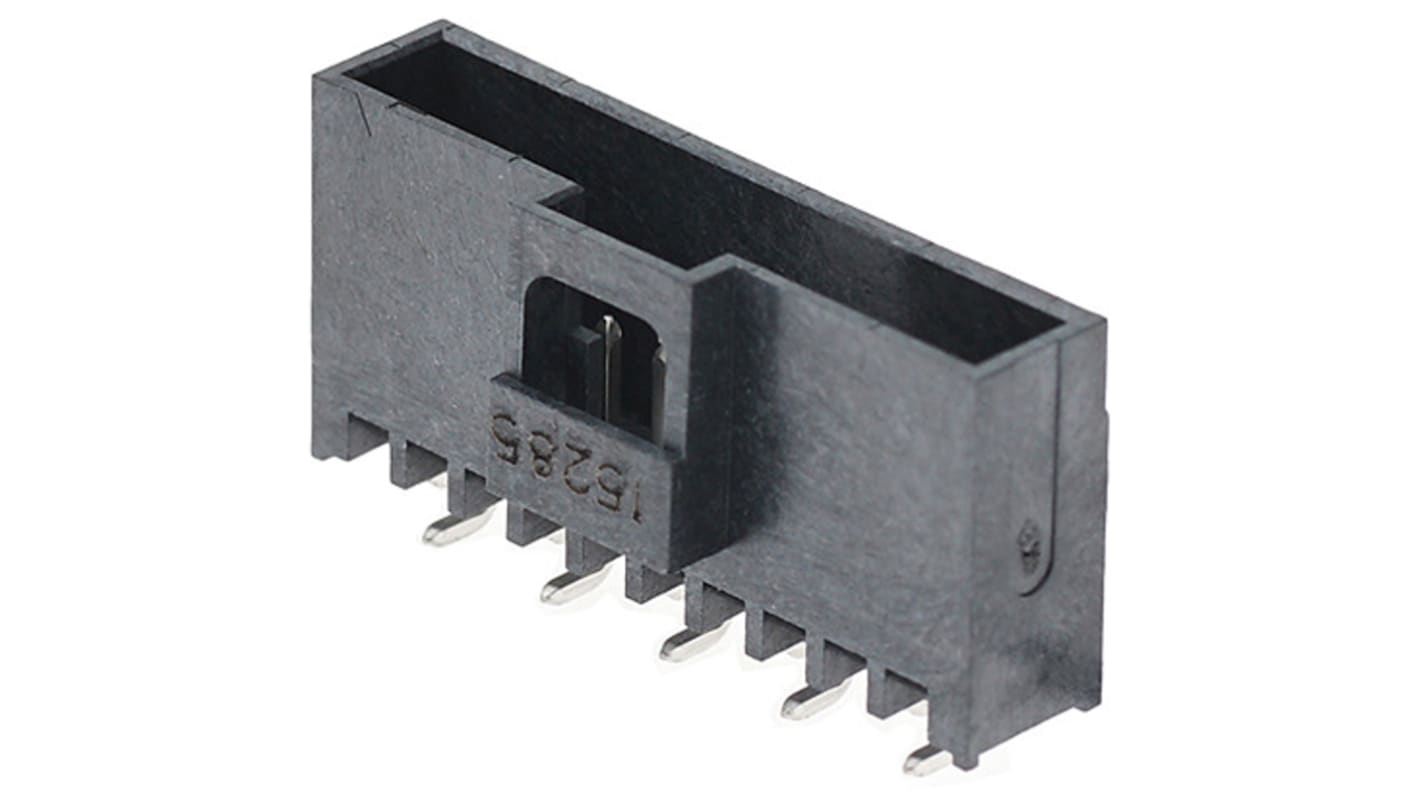

Molex Milli-Grid Series Straight Surface PCB Header, 10 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 5 units)*

£9.19

(exc. VAT)

£11.03

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£1.838£9.19
25 - 45£1.568£7.84
50 +£1.502£7.51

*price indicative

RS Stock No.:
123-8473
Mfr. Part No.:
151062-1060
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

PCB Header

Series

Milli-Grid

Pitch

2mm

Current

2.5A

Housing Material

Liquid Crystal Polymer

Number of Contacts

10

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Connector System

Wire-to-Board

Contact Material

Copper Alloy

Contact Plating

Tin

Minimum Operating Temperature

-40°C

Termination Type

Solder

Row Pitch

2mm

Contact Gender

Male

Maximum Operating Temperature

70°C

Standards/Approvals

No

Voltage

125 V

Distrelec Product Id

304-62-051

COO (Country of Origin):
SG

Molex Milli-Grid 2.0mm Single Row PCB Header Connectors with Positive Lock


Milli-Grid 2 mm Single Row PCB Header Connectors with Positive Lock

Single row Milli-Grid SMT and through hole mount PCB header connectors with a 2mm pitch for wire to board applications. The single row shrouded design of these 2.0mm Milli-Grid PCB headers offers space saving and protects the contacts from damage. These Milli-Grid header connectors feature an integral positive lock for a secure mating connection. Stock numbers 1238473 and 1238476 also feature retention pegs to keep the connector secured to the PCB before soldering

These Milli-Grid 2 mm PCB header connectors mate with the Milli-Grid 2 mm plug and receptacle housing connectors

Features and Benefits


Single row space saving design

Shrouded design protects contacts

Integral positive lock for secure mating connection

Versions with retention pegs to secure connector before soldering

Applications


These Milli-Grid 2 mm PCB header connectors are suitable for wire to board signal applications. Typical applications include data communications, telecommunications, networking and consumer and home appliances

Molex 2.0 mm Milli-Grid Interconnection System


The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals
