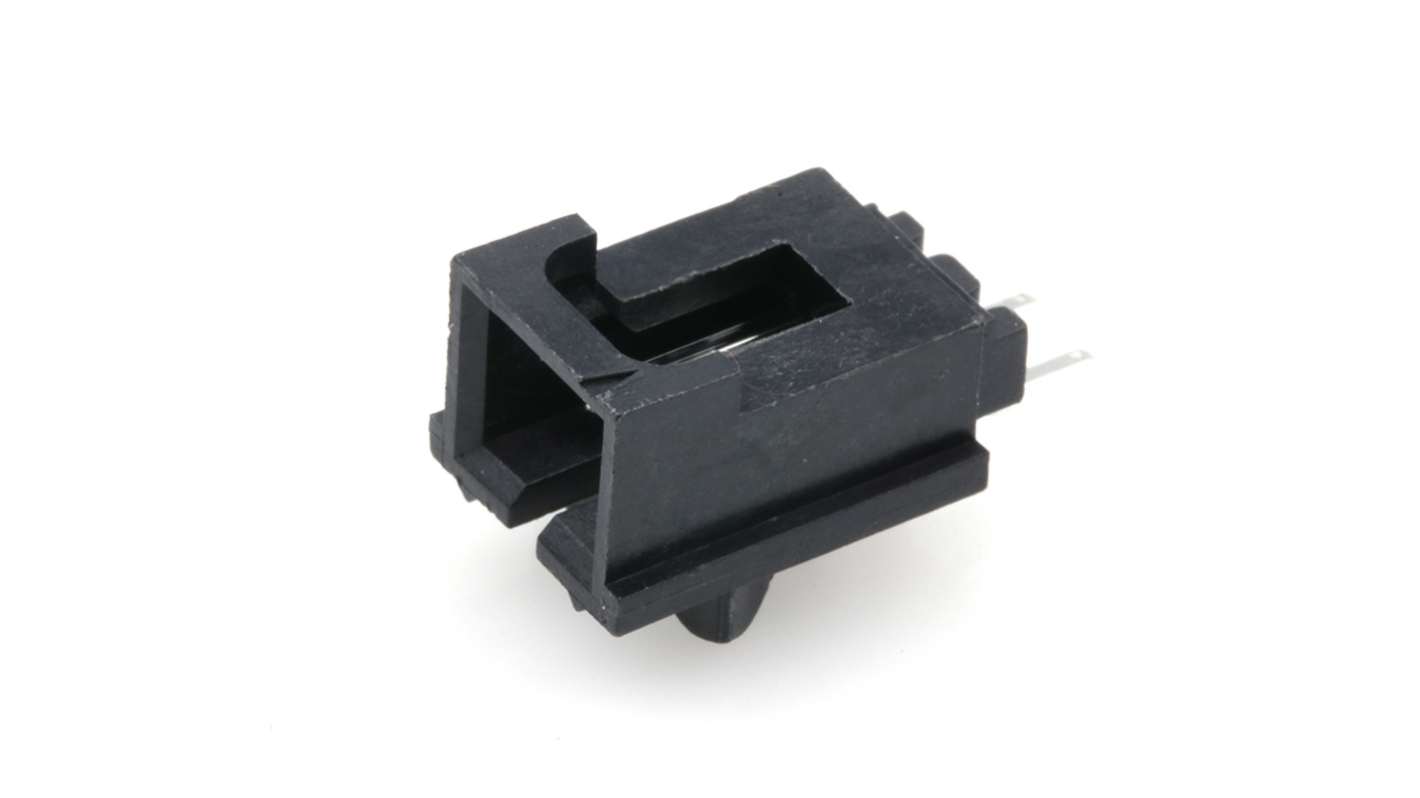

Molex 70634 Series Right Angle Surface PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-891
- Mfr. Part No.:
- 15-91-2025
- Brand:
- Molex
Subtotal (1 tube of 122 units)*
£368.94
(exc. VAT)
£442.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £368.94 | £3.024 |
*price indicative
- RS Stock No.:
- 684-891
- Mfr. Part No.:
- 15-91-2025
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 70634 | |
| Product Type | PCB Header | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 70634 | ||
Product Type PCB Header | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MY
The Molex SL Wire-to-Board Header is engineered to facilitate reliable electrical connections in demanding applications. This low-profile, surface mount connector offers a 2.54mm pitch and is equipped with a robust design featuring a right-angle orientation and a shrouded configuration for enhanced protection. Designed for signal applications, this component caters to a maximum current of 3.0A and a voltage rating of 250V, ensuring it meets various electronic requirements. With a durable construction featuring brass and phosphor bronze materials, along with compliant surface plating, it strikes the balance between functionality and longevity, making it an excellent choice for PCB headers and receptacles within various industries.
Shelf life maximized by tin PC tail plating, enhancing solderability
Guaranteed durability with up to 50 mating cycles for dependable performance
Integrated PCB retention features offer robust connection stability
Compatible with multiple crimp housings and female receptacles for versatility
