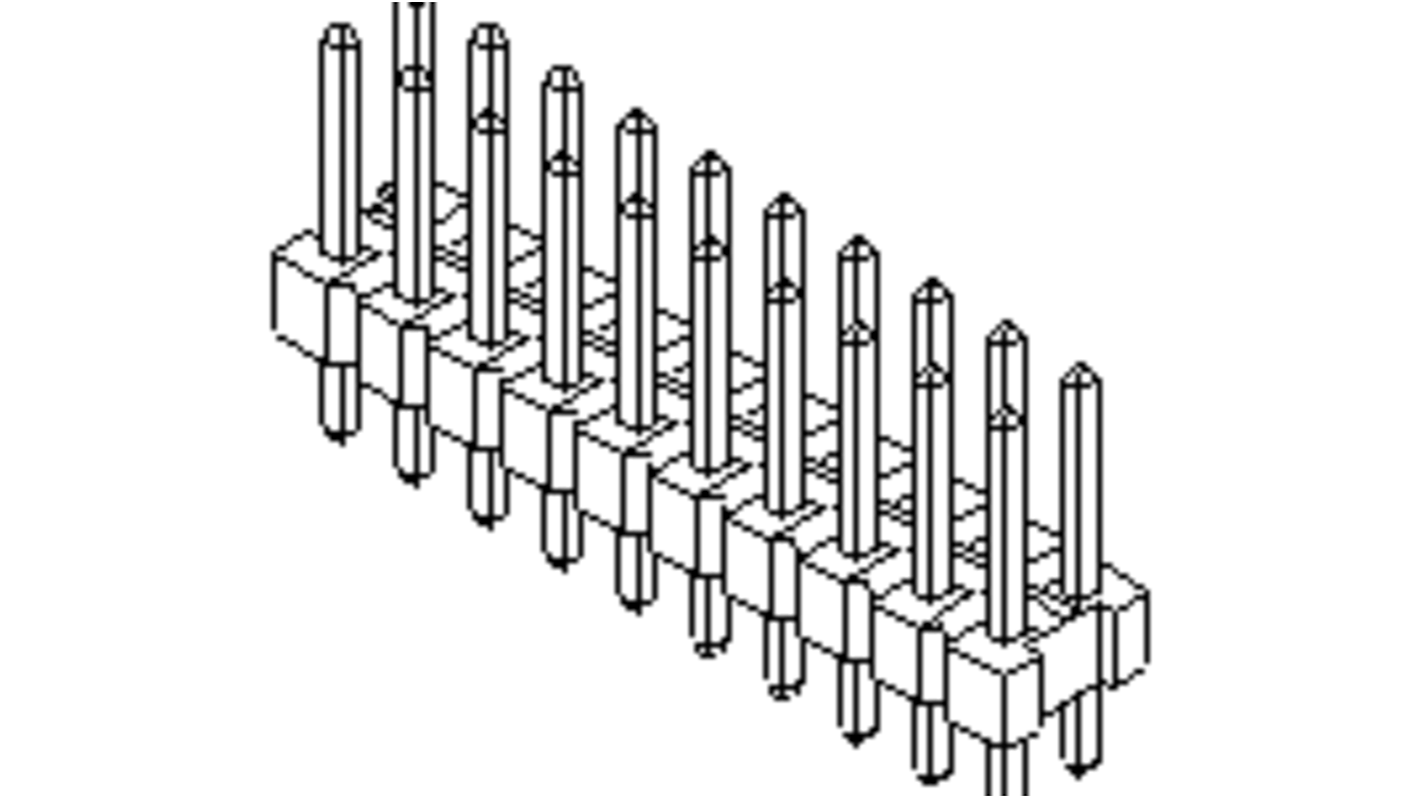

Molex 70280 Series Vertical PCB Mount PCB Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 bag of 400 units)*

£198.33

(exc. VAT)

£238.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£198.33£0.496

*price indicative

RS Stock No.:
684-564
Mfr. Part No.:
10-89-7201
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

70280

Pitch

2.54mm

Number of Contacts

20

Number of Rows

2

Body Orientation

Vertical

Shrouded/Unshrouded

Unshrouded

Mounting Type

PCB Mount

COO (Country of Origin):
MY
The Molex C-Grid Breakaway Header is engineered to facilitate reliable connections in PCB applications. This component features a 2.54mm pitch, high-temperature construction designed for vertical, dual-row assembly with 20 circuits. The breakaway style allows for flexible configurations, ensuring seamless integration in board-to-board and wire-to-board settings. Made from high-temperature thermoplastic and coated with durable tin plating, this product guarantees long-lasting performance. Its black resin colours enhances visibility while providing excellent resistance to various environmental factors. Suitable for various applications, including signal transfer, the C-Grid header embodies durability and precision in every connection.

Durability rating up to 25 mating cycles enhances product longevity
Low-halogen status complies with environmental regulations
Designed for a temperature range of -40° to +105°C, ensuring versatility
Compatible with various mating parts, including surface mount and through hole connectors
