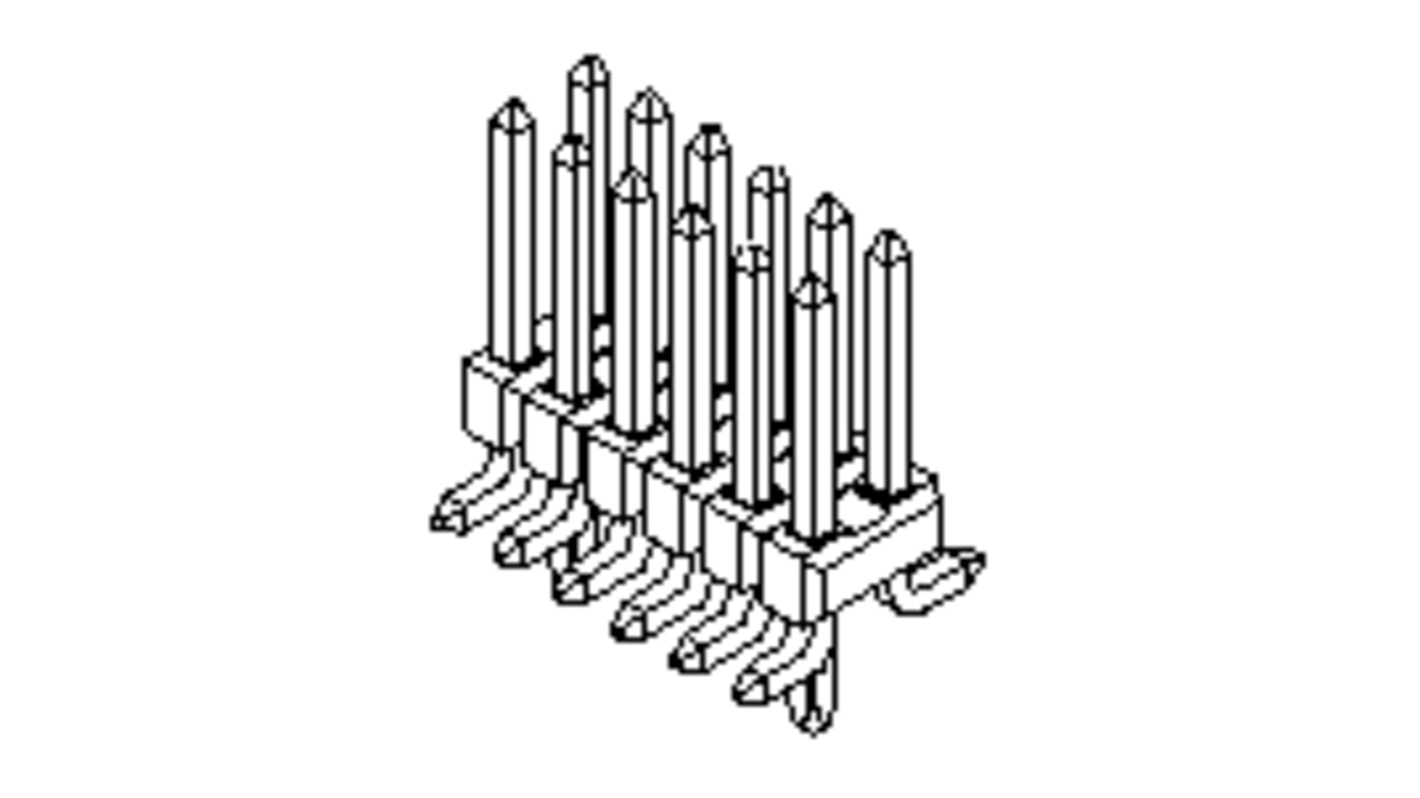

Molex 71308 Series Vertical Surface PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 684-003
- Mfr. Part No.:
- 15-91-6060
- Brand:
- Molex
Subtotal (1 reel of 500 units)*
£1,169.23
(exc. VAT)
£1,403.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,169.23 | £2.338 |
*price indicative
- RS Stock No.:
- 684-003
- Mfr. Part No.:
- 15-91-6060
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 71308 | |
| Product Type | PCB Header | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 6 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 71308 | ||
Product Type PCB Header | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 6 | ||
Housing Material Thermoplastic | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MY
The Molex C-Grid Breakaway Header is meticulously engineered for reliable connectivity in surface mount applications. Designed to accommodate up to six circuits in a dual-row configuration, this header is ideal for board-to-board, signal, and wire-to-board applications. With a 2.54mm pitch and crafted from high-temperature thermoplastic, the C-Grid assures durability and resilience. The component's tin plating ensures effective electrical performance, while its low-halogen status underscores a commitment to environmental compliance. This component is also engineered to endure up to 25 mating cycles, making it a robust choice for demanding electronics environments. Supplied on embossed tape and reel, the C-Grid is optimized for automated assembly, ensuring efficiency without compromising quality.
Supplied on embossed tape and reel for automated placement
Surface mount termination interface ensures easy integration
Stackable design allows for space-efficient configurations
Operating temperature range of -40° to +120°C accommodates diverse environments
