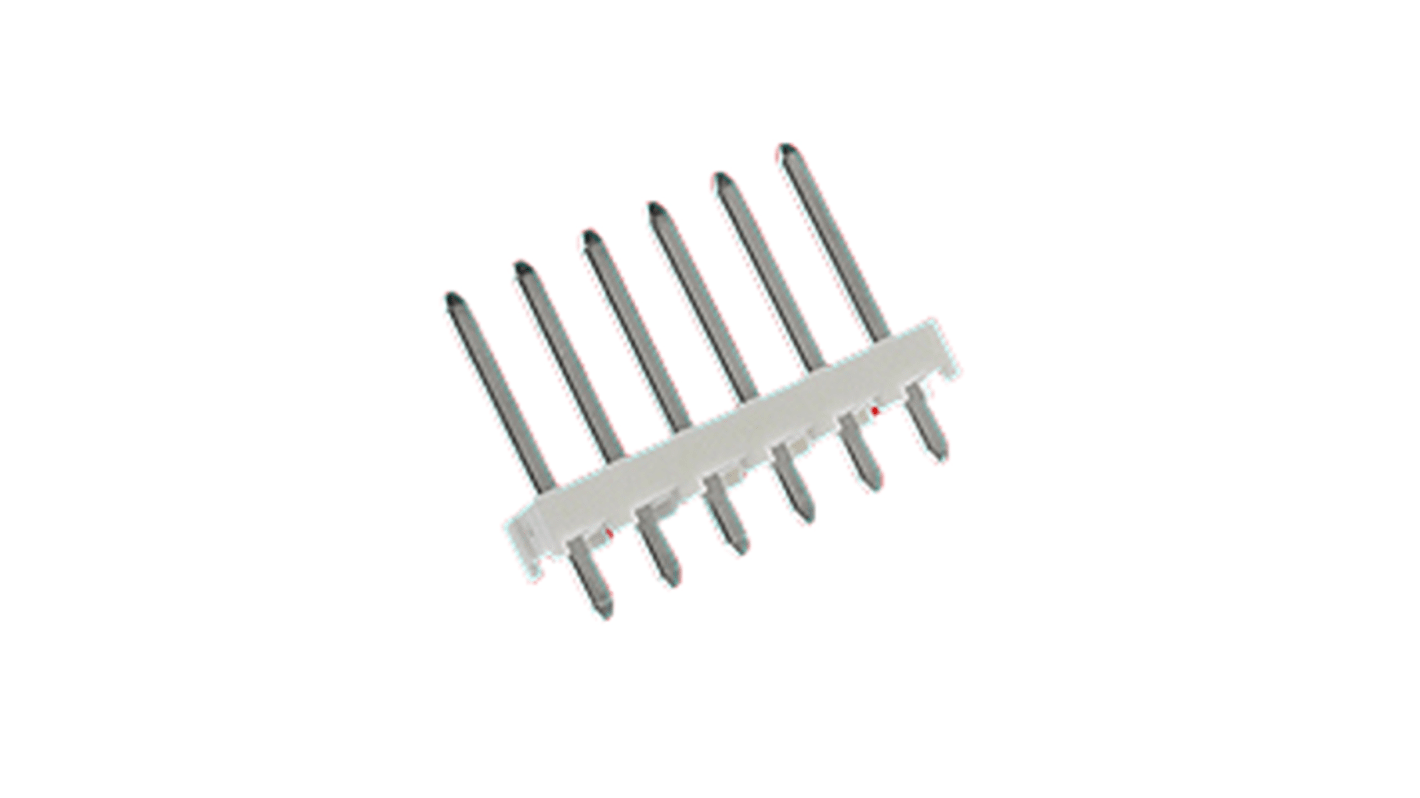

Molex 41771 Series Vertical PCB PCB Header, 10 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 683-753
- Mfr. Part No.:
- 26-61-2100
- Brand:
- Molex
Subtotal (1 bag of 80 units)*
£225.06
(exc. VAT)
£270.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £225.06 | £2.813 |
*price indicative
- RS Stock No.:
- 683-753
- Mfr. Part No.:
- 26-61-2100
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 41771 | |
| Pitch | 3.96mm | |
| Current | 7A | |
| Housing Material | Polyester | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.56mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 41771 | ||
Pitch 3.96mm | ||
Current 7A | ||
Housing Material Polyester | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Tail Pin Length 3.56mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- IN
The Molex KK 396 Header designed for efficient PCB interconnect solutions, ensuring reliable performance in applications requiring board-to-board, power, and wire-to-board connections. This vertical header facilitates seamless integration with a maximum of 10 circuits while offering robust gold plating for enhanced conductivity and durability. Engineered to support critical electronic functionalities, it combines a natural resin housing with brass metal components, making it ideal for a variety of environments. With its compact design and straightforward mounting via through-hole termination, this PCB header is an essential choice for optimising space and maintaining high durability in electronic designs.
Supports up to 10 circuits for efficient connectivity
Vertical orientation facilitates space saving designs
Gold plating enhances electrical conductivity and corrosion resistance
Constructed with brass for robust durability
Natural resin housing ensures reliable insulation and safety
Designed for through hole termination, simplifying assembly
Durability of 50 mating cycles ensures long term reliability
Maintains consistent performance across a wide temperature range
