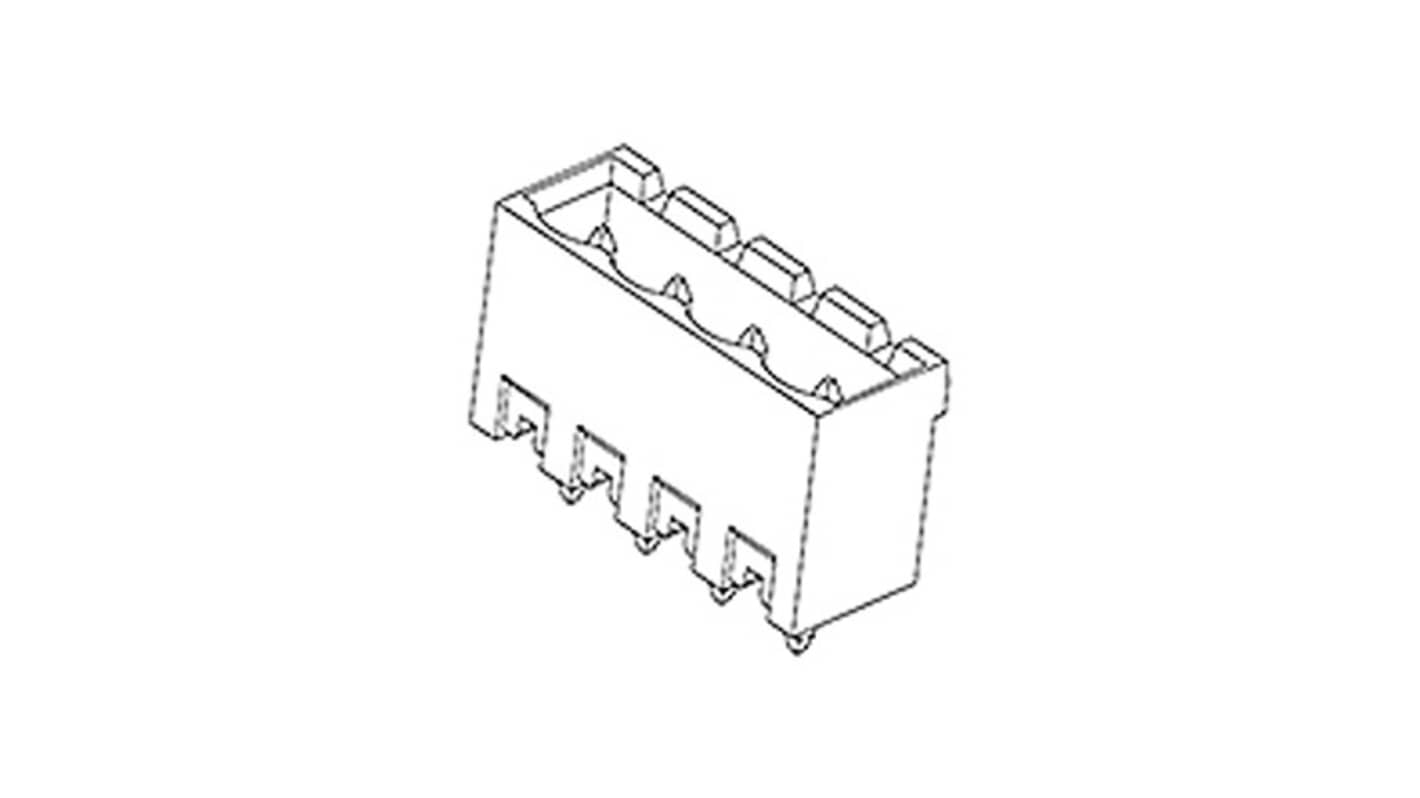

Molex 39521 Series Vertical PCB Mount PCB Header, 12 Contact(s), 5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 683-713
- Mfr. Part No.:
- 39521-1012
- Brand:
- Molex
Subtotal (1 pack of 60 units)*
£183.56
(exc. VAT)
£220.27
(inc. VAT)
Stock information currently inaccessible
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £183.56 | £3.059 |
*price indicative
- RS Stock No.:
- 683-713
- Mfr. Part No.:
- 39521-1012
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 39521 | |
Pitch | 5mm | |
Number of Contacts | 12 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | PCB Mount | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 39521 | ||
Pitch 5mm | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type PCB Mount | ||
- COO (Country of Origin):
- CN
The Molex Eurostyle Pluggable PCB Header is engineered for seamless wire-to-board connections, providing a reliable solution in robust applications. With a compact 5.00mm pitch design and 12 circuits, it ensures optimal space utilization while maintaining high performance. This header, designed to withstand extreme conditions, operates effectively within a temperature range of -40° to +105°C, making it suitable for diverse environments. Its vertical orientation and black resin colours ensure compatibility with industry-standard plugs, enhancing versatility. The product is compliant with EU RoHS and low-halogen requirements, ensuring environmental sustainability without compromising quality, positioning it as an ideal choice for modern electronic systems.
Features a shrouded design for secure connections and added safety
Constructed for a recommended PCB thickness of 3.20mm, facilitating easy integration
Meets EU RoHS compliance, supporting environmentally friendly practices
Low-halogen status enhances its suitability for eco-conscious projects
Constructed for a recommended PCB thickness of 3.20mm, facilitating easy integration
Meets EU RoHS compliance, supporting environmentally friendly practices
Low-halogen status enhances its suitability for eco-conscious projects
