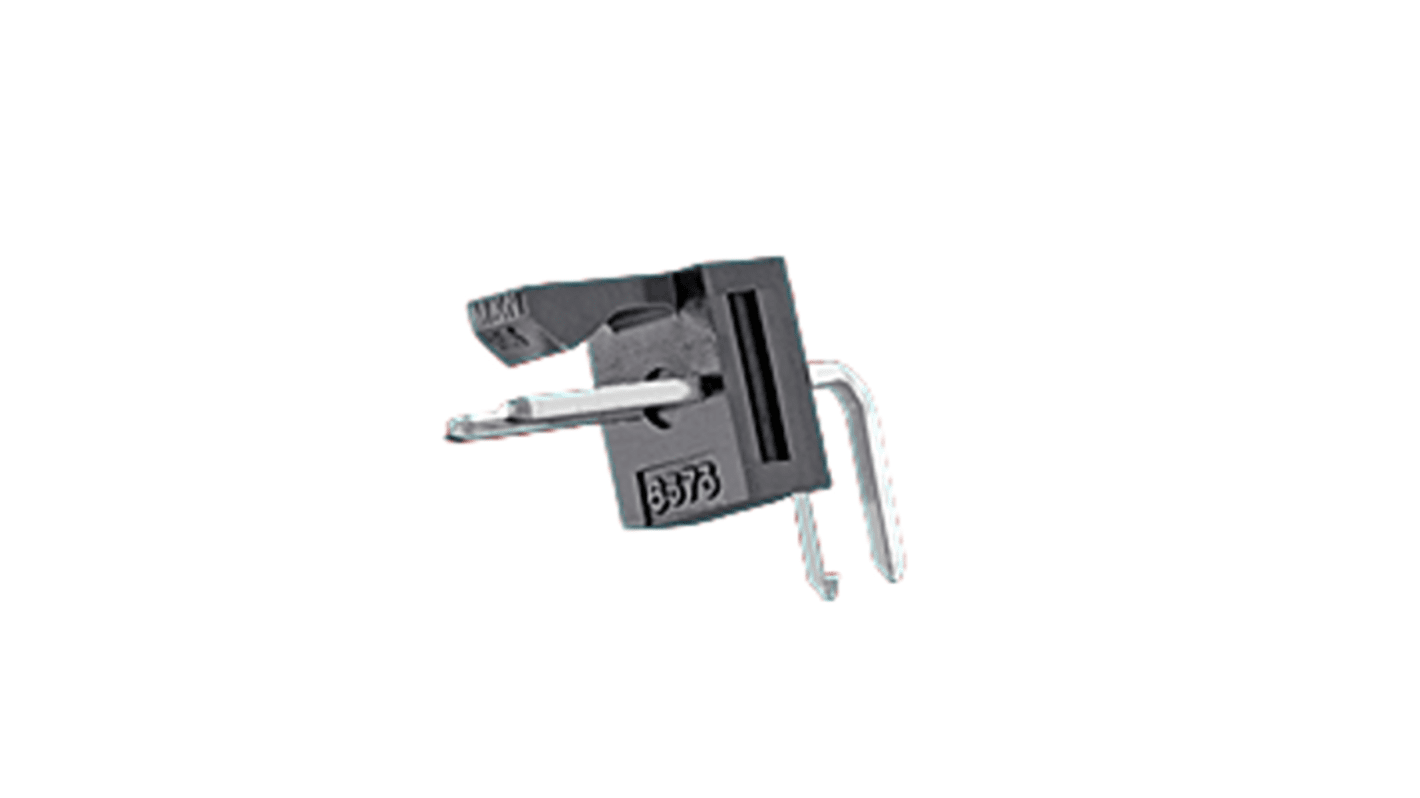

Molex 171857 Series Right Angle Through Hole PCB Header, 6 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 683-574
- Mfr. Part No.:
- 171857-1006
- Brand:
- Molex
Subtotal (1 bag of 200 units)*
£200.45
(exc. VAT)
£240.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £200.45 | £1.002 |
*price indicative
- RS Stock No.:
- 683-574
- Mfr. Part No.:
- 171857-1006
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 171857 | |
| Product Type | PCB Header | |
| Current | 4A | |
| Pitch | 2.54mm | |
| Housing Material | Nylon | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Voltage | 500V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 171857 | ||
Product Type PCB Header | ||
Current 4A | ||
Pitch 2.54mm | ||
Housing Material Nylon | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Voltage 500V | ||
- COO (Country of Origin):
- IN
The Molex KK 254 is a 2.54mm pitch wire-to-board right-angle header with friction lock designed for reliable connections in electronic applications. This product features a robust construction with 15μm gold plating, ensuring excellent conductivity and durability in challenging environments. With a configuration of 6 circuits, it is suited for power and signal transfer, making it an ideal choice for various PCB applications. The package design comes in a convenient bag, facilitating efficient handling and organization, while the exceptional temperature range of -40° to +105°C guarantees reliable performance across diverse operating conditions.
Mating interface pitch of 2.54mm provides standardized connection points for easy integration
Through-hole termination style allows for straightforward PCB mounting
Low-halogen status promotes environmental compliance and safety standards
Lightweight at just 0.786 grams ensures minimal impact on overall assembly weight
