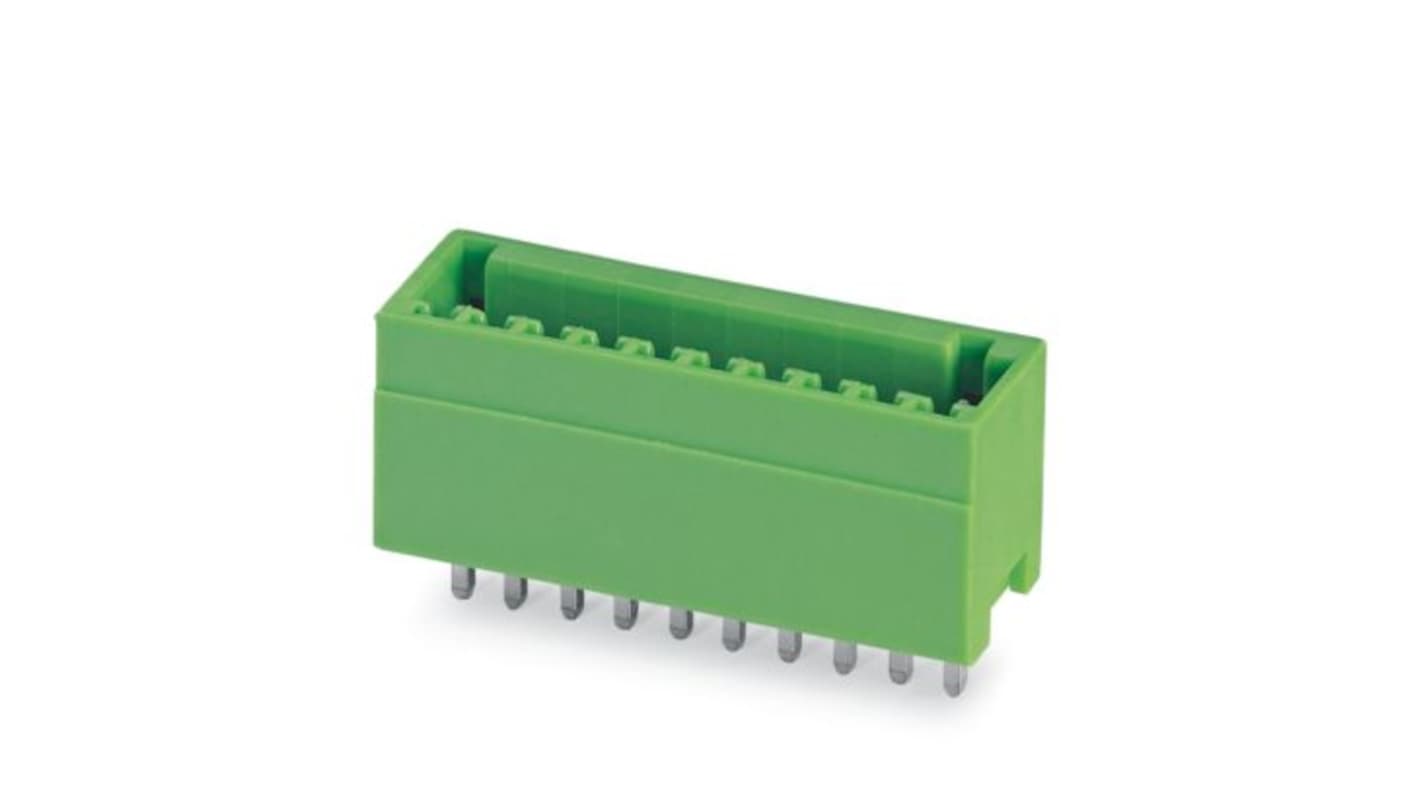

Phoenix Contact Solder PCB Header, 9 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 638-653
- Mfr. Part No.:
- 1881626
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£173.91
(exc. VAT)
£208.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £173.91 | £3.478 |
*price indicative
- RS Stock No.:
- 638-653
- Mfr. Part No.:
- 1881626
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Pitch | 2.5mm | |
| Current | 4A | |
| Number of Contacts | 9 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Solder | |
| Connector System | COMBICON FK MC 0.5 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | cULus Recognised, VDE report | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Pitch 2.5mm | ||
Current 4A | ||
Number of Contacts 9 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Solder | ||
Connector System COMBICON FK MC 0.5 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals cULus Recognised, VDE report | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header is designed to meet the rigorous demands of modern electronic applications, combining precision engineering with high performance. With a nominal cross-section of 0.5 mm² and a striking green colour, this component stands out in both functionality and aesthetics. Capable of handling a nominal current of 4 A and a rated voltage of 160 V, it provides reliability for various electrical connections. Its innovative design allows for wave soldering, making installation simple and efficient.
WEEE and RoHS compliant materials contribute to environmental sustainability
Compact dimensions make it suitable for space constrained PCB layouts
Includes a flammability rating according to UL 94 V0 for enhanced safety
Effective insulation resistance reduces the risk of electrical failure
