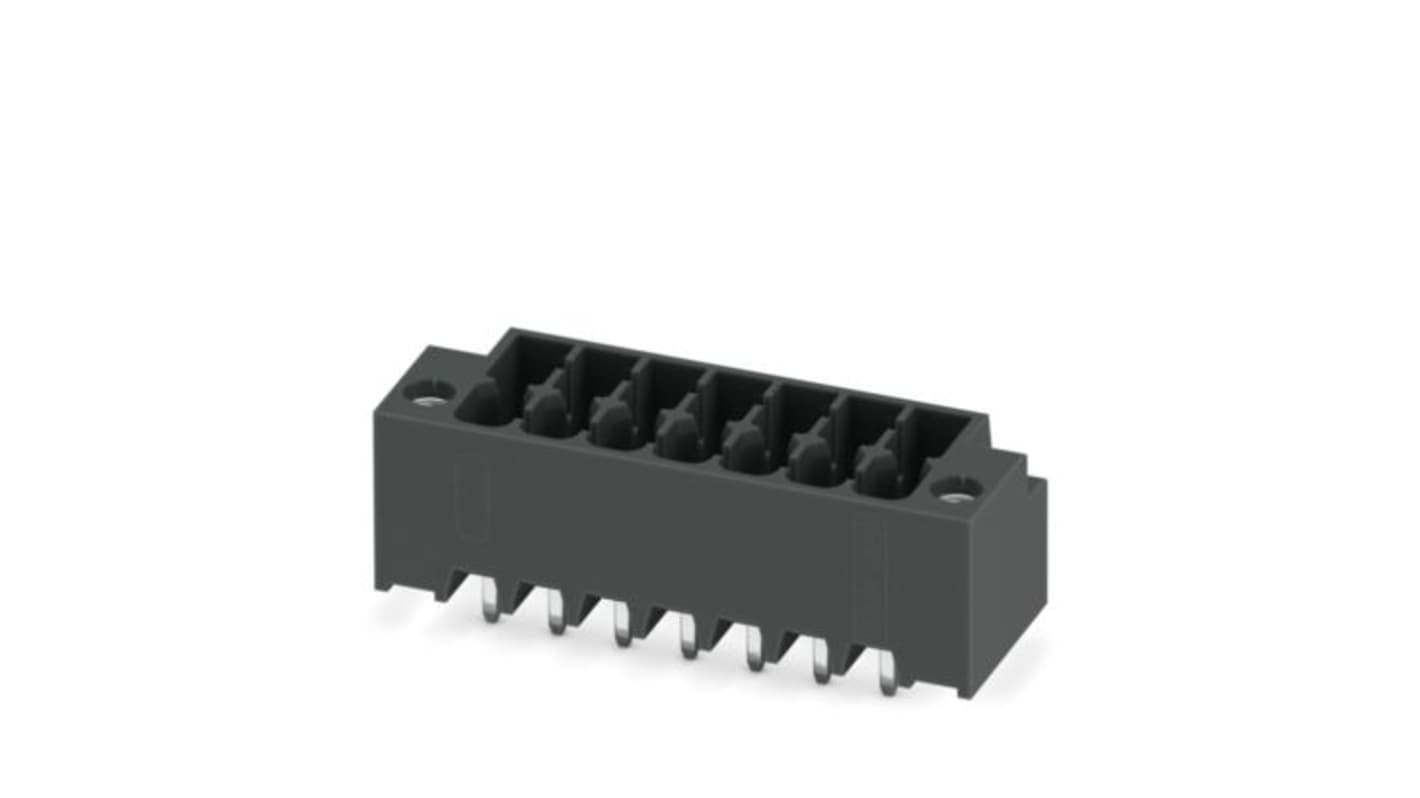

Phoenix Contact Wave Soldering Mount PCB Header, 14 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£327.74

(exc. VAT)

£393.29

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£327.74£6.555

*price indicative

RS Stock No.:
638-564
Mfr. Part No.:
1787441
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Pitch

3.5mm

Current

8A

Housing Material

Liquid Crystal Polymer

Number of Contacts

14

Number of Rows

2

Shrouded/Unshrouded

Unshrouded

Connector System

COMBICON DFMC 1.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

3.5mm

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

2mm

Mating Pin Length

2mm

Standards/Approvals

CSA, cULus, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, VDE

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header is designed to provide reliable connectivity in compact electronic applications. This product combines efficient engineering with a robust design, ensuring optimal performance under various environmental conditions. The innovative Lock & Release threaded flange enhances mechanical stability, while the tin-plated contact surface promotes superior conductivity. Perfectly suited for wave soldering processes, it's a go-to choice for industries that demand precision and reliability. This product emerges as an exceptional solution for modern electronic applications, seamlessly blending functionality and convenience.

Compact size optimises space utilisation in cramped setups

Constructed from durable materials ensuring long lasting performance

Exemplifies WEEE and RoHS compliance supporting environmentally friendly practices

Meets rigorous standards such as IEC and UL for peace of mind during use
